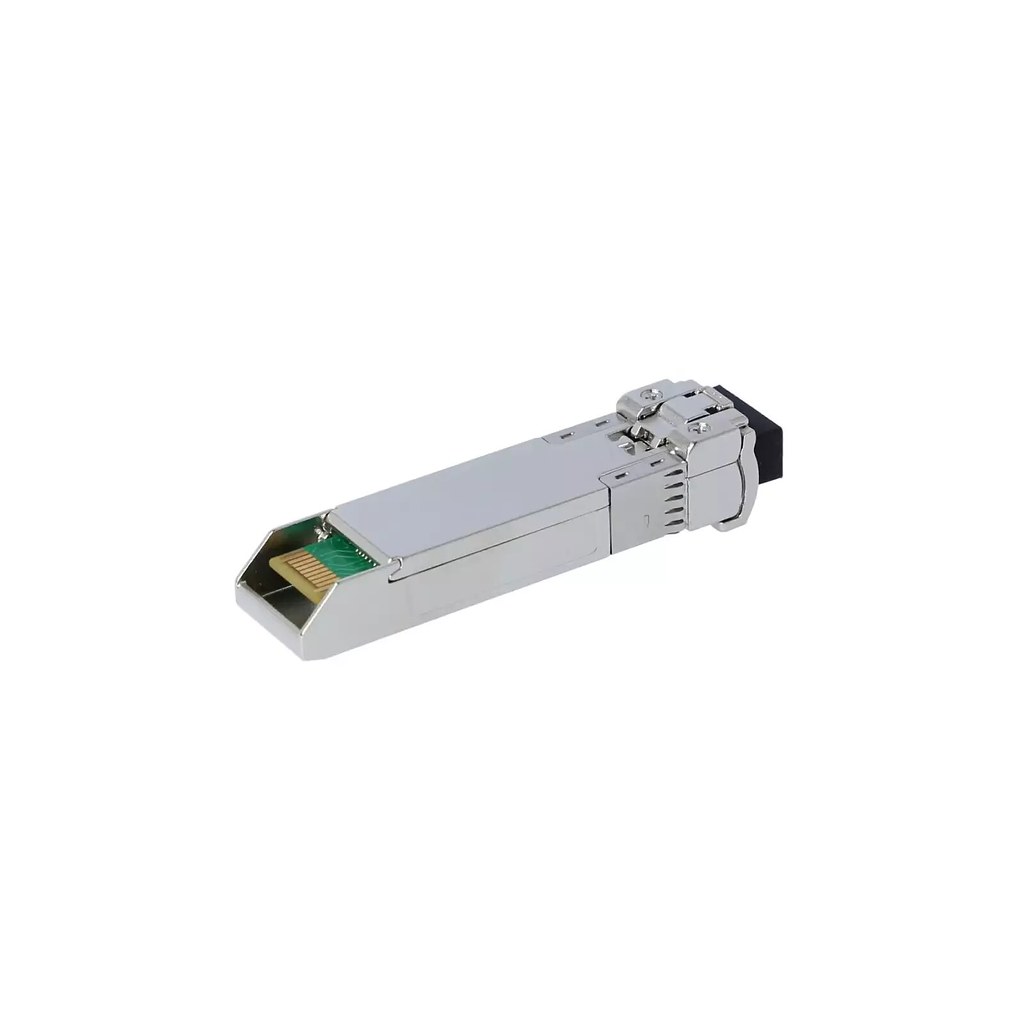

The Transceiver Huawei compatible SFP+ M-Mode LC-Duplex 10GBASE-SR 300M is an advanced optical fiber transceiver module crafted for 10 Gigabit Ethernet applications. With a data transmission rate of up to 10 Gbps, it ensures efficient communication over multimode fiber (MMF) cables, reaching up to 300 meters.

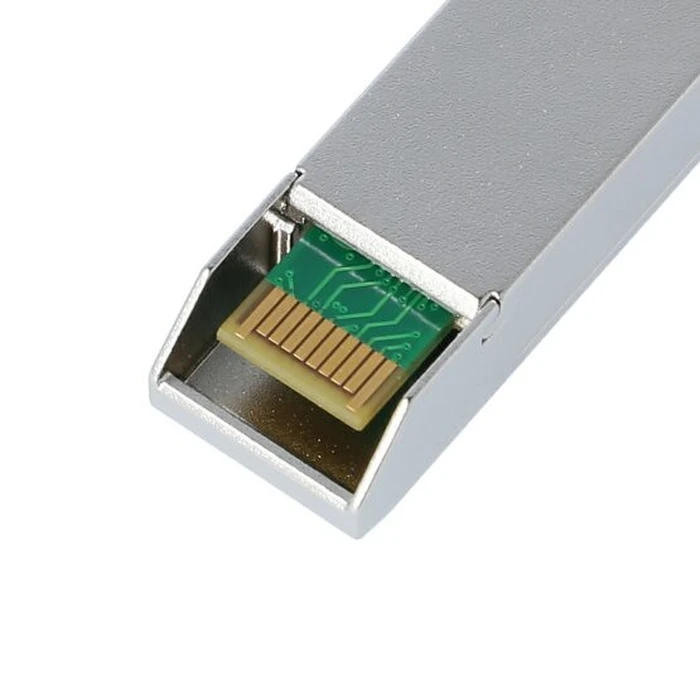

Featuring a Small Form-factor Pluggable (SFP+) interface, the module employs a reliable dual LC duplex connector. It utilizes a VCSEL transmitter operating at 850 nm, coupled with a PIN photodiode receiver for optimal signal transmission and reception.
- Data Rate: 1.25 – 10.31 Gbps
- Standard: 10GBASE-SR compliant with IEEE 802.3ae
- Fiber Type: Multimode Fiber (MMF)
- Maximum Reach: Up to 300 meters
- Connector Type: LC duplex
This module is effective in diverse environments including Internet Service Provider (ISP) infrastructures and data centers. Its low power consumption, compliance with industry standards, and compatibility with various devices make it a preferred option for high-speed optical links.
Additionally, the module offers real-time diagnostic monitoring (DDM/DOM), allowing monitoring of critical operating conditions, thereby enhancing the reliability and efficiency of network maintenance.
In summary, the Huawei compatible OMXD30000 SFP+ 10GBASE-SR transceiver is a dependable solution for high-speed networking needs over multimode fiber.
-
Data Rate1.25 – 10.31 Gbps
-
Standard10GBASE-SR (IEEE 802.3ae compliant)
-
Fiber TypeMultimode Fiber (MMF)
-
Maximum Reach300 meters
-
Connector TypeLC duplex
-
Wavelength850 nm
-
Transmitter Optical Power-7.3 dBm (min) to -1.0 dBm (max)
-
Receiver Sensitivity-11.1 dBm
-
Optical Budget4.6 dB
-
Temperature Range0°C to +70°C
-
Power ConsumptionLess than 1 W
-
Supports DiagnosticsDigital Diagnostic Monitoring (DDM/DOM) supported
-
Form FactorSFP+ compliant (Multi-Source Agreement)
Ratings
Description
The Transceiver Huawei compatible SFP+ M-Mode LC-Duplex 10GBASE-SR 300M is an advanced optical fiber transceiver module crafted for 10 Gigabit Ethernet applications. With a data transmission rate of up to 10 Gbps, it ensures efficient communication over multimode fiber (MMF) cables, reaching up to 300 meters.
Featuring a Small Form-factor Pluggable (SFP+) interface, the module employs a reliable dual LC duplex connector. It utilizes a VCSEL transmitter operating at 850 nm, coupled with a PIN photodiode receiver for optimal signal transmission and reception.
- Data Rate: 1.25 – 10.31 Gbps
- Standard: 10GBASE-SR compliant with IEEE 802.3ae
- Fiber Type: Multimode Fiber (MMF)
- Maximum Reach: Up to 300 meters
- Connector Type: LC duplex
This module is effective in diverse environments including Internet Service Provider (ISP) infrastructures and data centers. Its low power consumption, compliance with industry standards, and compatibility with various devices make it a preferred option for high-speed optical links.
Additionally, the module offers real-time diagnostic monitoring (DDM/DOM), allowing monitoring of critical operating conditions, thereby enhancing the reliability and efficiency of network maintenance.
In summary, the Huawei compatible OMXD30000 SFP+ 10GBASE-SR transceiver is a dependable solution for high-speed networking needs over multimode fiber.
Technical Specifications
-
Data Rate1.25 – 10.31 Gbps
-
Standard10GBASE-SR (IEEE 802.3ae compliant)
-
Fiber TypeMultimode Fiber (MMF)
-
Maximum Reach300 meters
-
Connector TypeLC duplex
-
Wavelength850 nm
-
Transmitter Optical Power-7.3 dBm (min) to -1.0 dBm (max)
-
Receiver Sensitivity-11.1 dBm
-
Optical Budget4.6 dB
-
Temperature Range0°C to +70°C
-
Power ConsumptionLess than 1 W
-
Supports DiagnosticsDigital Diagnostic Monitoring (DDM/DOM) supported
-
Form FactorSFP+ compliant (Multi-Source Agreement)
