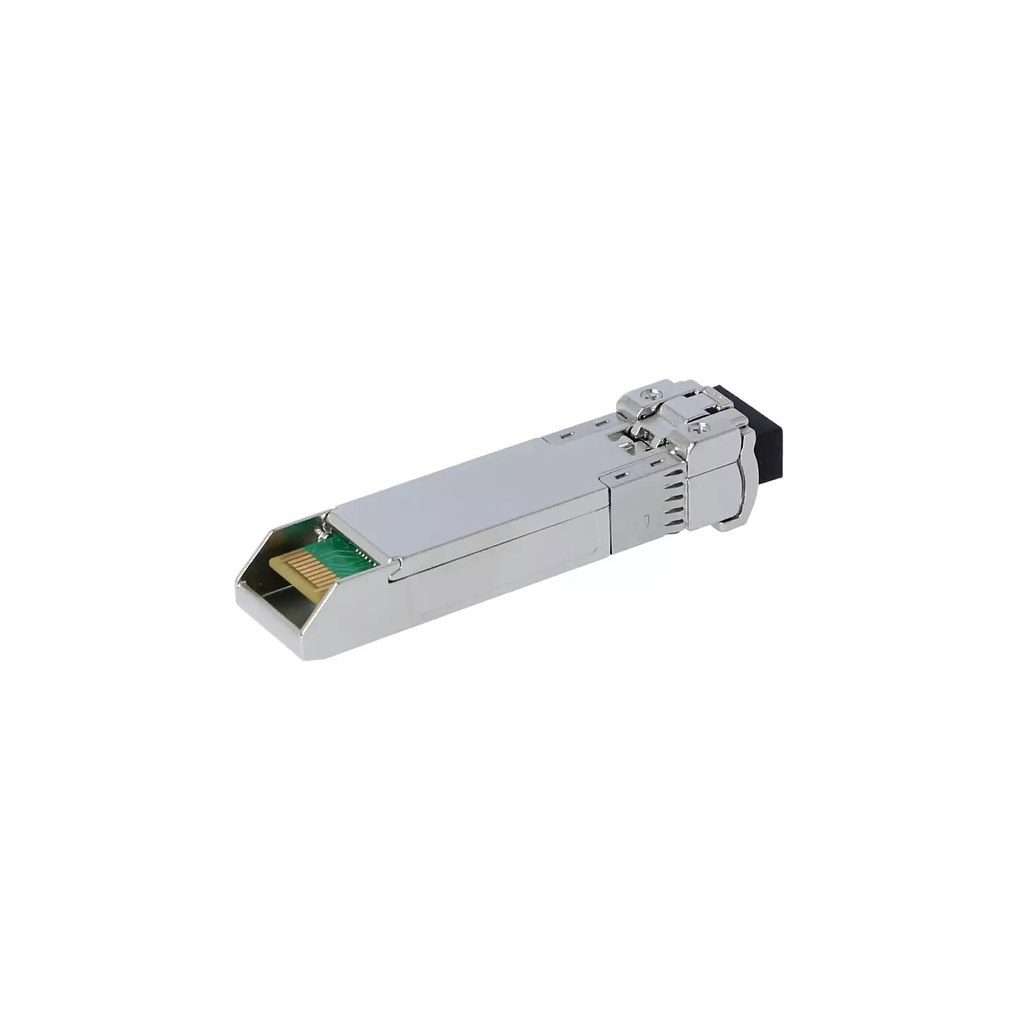

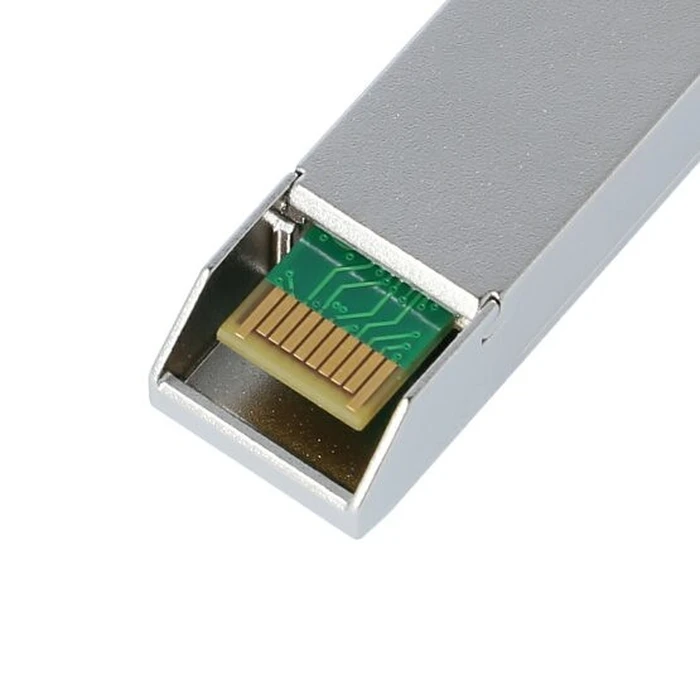

Transceiver HPE compatible SFP28 LC 25GBASE-LR S-Mode 10KM DDM
| Installment plan | Amount / month |
|---|---|
| 2 | 90,39 € |
| 4 | 45,43 € |
| 6 | 30,45 € |
| 8 | 22,96 € |
| 10 | 18,46 € |
| 12 | 15,47 € |
| 18 | 10,48 € |
| 24 | 7,98 € |
| 36 | 5,49 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The Transceiver HPE compatible SFP28 LC 25GBASE-LR S-Mode 10KM DDM is an advanced optical solution tailored for high-performance 25 Gigabit Ethernet applications over single-mode fiber. This module stands out due to its capabilities of supporting impressive data transmission rates up to 25.78 Gbps bi-directionally.
Designed for long-distance communication, it can effectively extend connections up to 10 kilometers. The transceiver utilizes a 1310nm DFB laser transmitter combined with a PIN photodiode receiver, and features a duplex LC optical interface that is compatible with standard single-mode fiber (SMF).
Key Technical Specifications:
- Form factor: Hot-pluggable SFP28 transceiver module
- Speed: 25GBASE-LR, supporting line speeds up to 25 Gbps
- Wavelength: 1310 nanometers
- Maximum Reach: 10 kilometers on OS1 single-mode fiber
- Optical Interface: Duplex LC connector
Additionally, this module boasts a power consumption of less than 3.3 watts and features Digital Diagnostic Monitoring (DDM). This allows for real-time monitoring of critical parameters such as optical power, temperature, voltage, and laser bias current. Ensuring compliance with multiple standards including SFF-8472, RoHS, EN 60825-1 and -2, and FDA Class 1 Laser Product, this transceiver guarantees reliability.
The operating temperature ranges from 0°C to 70°C, accommodating a wide range of environments. Fully compatible with HPE Aruba network hardware, it enables seamless integration into your existing network.
In summary, the HPE compatible JL486A SFP28 transceiver provides a robust and standards-compliant solution for extending high-speed 25G Ethernet connectivity up to 10 kilometers over single-mode fiber, ensuring optimal network performance.
Specifications
-
Form factor
- Hot-pluggable SFP28 transceiver module
-
Speed
- 25GBASE-LR, supporting line speeds up to 25 Gbps
-
Wavelength
- 1310 nanometers
-
Maximum Reach
- 10 kilometers on OS1 single-mode fiber
-
Optical Interface
- Duplex LC connector
-
Power Consumption
- Less than 3.3 watts
-
Digital Diagnostic Monitoring
- Integrated for real-time monitoring
-
Standards Compliance
- SFF-8472, RoHS, EN 60825-1 and -2, FDA Class 1 Laser Product
-
Operating Temperature
- 0°C to 70°C
-
Compatibility
- Fully compatible with HPE Aruba network hardware
