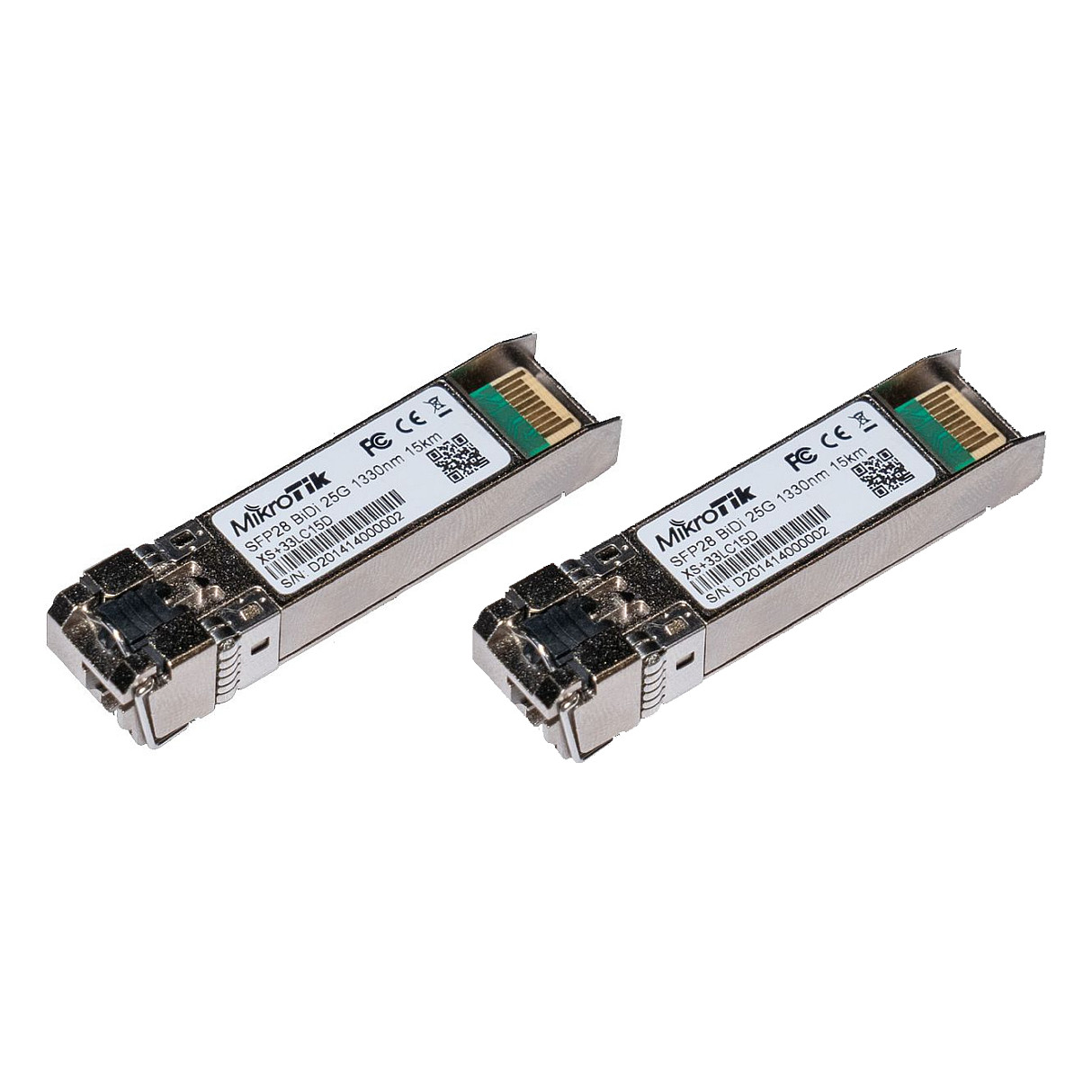

The MikroTik XS+2733LC15D is an impressive kit comprising two bidirectional (BiDi) SFP/SFP+/SFP28 transceiver modules. These modules are expertly designed for single-mode fiber (SMF) networks, enabling incredible Ethernet speeds of 1G/1.25G, 10G, or even 25G over distances of up to 15 km.
One of the standout features is their flexibility in operation. The modules function as a matched pair, showcasing the following technical specifications:
- Data Rates: 1G (1.25G SFP), 10G (SFP+), 25G (SFP28) up to 25.78 Gbps.
- Connector: Single LC UPC.
- Fiber Mode: Single-mode fiber (SMF), BiDi (one fiber).
- Maximum Distance: 15 km.
- Wavelengths: 1270 nm + 1330 nm (bidirectional pair).
The optical characteristics per module reveal the following:
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Transmitter Output Power | -5.0 | 2.0 | dBm |
| Receiver Sensitivity (OMA) | -13.0 | - | dBm |
In addition, the power supply requirements are efficient, with a +3.3V single supply and maximum consumption of 1.2–1.5 W per module. Enhanced with Digital Diagnostics Monitoring (DDM/DOM) and support for various standards, these modules ensure high reliability and efficiency.
-
Data Rates1G (1.25G SFP), 10G (SFP+), 25G (SFP28) up to 25.78 Gbps
-
ConnectorSingle LC UPC
-
Fiber ModeSingle-mode fiber (SMF), BiDi
-
Maximum Distance15 km
-
Wavelengths1270 nm + 1330 nm
-
Transmitter Output Power-5.0 to 2.0 dBm
-
Receiver Sensitivity-13.0 dBm
-
Power+3.3V single supply, 1.2-1.5 W per module
Ratings
Description
The MikroTik XS+2733LC15D is an impressive kit comprising two bidirectional (BiDi) SFP/SFP+/SFP28 transceiver modules. These modules are expertly designed for single-mode fiber (SMF) networks, enabling incredible Ethernet speeds of 1G/1.25G, 10G, or even 25G over distances of up to 15 km.
One of the standout features is their flexibility in operation. The modules function as a matched pair, showcasing the following technical specifications:
- Data Rates: 1G (1.25G SFP), 10G (SFP+), 25G (SFP28) up to 25.78 Gbps.
- Connector: Single LC UPC.
- Fiber Mode: Single-mode fiber (SMF), BiDi (one fiber).
- Maximum Distance: 15 km.
- Wavelengths: 1270 nm + 1330 nm (bidirectional pair).
The optical characteristics per module reveal the following:
| Parameter | Min | Max | Unit |
|---|---|---|---|
| Transmitter Output Power | -5.0 | 2.0 | dBm |
| Receiver Sensitivity (OMA) | -13.0 | - | dBm |
In addition, the power supply requirements are efficient, with a +3.3V single supply and maximum consumption of 1.2–1.5 W per module. Enhanced with Digital Diagnostics Monitoring (DDM/DOM) and support for various standards, these modules ensure high reliability and efficiency.
Technical Specifications
-
Data Rates1G (1.25G SFP), 10G (SFP+), 25G (SFP28) up to 25.78 Gbps
-
ConnectorSingle LC UPC
-
Fiber ModeSingle-mode fiber (SMF), BiDi
-
Maximum Distance15 km
-
Wavelengths1270 nm + 1330 nm
-
Transmitter Output Power-5.0 to 2.0 dBm
-
Receiver Sensitivity-13.0 dBm
-
Power+3.3V single supply, 1.2-1.5 W per module
