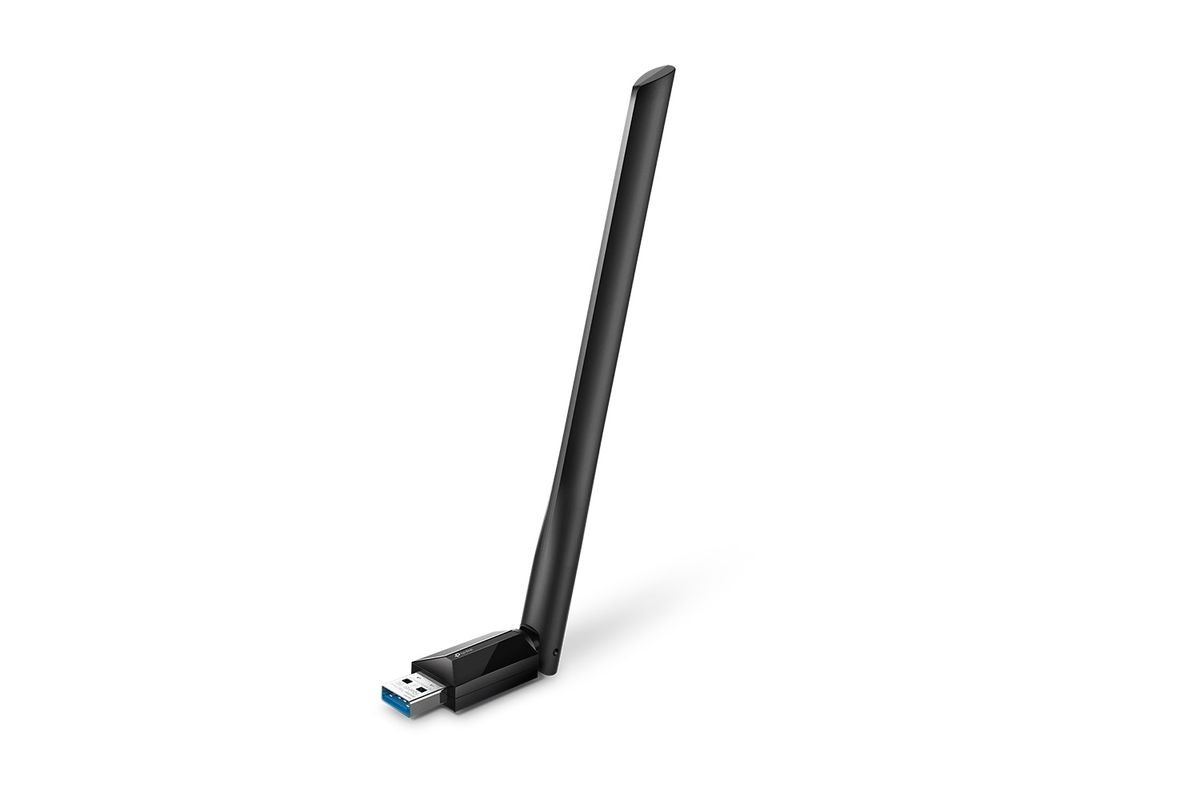

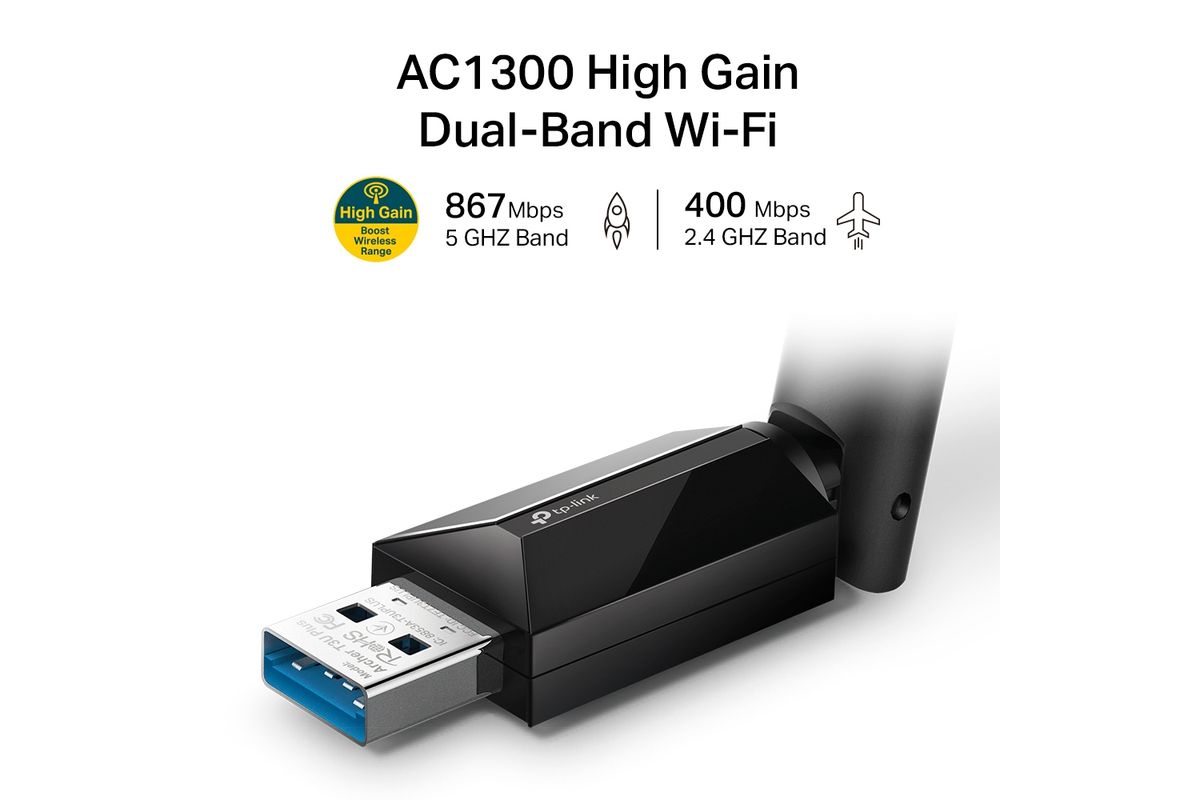

TP-Link WL-USB Archer T3U Plus V1.46 (Archer T3U Plus EU) - AC1300 Dual-Band USB Wi‑Fi Adapter

Description

Technical Specifications

• Brand
  TP-Link
• Model
  Archer T3U Plus V1.46
• MPN
  Archer T3U Plus(EU)
• SKU
  600727
• EAN
  1210002617475
• Product Type
  Dual-band USB 3.0 wireless adapter (Wireless USB Stick)
• Wi‑Fi Class
  AC1300
• Wireless Standards
  IEEE 802.11a/b/g/n/ac
• Max Rate (5 GHz)
  Up to 867 Mbps (802.11ac)
• Max Rate (2.4 GHz)
  Up to 400 Mbps (802.11n)
• Combined Theoretical Rate
  Up to 1300 Mbps
• Antenna
  High-gain external adjustable antenna
• Host Interface
  USB 3.0 (backward-compatible with USB 2.0)
• Security
  WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
• Frequency Bands
  2.4 GHz and 5 GHz
• Transmit Power (5 GHz)
  ~20 dBm EIRP (CE/FCC region dependent)
• Transmit Power (2.4 GHz)
  ~18 dBm EIRP (CE/FCC region dependent)
• Receive Sensitivity (example)
  5 GHz VHT80: -62 dBm; 2.4 GHz HT40: -70 dBm (per datasheet)
• Dimensions
  Approx. 57.8 × 18 × 173.4 mm (5.8 × 1.8 × 17.3 cm)
• Product Weight
  ~30 g (adapter only, approximate)
• Package Weight
  ~150 g (approximate retail package)
• Operating Temperature
  0 °C to 40 °C
• Storage Temperature
  -40 °C to 70 °C
• Operating Humidity
  10% to 90% non-condensing
• Color
  Black
• Intended Use
  Indoor, EU/EFTA countries (EU regional model)
• Certifications
  CE, FCC, RoHS
• Included Materials
  Adapter with adjustable external antenna, base (plastic housing), user guide and driver/installation references
• Compatibility
  Desktop and laptop computers with available USB port; OS compatibility depends on drivers provided by TP-Link (check EU V1 driver list)
• Design Benefit
  External antenna for improved range vs nano-style adapters
