TP-Link Omada Beam Bridge 5 UR KIT (Beam Bridge 5 UR KIT(EU))

Description

Technical Specifications

• Brand
  TP-Link / Omada
• Model
  Beam Bridge 5 UR KIT (Beam Bridge 5 UR KIT(EU))
• SKU
  585854
• EAN
  1210002603782
• MPN
  Beam Bridge 5 UR KIT(EU)
• Product Type
  Preconfigured two-unit point-to-point wireless bridge kit (Main AP + Client AP)
• Wireless Standard
  IEEE 802.11a/n/ac (Wi‑Fi 5 / 802.11ac)
• Frequency Band
  5 GHz
• Max Wireless Speed
  Up to 867 Mbps (PHY)
• Channel Bandwidths
  20 MHz / 40 MHz / 80 MHz
• MIMO
  2×2 MIMO, 2×2 MU‑MIMO
• Maximum Modulation
  Up to 256 QAM
• Antenna Type
  Directional external dual-polarized MIMO antenna
• Antenna Gain
  23 dBi
• Beamwidth
  Horizontal ~9°, Vertical ~7°
• Maximum Transmission Distance
  Up to 15 km (9.3 miles)
• Operating Modes
  Standalone / Omada SDN
• Pairing
  Factory pre-paired for quick deployment
• Maximum Clients
  8 (listed by reseller)
• Transmit Power
  ~30 dBm (reseller spec)
• Ethernet Ports
  1 × Gigabit Ethernet RJ45
• LAN Speed
  10/100/1000 Mbps
• PoE Support
  802.3af PoE and passive 24V/48V PoE-in
• Power Method
  Passive PoE adapter included
• Power Consumption
  Maximum ~15.8–16 W
• Weatherproofing
  IP65
• Lightning Protection
  6 kV
• Operating Temperature
  -40 °C to +70 °C
• Dimensions (per unit)
  366 × 280 × 207 mm
• Product Weight (per unit)
  1100 g

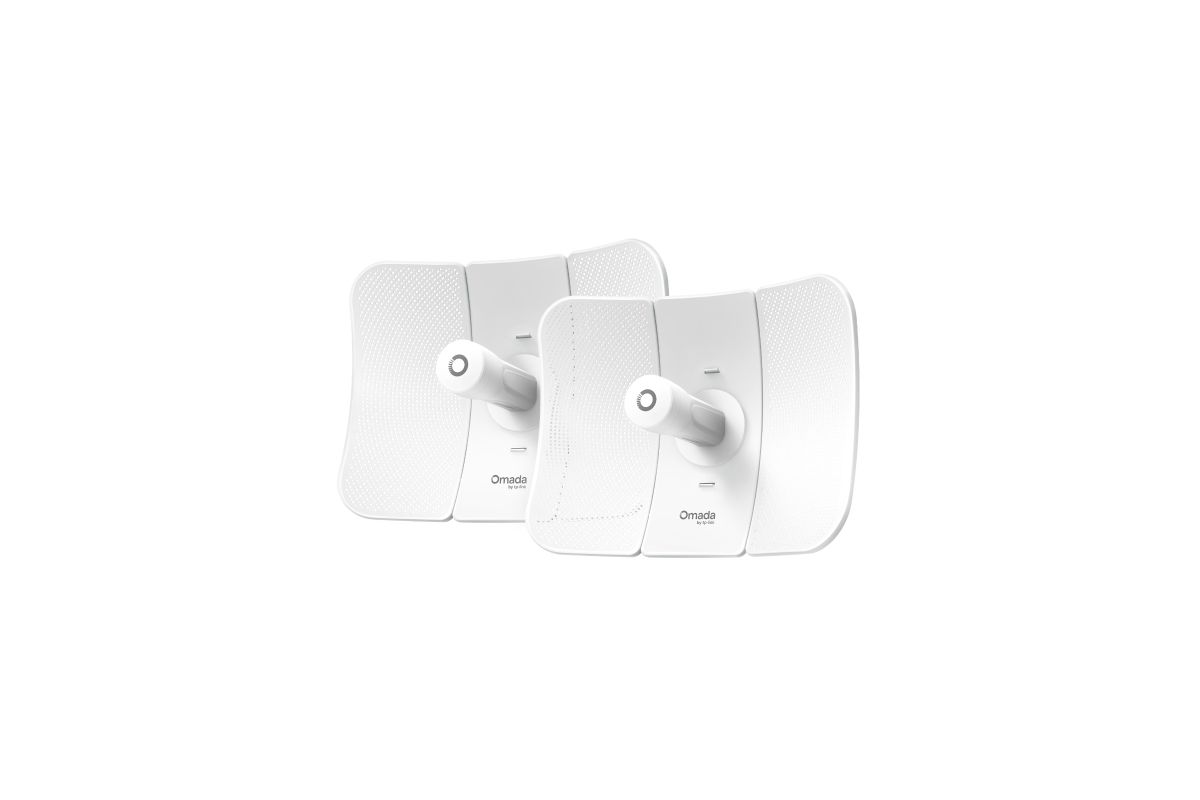

• Included in Kit
  Main AP, Client AP, passive PoE adapter, power cable, mounting kit, short installation guide
• Management
  Omada SDN compatible; standalone operation supported
• Security / Management Protocols
  SNMP and SSH support listed by a reseller
• Color
  White
• Materials
  Weatherproof plastic housing (manufacturer does not list detailed materials)
• Certifications / Notes
  Enterprise-grade outdoor durability; designed for long-range backhaul
