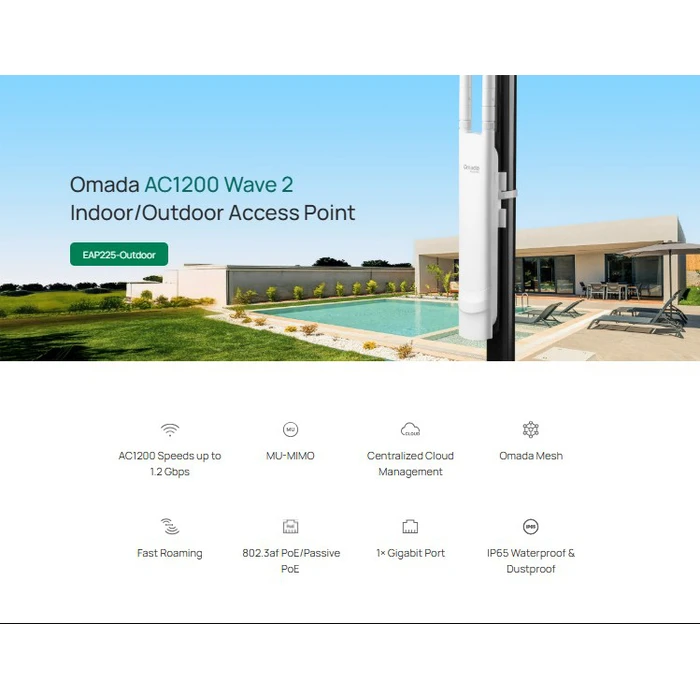

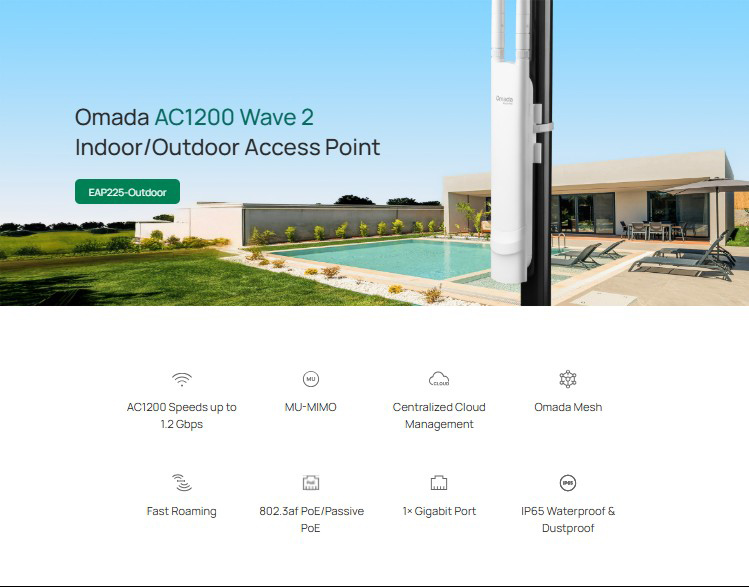

TP-LINK EAP225-OUTDOOR V3.20 AC1200 Dual-Band Outdoor Access Point (PoE)

Description

Technical Specifications

• Brand
  TP-LINK
• Model
  EAP225-OUTDOOR V3.20
• SKU
  EAP225-OUTDOOR-V320
• MPN
  EAP225-OUTDOOR-V320
• EAN
  1210002618519
• Product Type
  Outdoor Dual-Band Access Point (AC1200)
• Wi-Fi Standard
  IEEE 802.11a/b/g/n/ac (Wi‑Fi 5)
• Frequency Bands
  2.4 GHz and 5 GHz (Dual-Band)
• Max Wireless Rate
  1200 Mbps (300 Mbps @ 2.4 GHz + 867 Mbps @ 5 GHz)
• MIMO
  2x2 MU-MIMO
• Antennas
  2 Dual-Band Omni Antennas (External Detachable) - 2.4 GHz: 2 x 3 dBi, 5 GHz: 2 x 5 dBi
• Ethernet Port
  1 x Gigabit Ethernet (RJ-45)
• PoE Support
  802.3af/at PoE (Alternative A) and 24V Passive PoE (Passive PoE adapter included)
• Max Power Consumption
  10.5 W
• Weatherproof Rating
  IP65
• Surge Protection
  6 kV
• Operating Temperature
  -30°C to 70°C (spec sheet lists -30 °C – 70 °C; some references show -40 °C to +70 °C)
• Operating Humidity
  10%–90% RH non-condensing
• Dimensions (without antenna & mounting)
  46 x 26.7 x 214.9 mm
• Approx. Product Weight
  350 g
• Package Contents
  Access Point, Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide, Waterproof Rubber Insert, Waterproof Antenna
• Management
  Omada App, Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller, Zero-Touch Provisioning
• Cloud Access
  Yes (requires Omada controller)
• Mesh
  Omada Mesh supported
• Seamless Roaming
  802.11k/v/r supported
• SSID Support
  Multiple SSIDs (up to 16 SSIDs; 8 per band)
• QoS
  WMM
• Advanced Wireless
  Beamforming, Band Steering, Airtime Fairness, Load Balance
• Security
  Captive Portal Authentication, 802.1X support, Wireless MAC filtering, Wireless Isolation Between Clients, SSID-to-VLAN mapping, Rogue AP Detection
• Management Protocols
  SNMP v1/v2c/v3, Local/Remote Syslog, SSH, Web-based Management, L3 Management, Multi-site Management, Management VLAN
• Wireless Functions
  Automatic Channel Assignment, Transmit Power Control, Rate Limit, Reboot Schedule, Wireless Schedule
• Transmission Power (CE)
  <20 dBm (2.4 GHz EIRP), <27 dBm (5 GHz EIRP)
• Transmission Power (FCC)
  <23 dBm (2.4 GHz), <22 dBm (5 GHz)
• Mounting
  Pole/Wall mounting kits included
• Apps
  TP-Link Omada (Android & iOS)
• Certifications
  Regulatory limits CE/FCC compliant
• Typical Use
  Outdoor wireless coverage for businesses, venues, campuses, and outdoor public Wi-Fi
