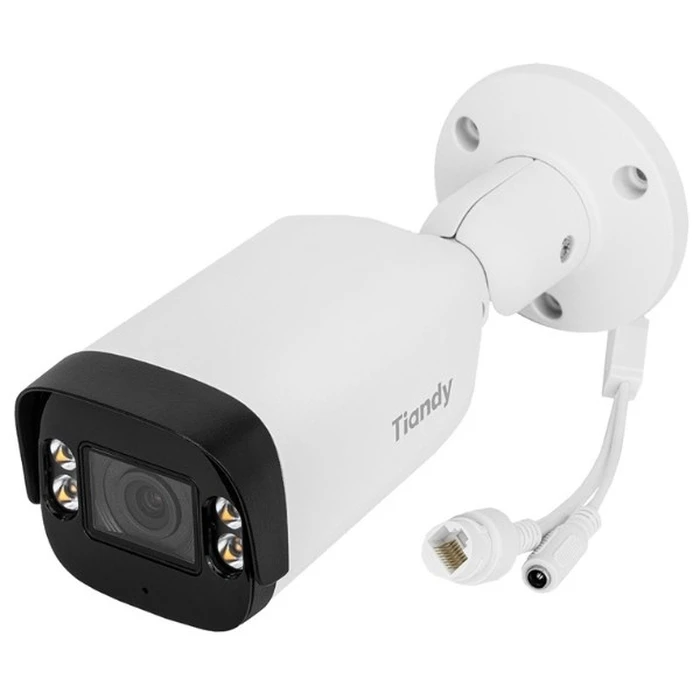

Tiandy TC-C38US 3LRA-28 Color Maker Lite Series — 8MP 2.8mm IP Bullet Camera

Description

Technical Specifications

• Brand
  Tiandy
• Model
  TC-C38US 3LRA-28
• Product Type
  Outdoor 8MP fixed bullet IP camera (Color Maker Lite Series)
• Image Sensor
  1/2.8" CMOS
• Maximum Resolution
  8 MP (3840 × 2160) @ 20 fps
• Video Compression
  S+265 / H.265 / H.264B / H.264M / H.264H / Motion JPEG
• Lens
  Fixed 2.8 mm, F1.6
• Field of View (H x V x D)
  H: 100.5°, V: 56.5°, D: 113.0°
• Minimum Illumination
  Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
• IR Range
  Up to 50 m
• Day/Night
  IR-cut filter with auto switch (ICR)
• WDR
  120 dB
• Smart Features
  Human/vehicle classification analytics
• Audio
  1 × built-in microphone
• Storage
  microSD / microSDHC / microSDXC up to 512 GB (on-board)
• Power Supply
  DC 12V ±25%, PoE IEEE 802.3af
• Power Consumption
  DC: 6.5 W; PoE: 8 W (max)
• Operating Conditions
  Temperature: -35°C to 65°C; Humidity: ≤95% RH
• Housing Material
  Metal
• Ingress Protection
  IP67
• Shutter Speed
  1 s ~ 1/100000 s
• S/N Ratio
  >42 dB
• Angle Adjustment
  Pan: 0~360°; Tilt: 0~90°; Rotation: 0~360°
• DORI Distances
  Detect: 77 m; Observe: 30.5 m; Recognize: 15.5 m
• Dimensions (packaged)
  Length 28 cm × Width 12 cm × Height 12 cm (package)
• Product Weight
  Approx. 480 g
• Packaging Weight
  Approx. 1200 g
• Certifications / Standards
  PoE (IEEE 802.3af)
• Color Maker Feature
  Optimized for low-light color imaging
