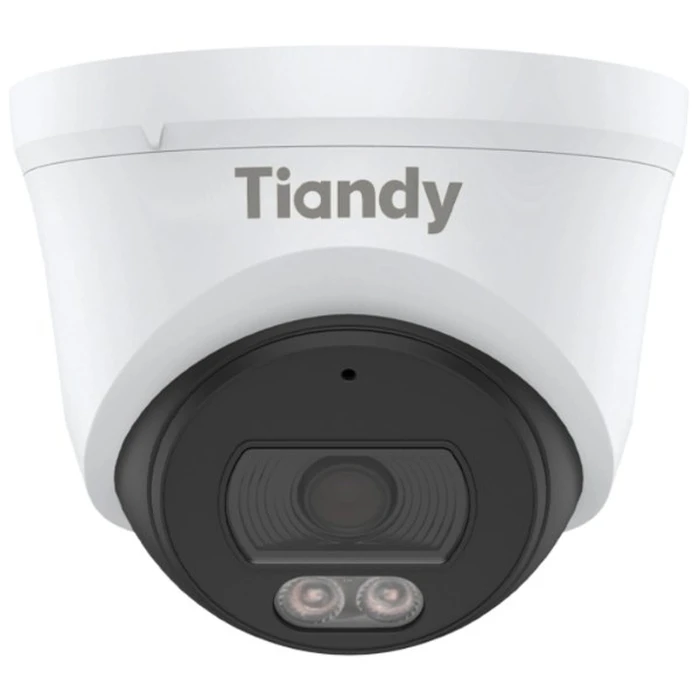

Tiandy TC-C36XN 2ENA-28 Spark Series 6MP IP Dome Camera (2.8 mm)

Description

Technical Specifications

• Brand
  Tiandy
• Model
  TC-C36XN 2ENA-28
• Series
  Spark Series
• Product Type
  IP dome camera (vandal-resistant style)
• Resolution
  6 MP (3200 × 1800)
• Image Sensor
  1/3" CMOS
• Frame Rate
  Up to 25 fps @ 3200×1800 (Tiandy catalog also reports up to 30 fps for some listings)
• Lens
  2.8 mm fixed focal, F1.6, M12 mount
• Field of View
  H: 91.5° • V: 51.2° • D: 103.6°
• Minimum Illumination
  Color: 0.02 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
• Shutter
  1 s ~ 1/100000 s
• Day/Night
  IR-cut filter with auto switch (ICR)
• IR / Night Vision
  2 IR LEDs, up to 30 m, 850 nm
• WDR
  DWDR
• Smart IR
  Yes
• Video Compression
  S+265, H.265, H.264B / H.264M / H.264H
• Bit Rate
  32 kbps ~ 6 Mbps
• Audio
  Built-in microphone; audio codecs G.711A / G.711U; sampling 8 kHz
• Network / Power
  PoE: IEEE 802.3af (max power reported: 3W on some listings; some catalogs list up to 5W)
• Housing Material
  Metal + plastic
• Dimensions (camera)
  117 × 117 × 96 mm
• Package Dimensions
  140 × 140 × 120 mm
• Gross / Package Weight
  ~340 g
• Operating Temperature
  (typical Spark series) -30°C ~ 60°C (manufacturer sheet for series)
• Operating Humidity
  ≤95% RH (typical Spark series)
• Ingress Protection
  Unconfirmed for this exact SKU (similar Spark variants may be IP67)
• Mounting / Adjustment
  Pan 0°~340° • Tilt 0°~75° • Roll 0°~360°
• EAN / Barcode
  6976642045294
• SKU
  WLONONWCRRM99
• MPN
  TC-C36XN 2ENA-28
