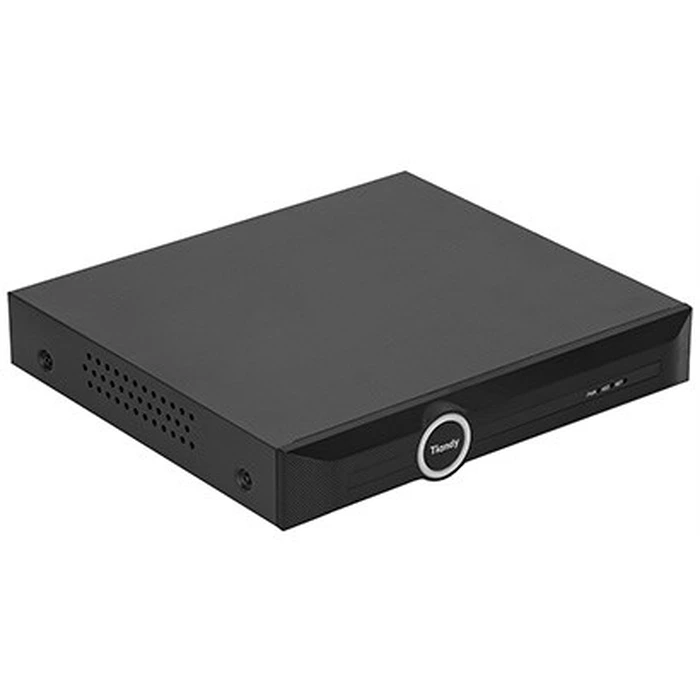

TIANDY IP Recorder TC-R3105 5 channels Lite

Description

Technical Specifications

• Brand
  Tiandy
• Model / MPN
  TC-R3105 SPEC:I/B/V3.0
• SKU
  WLONONWCRSDAM
• EAN
  6971849720760
• Product Type
  5-channel IP NVR (Lite series)
• Video Codecs Supported
  S+265, H.265, S+264, H.264
• Max Camera Channels
  5 (access channels)
• Max Camera Resolution Supported
  Up to 6MP
• Incoming Bandwidth
  50 Mbps (some listings 60 Mbps)
• Outgoing Bandwidth
  40 Mbps
• Preview Decoding Capability
  6MP×1, 5MP×1, 4MP×2, 3MP×2, 1080P×4, 720P×5
• Playback Decoding Capability
  6MP×1, 5MP×1, 4MP×1, 3MP×2, 1080P×3, 720P×4
• Simultaneous Outputs
  HDMI + VGA (simultaneous)
• HDMI Max Resolution
  Up to 4K (3840×2160)
• Storage Bays
  1 × SATA (HDD not included)
• Max HDD Capacity
  Up to 8TB or 10TB (variant-dependent)
• Compression Benefit
  S+265 up to ~75% storage saving (vs. traditional H.264)
• Network Interface
  1× RJ45 10/100 Mbps
• PoE Support
  Variant-dependent (PoE variants offer 4 PoE channels)
• Audio I/O
  1 input, 1 output (RCA)
• Alarm I/O
  0 inputs, 1 output (variant-dependent)
• USB Ports
  2 × USB 2.0
• VCA/Smart Features
  VCA (Video Content Analysis) supported with compatible Tiandy smart cameras
• Encryption
  Recording encryption supported
• Screen Split Modes
  1 / 3 / 4 / 5 / 6 / 7 / 9
• Supported Recording Resolutions
  6MP,5MP,4MP,3MP,1080P,UXGA,720P,VGA,4CIF,DCIF,2CIF,CIF,QCIF
• Power (PoE variant)
  48 V DC (on PoE model listings)
• Dimensions (approx.)
  315 × 70 × 235 mm (manufacturer spec) / product photos show compact cube-like chassis
• Product Weight
  1476 g
• Color
  Dark gray / black (based on product images)
• HDD Included
  No (typically sold without HDD)
• Warranty
  2 years (listed by some retailers)
• Notes
  Multiple TC-R3105 sub-variants exist (V3.0, V1.1, PoE/non-PoE); specs such as max HDD, PoE channels and bandwidth may vary by exact suffix
