Θυροτηλεφώνο Dahua KTP02 Video Door Phone Set
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€

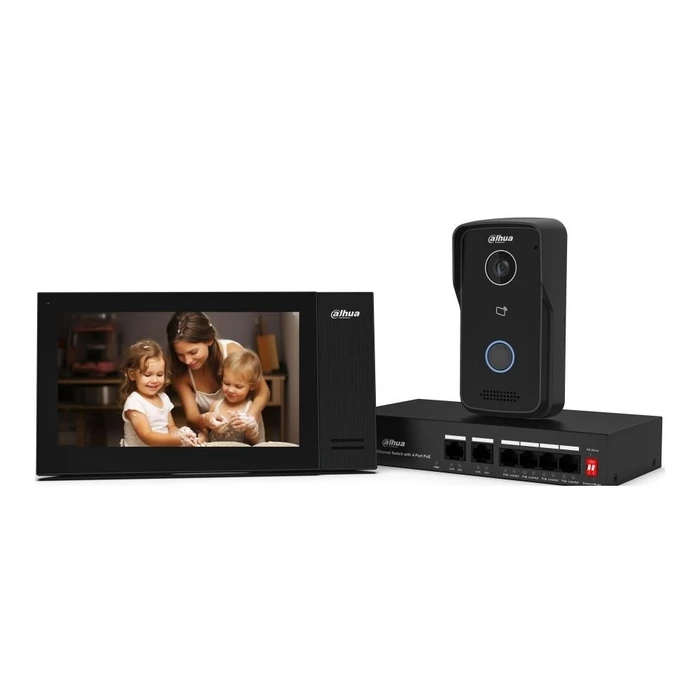

The Dahua KTP02 Video Door Phone Set is a comprehensive IP-based video intercom system designed specifically for villa and residential use. This advanced kit combines a high-definition door station camera with an indoor touch screen monitor and a PoE switch, ensuring seamless installation and connectivity.
Included in the Dahua KTP02 kit are the DHI-VTO2111D-P-S2 IP Villa Door Station and the DHI-VTH2421FB-P 7-inch Indoor Monitor. This integrated solution enhances video door communication by allowing two-way voice communication, video surveillance, alarm integration, and remote control through mobile applications. The door station is surface-mounted and offers a built-in MIFARE proximity card reader for effective access control.
Key Features
- IP communication system: Easily manage intercom functions remotely via mobile apps, enabling users to answer calls and unlock doors from anywhere.
- High image quality: With WDR and IR illumination, gain clear video even in low light or high-contrast settings.
- Alarm integration: Features 6 alarm inputs and 2 relay outputs for seamless incorporation with alarm and home automation systems.
- Weatherproof design: Enjoy reliable outdoor installation thanks to the IP65 environmental protection rating.
- Supports standard PoE: Simplifies the installation process by combining power and data transmission on a single cable.
In summary, the Dahua KTP02 Video Door Phone Set delivers a robust, flexible, and high-resolution IP intercom solution that meets various residential security needs, boasting remote management capabilities and comprehensive alarm compatibility.
-
Door Station ModelDHI-VTO2111D-P-S2
-
Camera Sensor1/4" 1 Megapixel CMOS sensor, HD video
-
Viewing AngleHorizontal: 107°, Vertical: 61°, Diagonal: 122°
-
Video CompressionH.264
-
Night VisionIR Illuminator with auto day/night ICR switch
-
WDR (Wide Dynamic Range)Supported
-
AudioTwo-way full duplex voice communication
-
Access ControlBuilt-in MIFARE S50 proximity reader
-
Network ProtocolsSIP, P2P, IPv4, RTSP, TCP, UDP, ONVIF
-
Alarm Integration6 alarm inputs, 2 relay outputs for control/notification
-
Environmental ProtectionIP65 rated with silicone sealing for all-weather resistance
-
Operating Temperature-30°C to +60°C
-
Indoor Monitor ModelDHI-VTH2421FB-P
-
Display Size7-inch capacitive TFT LCD touchscreen
-
Resolution1024 x 600 pixels
-
StorageEmbedded 8 GB SD card, supports micro SD card up to 32 GB (local recording possible)
-
Power Consumption? 30 W per device; total kit power max 36 W
-
Operating System & CPUEmbedded Linux OS, high-performance embedded processor
-
Connectivity1?10/100 Base-T Ethernet port on door station; 4?10/100 Base-T PoE ports on indoor monitor
-
Power SupplyPoE (Power over Ethernet) IEEE 802.3af / 802.3at or 12V DC
-
WeightDoor station: 326 g; Indoor monitor: 0.5 kg
-
DimensionsDoor station: ~222 x 120 x 22 mm; Indoor monitor: 170 x 100 x 35 mm
-
Languages SupportedEnglish, Bulgarian, Czech, Finnish, Polish, Slovak, Slovenian, Hungarian
-
Warranty3 years
Ratings
Description
The Dahua KTP02 Video Door Phone Set is a comprehensive IP-based video intercom system designed specifically for villa and residential use. This advanced kit combines a high-definition door station camera with an indoor touch screen monitor and a PoE switch, ensuring seamless installation and connectivity.
Included in the Dahua KTP02 kit are the DHI-VTO2111D-P-S2 IP Villa Door Station and the DHI-VTH2421FB-P 7-inch Indoor Monitor. This integrated solution enhances video door communication by allowing two-way voice communication, video surveillance, alarm integration, and remote control through mobile applications. The door station is surface-mounted and offers a built-in MIFARE proximity card reader for effective access control.
Key Features
- IP communication system: Easily manage intercom functions remotely via mobile apps, enabling users to answer calls and unlock doors from anywhere.
- High image quality: With WDR and IR illumination, gain clear video even in low light or high-contrast settings.
- Alarm integration: Features 6 alarm inputs and 2 relay outputs for seamless incorporation with alarm and home automation systems.
- Weatherproof design: Enjoy reliable outdoor installation thanks to the IP65 environmental protection rating.
- Supports standard PoE: Simplifies the installation process by combining power and data transmission on a single cable.
In summary, the Dahua KTP02 Video Door Phone Set delivers a robust, flexible, and high-resolution IP intercom solution that meets various residential security needs, boasting remote management capabilities and comprehensive alarm compatibility.
Technical Specifications
-
Door Station ModelDHI-VTO2111D-P-S2
-
Camera Sensor1/4" 1 Megapixel CMOS sensor, HD video
-
Viewing AngleHorizontal: 107°, Vertical: 61°, Diagonal: 122°
-
Video CompressionH.264
-
Night VisionIR Illuminator with auto day/night ICR switch
-
WDR (Wide Dynamic Range)Supported
-
AudioTwo-way full duplex voice communication
-
Access ControlBuilt-in MIFARE S50 proximity reader
-
Network ProtocolsSIP, P2P, IPv4, RTSP, TCP, UDP, ONVIF
-
Alarm Integration6 alarm inputs, 2 relay outputs for control/notification
-
Environmental ProtectionIP65 rated with silicone sealing for all-weather resistance
-
Operating Temperature-30°C to +60°C
-
Indoor Monitor ModelDHI-VTH2421FB-P
-
Display Size7-inch capacitive TFT LCD touchscreen
-
Resolution1024 x 600 pixels
-
StorageEmbedded 8 GB SD card, supports micro SD card up to 32 GB (local recording possible)
-
Power Consumption? 30 W per device; total kit power max 36 W
-
Operating System & CPUEmbedded Linux OS, high-performance embedded processor
-
Connectivity1?10/100 Base-T Ethernet port on door station; 4?10/100 Base-T PoE ports on indoor monitor
-
Power SupplyPoE (Power over Ethernet) IEEE 802.3af / 802.3at or 12V DC
-
WeightDoor station: 326 g; Indoor monitor: 0.5 kg
-
DimensionsDoor station: ~222 x 120 x 22 mm; Indoor monitor: 170 x 100 x 35 mm
-
Languages SupportedEnglish, Bulgarian, Czech, Finnish, Polish, Slovak, Slovenian, Hungarian
-
Warranty3 years
