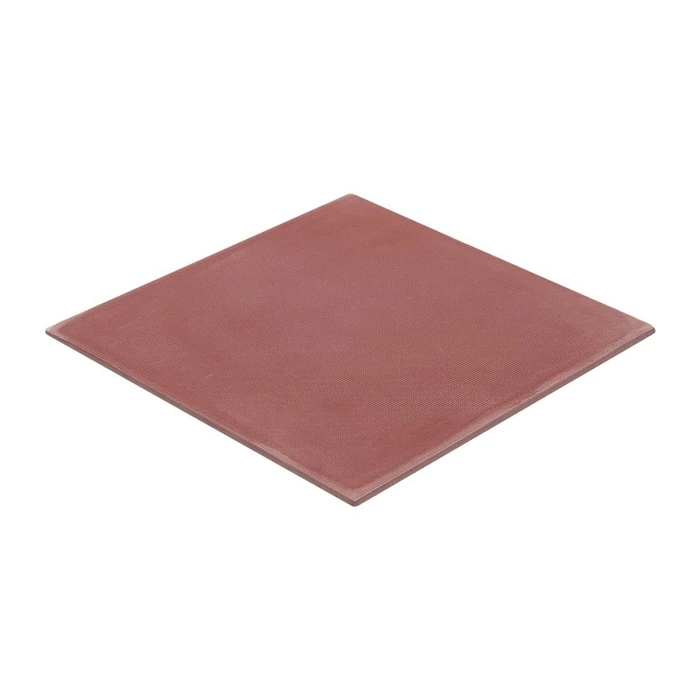

Thermal Pad Thermal Grizzly TG-MPE-100-100-15 heat sink compound
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
The Thermal Grizzly TG-MPE-100-100-15 ('Minus Pad Extreme') is a premium thermal pad designed specifically for effective heat transfer between critical components such as voltage regulators and memory ICs.
One of the standout features of this thermal pad is its modeling clay-like consistency which allows for optimal surface shaping and maximum compression. This characteristic is crucial for compensating slight variations in component heights, thus ensuring efficient cooling.
- Electrical insulation: The pad is electrically insulating, which prevents electrical shorts during operation.
- Material Hardness: This pad boasts a Shore hardness of 00-65, reflecting a softer and more flexible design.
The Thermal Grizzly TG-MPE-100-100-15 is designed with considerable attention to ensuring long-term stability and durability. Here are some of the key specifications:
- Dimensions: 100 mm x 100 mm surface area
- Thickness: 1.5 mm (typical tolerance of ± 0.1 mm)
- Density: Approximately 3.38 g/cm³
- Thermal Conductivity: Improved by 260% compared to the Minus Pad 8, providing superior heat dissipation.
- Operating Temperature: Ranges from -100°C to +200°C
This pad is available in two color options: blue or pink, and is ideal for one-time use in high-performance applications.
-
Dimensions100 mm x 100 mm
-
Thickness1.5 mm (± 0.1 mm)
-
Material HardnessShore 00-65
-
Density3.38 g/cm³
-
Thermal ConductivityImproved by 260% compared to the Minus Pad 8
-
Operating Temperature Range-100°C to +200°C
-
Electrical Insulation8 KV/mm (according to ASTM D149)
-
FlammabilityV-0 rating
-
Color OptionsBlue or pink
Ratings
Description
The Thermal Grizzly TG-MPE-100-100-15 ('Minus Pad Extreme') is a premium thermal pad designed specifically for effective heat transfer between critical components such as voltage regulators and memory ICs.
One of the standout features of this thermal pad is its modeling clay-like consistency which allows for optimal surface shaping and maximum compression. This characteristic is crucial for compensating slight variations in component heights, thus ensuring efficient cooling.
- Electrical insulation: The pad is electrically insulating, which prevents electrical shorts during operation.
- Material Hardness: This pad boasts a Shore hardness of 00-65, reflecting a softer and more flexible design.
The Thermal Grizzly TG-MPE-100-100-15 is designed with considerable attention to ensuring long-term stability and durability. Here are some of the key specifications:
- Dimensions: 100 mm x 100 mm surface area
- Thickness: 1.5 mm (typical tolerance of ± 0.1 mm)
- Density: Approximately 3.38 g/cm³
- Thermal Conductivity: Improved by 260% compared to the Minus Pad 8, providing superior heat dissipation.
- Operating Temperature: Ranges from -100°C to +200°C
This pad is available in two color options: blue or pink, and is ideal for one-time use in high-performance applications.
Technical Specifications
-
Dimensions100 mm x 100 mm
-
Thickness1.5 mm (± 0.1 mm)
-
Material HardnessShore 00-65
-
Density3.38 g/cm³
-
Thermal ConductivityImproved by 260% compared to the Minus Pad 8
-
Operating Temperature Range-100°C to +200°C
-
Electrical Insulation8 KV/mm (according to ASTM D149)
-
FlammabilityV-0 rating
-
Color OptionsBlue or pink
