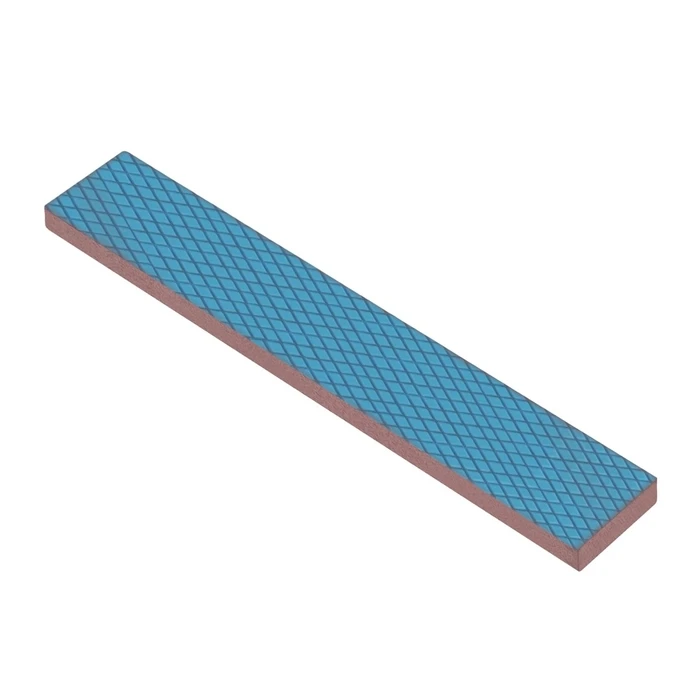

Thermal Pad Thermal Grizzly Minus Extreme heat sink compound
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Θερμαγώγιμη Πάστα Thermal Grizzly TG Kryonaut - 37 g / 10ml Extremely High Performance for Overclocking
The Thermal Grizzly Minus Pad Extreme is a high-performance thermal pad designed for demanding cooling applications. Particularly suited for components such as voltage regulators and memory ICs, it features a silicone-based material with a modeling clay-like consistency. This unique property allows the pad to conform perfectly to uneven surfaces, ensuring optimal heat transfer.
Key characteristics include:
- Thermal conductivity: Approximately 260% higher than the previous model, Minus Pad 8. This provides outstanding cooling performance for heat-intensive components.
- Electrical insulation: Rated 8 KV/mm according to ASTM D149, enhancing safety in electronic assemblies.
- Operating temperature range: Capable of withstanding temperatures from -100°C up to +200°C, making it suitable for extreme environments.
- Flammability rating: V-0, indicating excellent resistance to fire risks.
Furthermore, the pad offers remarkable properties:
- Density: 3.38 g/cm³
- Hardness: Shore 00-65, which implies a flexible yet durable material.
- Available colors: Blue and pink.
In summary, the Thermal Grizzly Minus Pad Extreme provides an effective solution for challenging thermal management tasks in electronics. Its design ensures that it can adapt to varying surface conditions, maximizing heat dissipation.
-
Thermal conductivity260% higher than Minus Pad 8
-
Material propertiesSilicone-based with modeling clay consistency
-
Electrical insulation8 KV/mm (ASTM D149)
-
Operating temperature range-100°C to +200°C
-
Flammability ratingV-0
-
Density3.38 g/cm³
-
HardnessShore 00-65
-
Color optionsBlue and pink
-
Physical dimensions120 mm length x 20 mm width x 3 mm thickness
-
UsageRecommended for one-time use
-
Long-term stabilityMaintains properties over extended periods
Ratings
Description
The Thermal Grizzly Minus Pad Extreme is a high-performance thermal pad designed for demanding cooling applications. Particularly suited for components such as voltage regulators and memory ICs, it features a silicone-based material with a modeling clay-like consistency. This unique property allows the pad to conform perfectly to uneven surfaces, ensuring optimal heat transfer.
Key characteristics include:
- Thermal conductivity: Approximately 260% higher than the previous model, Minus Pad 8. This provides outstanding cooling performance for heat-intensive components.
- Electrical insulation: Rated 8 KV/mm according to ASTM D149, enhancing safety in electronic assemblies.
- Operating temperature range: Capable of withstanding temperatures from -100°C up to +200°C, making it suitable for extreme environments.
- Flammability rating: V-0, indicating excellent resistance to fire risks.
Furthermore, the pad offers remarkable properties:
- Density: 3.38 g/cm³
- Hardness: Shore 00-65, which implies a flexible yet durable material.
- Available colors: Blue and pink.
In summary, the Thermal Grizzly Minus Pad Extreme provides an effective solution for challenging thermal management tasks in electronics. Its design ensures that it can adapt to varying surface conditions, maximizing heat dissipation.
Technical Specifications
-
Thermal conductivity260% higher than Minus Pad 8
-
Material propertiesSilicone-based with modeling clay consistency
-
Electrical insulation8 KV/mm (ASTM D149)
-
Operating temperature range-100°C to +200°C
-
Flammability ratingV-0
-
Density3.38 g/cm³
-
HardnessShore 00-65
-
Color optionsBlue and pink
-
Physical dimensions120 mm length x 20 mm width x 3 mm thickness
-
UsageRecommended for one-time use
-
Long-term stabilityMaintains properties over extended periods
