Broadband house amplifier TERRA HA-126 with 34 dB TV gain for amplifying TV/FM signals in home or communal antenna systems. Frequency range: 47–862 MHz (FM/VHF/UHF). Gain adjustment 0–20 dB, cable attenuation correction/equalizer 0–18 dB (VHF/UHF), frequency flatness ±0.5 dB, noise figure
More

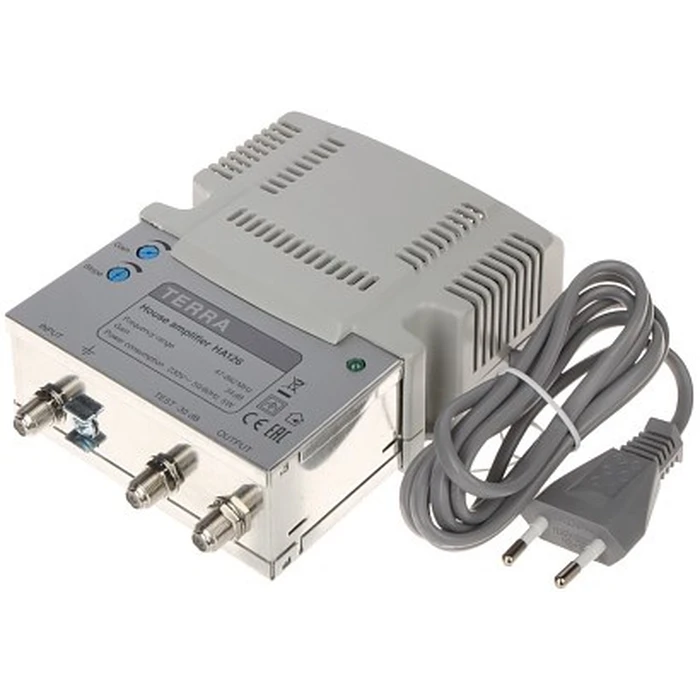

TERRA HA-126 House Amplifier 34 dB
Product Code: 1127676075
Available in 4 - 10 days
65,60 €
or
2,05€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Broadband house amplifier TERRA HA-126 with 34 dB TV gain for amplifying TV/FM signals in home or communal antenna systems. Frequency range: 47–862 MHz (FM/VHF/UHF). Gain adjustment 0–20 dB, cable attenuation correction/equalizer 0–18 dB (VHF/UHF), frequency flatness ±0.5 dB, noise figure <6 dB. One input and one output (F-type), -30 dB test output, built-in attenuator and cable equalizer. Power supply 187–250 V AC (typical 230 V), power consumption ~3.5 W. Dimensions approx. 107 × 145 × 53 mm, weight approx. 930 g. Manufacturer: Terra Electronics. Warranty: 2 years.
-
BrandTERRA
-
Model / MPNHA-126
-
EAN5907634569116
-
SKUWLONONWCROPH1
-
Product typeBroadband house RF amplifier (indoor)
-
Frequency range47–862 MHz
-
TV gain34 dB
-
Gain adjustment0–20 dB
-
Cable attenuation correction / equalizer0–18 dB (VHF), 0–18 dB (UHF)
-
Flatness / frequency response±0.5 dB
-
Noise figure<6 dB
-
Maximum output (IMD3 = 60 dB DIN45004B)117 dBµV
-
Maximum output (IMD2 = 60 dB EN50083-3)112 dBµV
-
CTB/CSO output level~101 dBµV
-
Input / outputs1 input, 1 output (F-type)
-
RF test outputYes (–30 dB test point)
-
Return loss / mismatch suppression>14 dB
-
AttenuatorBuilt-in
-
Push-pull output stageYes
-
Power supply / voltage187–250 V AC (typical 230 V)
-
Power consumption~3.5 W (6 VA listed in some sources)
-
Operating temperature-20 °C to +50 °C
-
Dimensions (WxLxH)~107 × 145 × 53 mm
-
Weight~930 g
-
Enclosure / materialIndoor enclosure (not die-cast) - material not specified
-
Warranty2 years
-
Manufacturer ordering number10539
Ratings
Description
Broadband house amplifier TERRA HA-126 with 34 dB TV gain for amplifying TV/FM signals in home or communal antenna systems. Frequency range: 47–862 MHz (FM/VHF/UHF). Gain adjustment 0–20 dB, cable attenuation correction/equalizer 0–18 dB (VHF/UHF), frequency flatness ±0.5 dB, noise figure <6 dB. One input and one output (F-type), -30 dB test output, built-in attenuator and cable equalizer. Power supply 187–250 V AC (typical 230 V), power consumption ~3.5 W. Dimensions approx. 107 × 145 × 53 mm, weight approx. 930 g. Manufacturer: Terra Electronics. Warranty: 2 years.
Technical Specifications
-
BrandTERRA
-
Model / MPNHA-126
-
EAN5907634569116
-
SKUWLONONWCROPH1
-
Product typeBroadband house RF amplifier (indoor)
-
Frequency range47–862 MHz
-
TV gain34 dB
-
Gain adjustment0–20 dB
-
Cable attenuation correction / equalizer0–18 dB (VHF), 0–18 dB (UHF)
-
Flatness / frequency response±0.5 dB
-
Noise figure<6 dB
-
Maximum output (IMD3 = 60 dB DIN45004B)117 dBµV
-
Maximum output (IMD2 = 60 dB EN50083-3)112 dBµV
-
CTB/CSO output level~101 dBµV
-
Input / outputs1 input, 1 output (F-type)
-
RF test outputYes (–30 dB test point)
-
Return loss / mismatch suppression>14 dB
-
AttenuatorBuilt-in
-
Push-pull output stageYes
-
Power supply / voltage187–250 V AC (typical 230 V)
-
Power consumption~3.5 W (6 VA listed in some sources)
-
Operating temperature-20 °C to +50 °C
-
Dimensions (WxLxH)~107 × 145 × 53 mm
-
Weight~930 g
-
Enclosure / materialIndoor enclosure (not die-cast) - material not specified
-
Warranty2 years
-
Manufacturer ordering number10539
