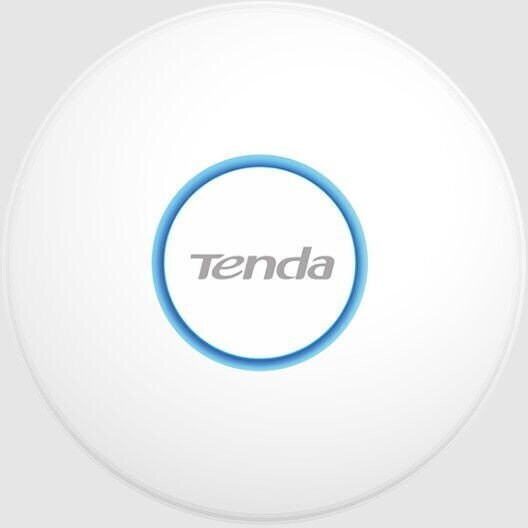

Tenda i26 Access Point Wi‑Fi 6 Dual Band (2.4 & 5GHz) - Single Kit

Description

Technical Specifications

• Product Type
  Access Point (Wi‑Fi 6, Dual Band 2.4 & 5GHz)
• Wi‑Fi Generation
  Wi‑Fi 6 (802.11ax)
• Wireless Bands
  2.4 GHz and 5 GHz (Dual Band)
• Maximum Wireless Data Rate (Total)
  1500 Mbps
• Maximum Data Rate (5 GHz)
  867 Mbps
• Maximum Data Rate (2.4 GHz)
  300 Mbps
• Networking Standards
  IEEE 802.11a/b/g/n/ac/ax
• Ethernet LAN Data Rates
  10/100/1000/2500 Mbit/s (supports 2.5G)
• Number of Ethernet Ports
  1 (RJ‑45)
• Ethernet Backhaul
  No
• Wi‑Fi Mesh Network
  No
• MIMO Technology
  2x2
• Antenna Type
  Internal
• Antenna Gain (max)
  4 dBi
• Maximum Tx Power (5 GHz)
  23 dBm
• Maximum Tx Power (2.4 GHz)
  20 dBm
• Maximum Tx Power (overall)
  27 dBm (manufacturer listed maximum)
• PoE Support
  Yes (PoE)
• PoE Type Supported
  PoE
• Beamforming
  Yes
• Airtime Fairness (ATF)
  Yes
• WMM/WME (Wi‑Fi Multimedia)
  Yes
• Rate Limiting
  Yes
• Quality of Service (QoS)
  Yes
• VLAN Support
  Yes
• MAC Address Filtering
  Yes
• Access Control List (ACL)
  Yes
• Guest Access
  Yes
• RADIUS Authentication
  Yes
• Syslog
  Yes
• Cloud‑Managed
  Yes
• Web‑based Management
  Yes
• Firmware Upgradeable
  Yes
• Security Algorithms
  WPA-PSK
• Coverage Area
  185 m²
• Power Consumption (max)
  12 W
• DC Voltage Input
  12 V
• Input Current
  1 A
• AC Adapter Included
  Yes
• Reset Button
  Yes
• LED Indicators
  Yes
• Placement
  Ceiling, Wall
• Mounting Kit Included
  Yes
• Quick Start Guide Included
  Yes
• Flash Memory
  16 MB
• Internal Memory (RAM)
  128 MB
• Product Colour
  White
• Operating Temperature
  0 - 40 °C
• Storage Temperature
  -40 - 70 °C
• Operating Relative Humidity
  10 - 90%
• Storage Relative Humidity
  5 - 90%
• Weight
  600 g
• Dimensions (HxWxD)
  38 mm x 220 mm x 220 mm
• Compliance Certificates
  RoHS, CE, FCC, IC
