Teltonika TRM142 Industrial 4G LTE Cat 4 Modem (TRM142000000)

Description

Technical Specifications

• Brand
  Teltonika Networks
• Model
  TRM142
• MPN
  TRM142000000
• SKU
  21169312
• EAN
  4779051845750
• Product type
  Industrial 4G LTE Cat 4 Modem
• Cellular technologies
  4G LTE (FDD/TDD), 3G (HSPA+/HSUPA/WCDMA), 2G (EDGE/GPRS)
• LTE speed (FDD)
  Up to 150 Mbps down / 50 Mbps up
• LTE speed (TDD)
  Up to 130 Mbps down / 30 Mbps up
• 3G speed (HSPA+)
  Up to 21 Mbps down
• 3G upload (HSUPA)
  Up to 5.76 Mbps up
• 2G speeds
  GPRS/EDGE supported
• 3GPP release
  Release 9
• RF bands & max power
  Max RF power: 33 dBm (GSM), 24 dBm (WCDMA), 23 dBm (LTE)
• Interfaces

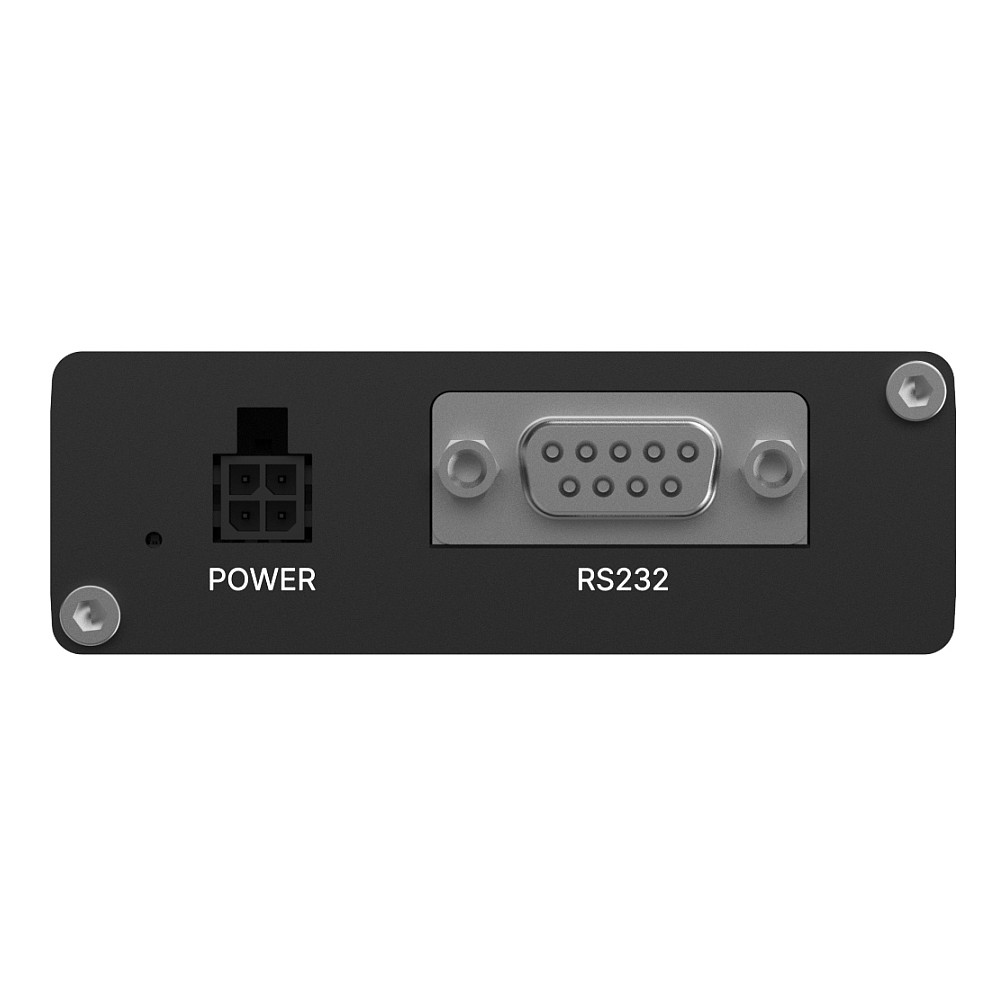

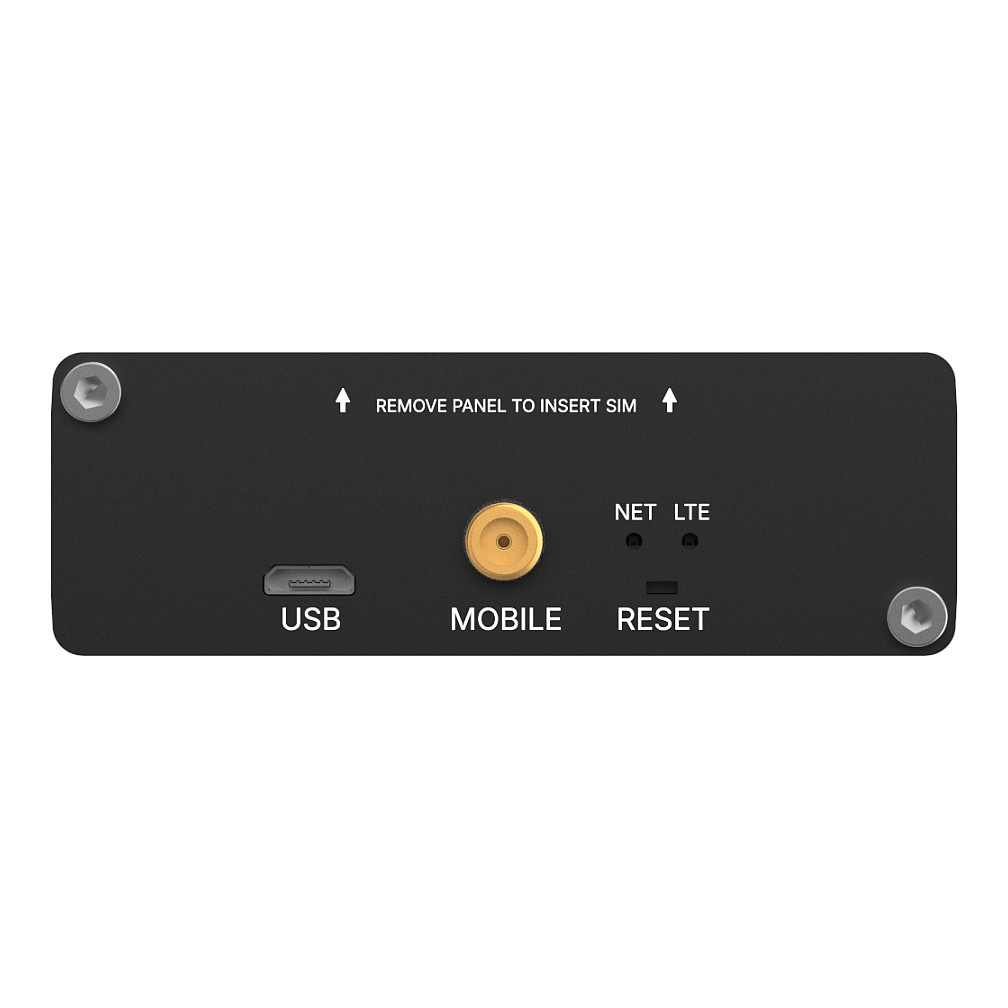

  1× DB9 RS232 (RTS/CTS), 1× micro-USB (virtual network interface), 1× SMA antenna
• Antenna (bundled/typical)
  External SMA antenna (699–868 / 1850–2690 MHz, 1 dBi, SMA male) — depends on order code
• Power input
  4-pin industrial DC power socket, 9–30 VDC
• Power protection
  Overvoltage, reverse polarity and surge protection
• Power consumption
  < 1 W idle, < 5 W max
• Reset
  Reset button with reboot/user default/factory reset functions
• Housing material
  Anodized aluminum housing and panels
• Dimensions (W×H×D)
  75.9 × 25 × 74.5 mm
• Weight (product)
  135 g
• Operating temperature
  -40 °C to 75 °C
• Operating humidity
  10% to 90% non-condensing
• Ingress protection
  IP30
• Mounting options
  DIN rail, wall mount, flat surface (mount kit required)
• Use case
  Retrofit LTE connectivity for legacy RS232 devices, alarm systems, IIoT and automation equipment
