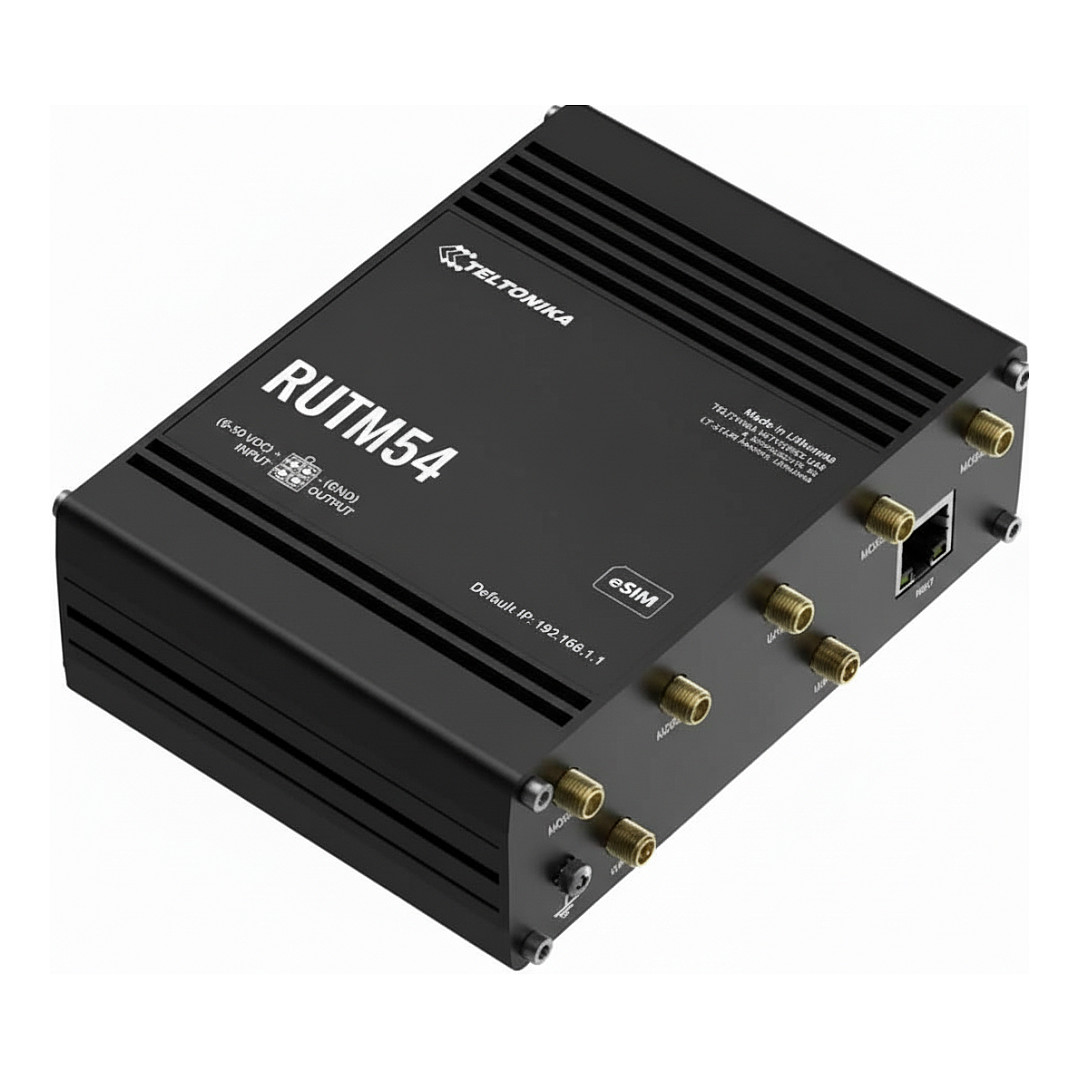

Teltonika RUTM54 5G Industrial Wireless Router – WWAN, Dual‑SIM + eSIM, 5x Gigabit Ethernet, Dual‑Band Wi‑Fi 5

Description

Technical Specifications

• Brand
  Teltonika Networks
• Model / MPN
  RUTM54 / RUTM54000000
• EAN
  4779051842995
• Product Type
  5G industrial wireless router (WWAN)
• Cellular Technologies
  5G Sub-6 GHz SA/NSA, 4G LTE, 3G
• 5G Performance
  Up to 3.4 Gbps download, up to 900 Mbps upload (SA/NSA)
• 4G Performance
  LTE Cat 19 up to 1.6 Gbps download; Cat 18 up to 211 Mbps upload
• Wi‑Fi
  802.11b/g/n/ac Wave 2 (Wi‑Fi 5), dual‑band, up to 867 Mbps (5 GHz)
• Ethernet
  5 x Gigabit Ethernet ports (10/100/1000 Mbps)
• SIM / eSIM
  Dual‑SIM + eSIM support (automatic switching, up to 7 eSIM profiles)
• GNSS
  Yes (GNSS antenna included)
• Failover & Backup
  Automatic failover, link backup, ICMP detection
• Operating System
  RutOS (OpenWrt-based)
• CPU
  MediaTek dual-core 880 MHz (MIPS1004Kc)
• Memory
  256 MB DDR3 RAM
• Antenna Interfaces
  4 mobile antennas (SMA), 2 Wi‑Fi antennas (RP‑SMA), 1 GNSS antenna
• RF Power (typ.)
  Wi‑Fi: 20 dBm (2.4 GHz), 23 dBm (5 GHz); cellular up to ~24 dBm (varies by band)
• Power Input
  12 V DC, 1.5 A (18 W PSU included); some listings show 9–50 V DC wide input
• Dimensions
  132 × 44.2 × 95 mm
• Weight
  530 g
• Housing
  Aluminium (industrial housing)
• Operating Temperature
  −40 °C to +75 °C (per reseller listings)
• Package Contents
  Router, 18 W PSU, 4 mobile antennas, 2 Wi‑Fi antennas, 1 GNSS antenna
• Certifications
  Carrier certifications listed for AT&T and T‑Mobile (some listings mention Verizon)
• Use Cases
  Industrial connectivity, logistics, smart farming, retail, RVing, remote asset tracking
