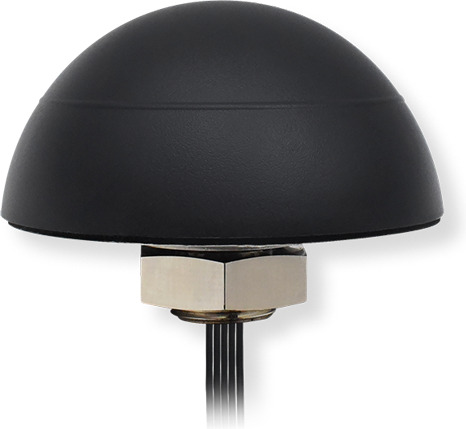

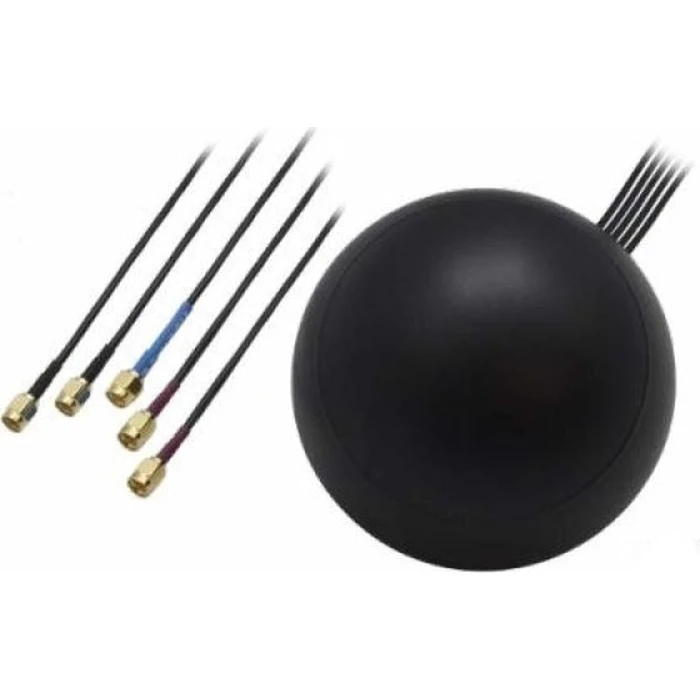

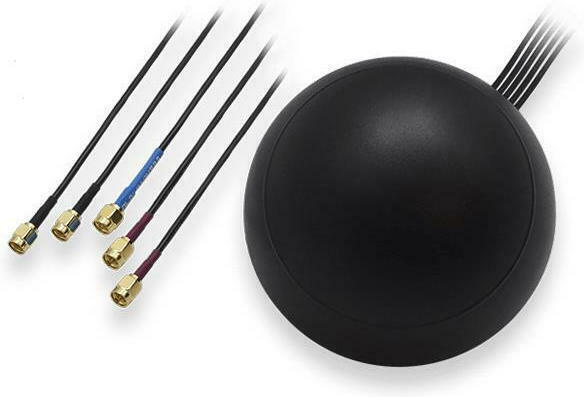

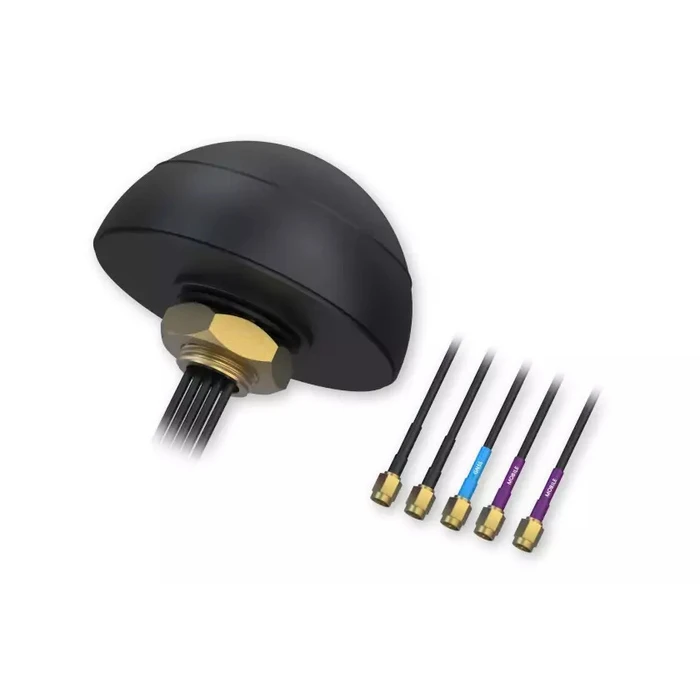

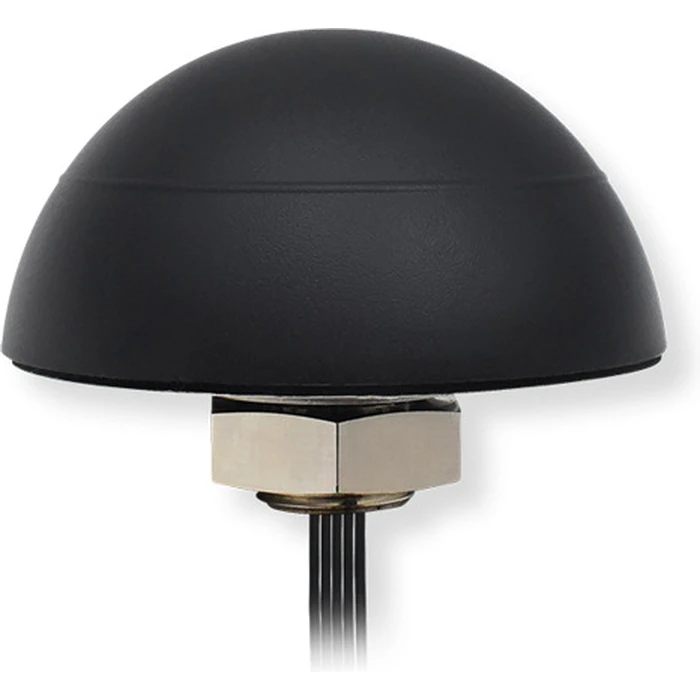

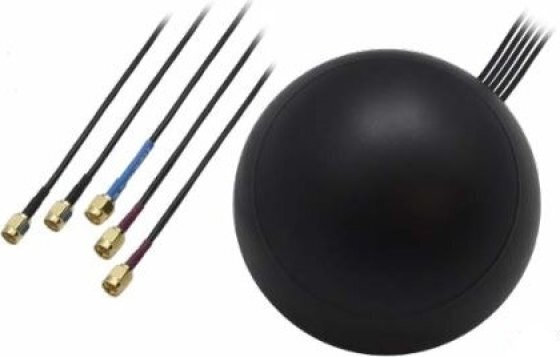

The Teltonika PR1KCO28 is an external directional 4G antenna from Teltonika Networks with an SMA Male connector. It is designed for LTE MIMO and GNSS applications, providing stable and reliable signal reception in demanding environments. The GNSS antenna covers 1575 - 1610 MHz, with RHCP...
More
Teltonika External 4G Directional Antenna 28dBi SMA
Product Code: 1200658007
Available in 4 - 10 days
96,81 €
or
3,02€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

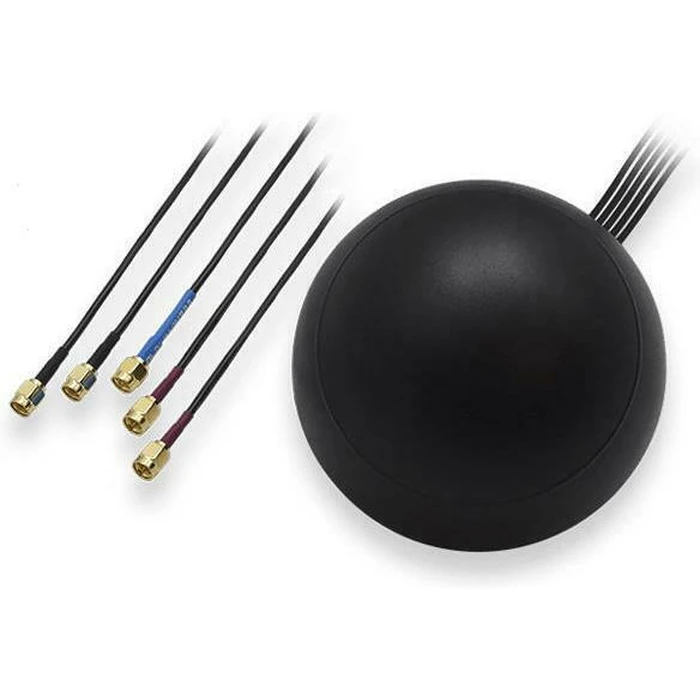

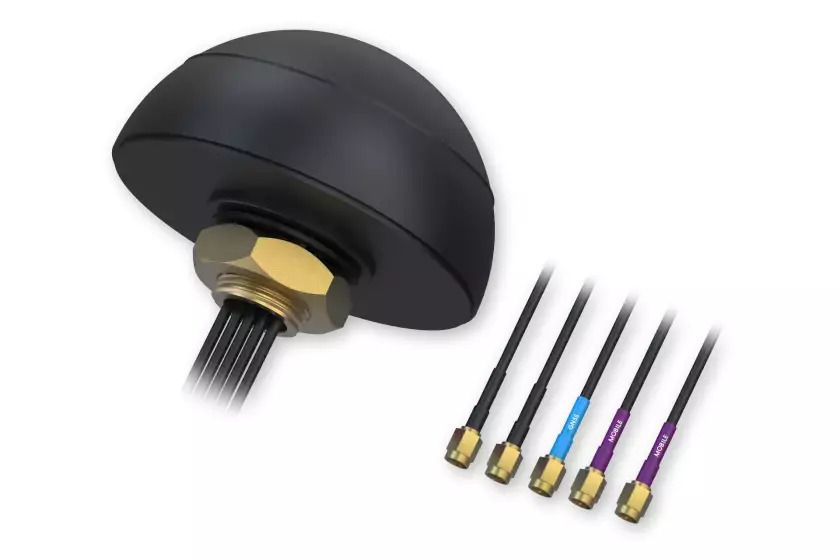

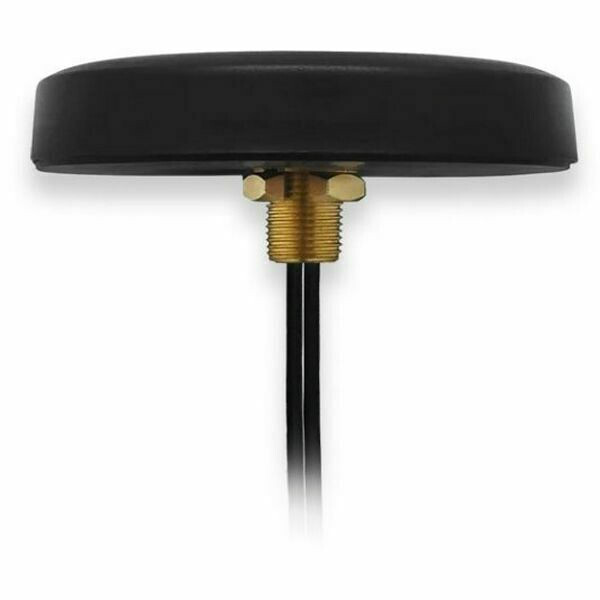

The Teltonika PR1KCO28 is an external directional 4G antenna from Teltonika Networks with an SMA Male connector. It is designed for LTE MIMO and GNSS applications, providing stable and reliable signal reception in demanding environments. The GNSS antenna covers 1575 - 1610 MHz, with RHCP polarization, 50 Ω impedance, 28 ± 2 dB LNA gain, 1.5 dB LNA noise figure, 3.0 - 5.0 VDC supply voltage, 15 mA current consumption, and 2.0 VSWR. The LTE MIMO antenna covers 698 - 960 / 1710 - 2690 MHz, with linear polarization and 3.0 dBi gain. Suitable for outdoor installation and improving mobile network connectivity. Brand: Teltonika Networks. MPN: W125997398. EAN: 4779051840977.
-
GNSS Frequency Range1575 - 1610 MHz
-
GNSS PolarizationRHCP
-
GNSS Impedance50 Ω
-
GNSS LNA Gain28 ± 2 dB
-
GNSS LNA Noise Figure1.5 dB
-
GNSS Supply Voltage3.0 - 5.0 VDC
-
GNSS Current Consumption15 mA
-
GNSS VSWR2.0
-
GNSS Connector TypeSMA Male
-
LTE MIMO Frequency Range698 - 960 / 1710 - 2690 MHz
-
LTE MIMO PolarizationLinear
-
LTE MIMO Gain3.0 dBi
-
BrandTeltonika Networks
-
ModelPR1KCO28
-
SKUW125997398
-
MPNW125997398
-
EAN4779051840977
Ratings
Description
The Teltonika PR1KCO28 is an external directional 4G antenna from Teltonika Networks with an SMA Male connector. It is designed for LTE MIMO and GNSS applications, providing stable and reliable signal reception in demanding environments. The GNSS antenna covers 1575 - 1610 MHz, with RHCP polarization, 50 Ω impedance, 28 ± 2 dB LNA gain, 1.5 dB LNA noise figure, 3.0 - 5.0 VDC supply voltage, 15 mA current consumption, and 2.0 VSWR. The LTE MIMO antenna covers 698 - 960 / 1710 - 2690 MHz, with linear polarization and 3.0 dBi gain. Suitable for outdoor installation and improving mobile network connectivity. Brand: Teltonika Networks. MPN: W125997398. EAN: 4779051840977.
Technical Specifications
-
GNSS Frequency Range1575 - 1610 MHz
-
GNSS PolarizationRHCP
-
GNSS Impedance50 Ω
-
GNSS LNA Gain28 ± 2 dB
-
GNSS LNA Noise Figure1.5 dB
-
GNSS Supply Voltage3.0 - 5.0 VDC
-
GNSS Current Consumption15 mA
-
GNSS VSWR2.0
-
GNSS Connector TypeSMA Male
-
LTE MIMO Frequency Range698 - 960 / 1710 - 2690 MHz
-
LTE MIMO PolarizationLinear
-
LTE MIMO Gain3.0 dBi
-
BrandTeltonika Networks
-
ModelPR1KCO28
-
SKUW125997398
-
MPNW125997398
-
EAN4779051840977
