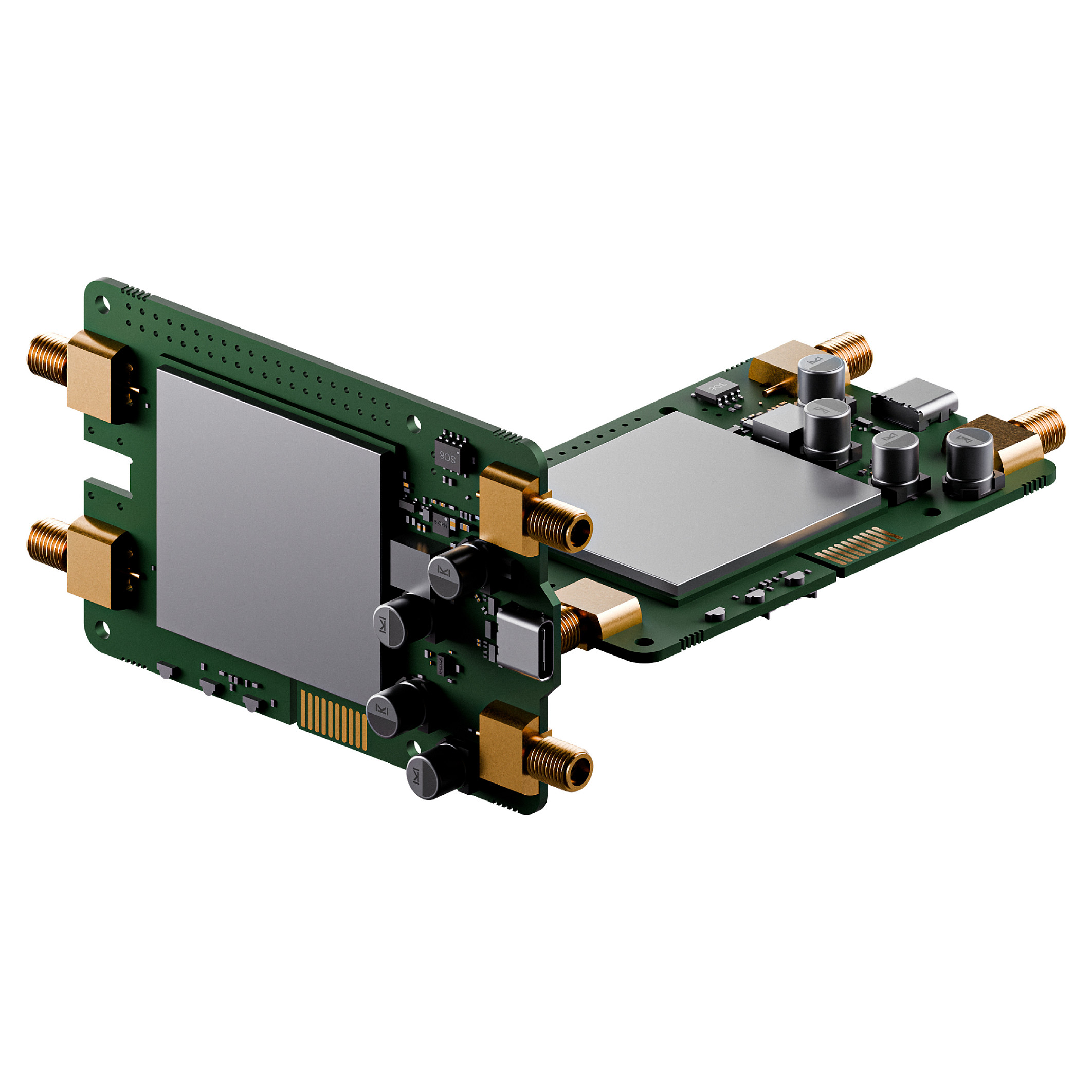

Teltonika EBD070 Calyx PI-Compatible 5G RedCap Modem (Calyx Embedded Cellular Raspberry Pi HAT+)

Description

Technical Specifications

• Brand
  Teltonika
• Model
  EBD070 (Calyx Embedded Cellular Raspberry Pi HAT+)
• MPN
  EBD070000000
• EAN/Barcode
  4779051845873
• SKU
  21169316
• Category
  Netzwerk > Router
• Form factor
  Raspberry Pi HAT+ (credit‑card sized HAT footprint)
• Compatible with
  Raspberry Pi 4, Raspberry Pi 5
• Variant / Radio
  5G RedCap (Calyx family variant)
• SIM slot
  Single nano‑SIM (4FF), push‑pull
• Antenna connectors
  2 × SMA
• Audio interface
  PCM audio support (digital low‑latency audio)
• Host integration
  AT commands / modem‑manager via Raspberry Pi host
• Modem control
  GPIO control for wake, reset and modem management
• Operating temperature range
  -40 °C to +75 °C (industrial range)
• Manufacturing
  Manufactured in Europe (Teltonika Networks)
• Dimensions (board)
  ~65 mm × 56 mm (standard HAT footprint)
• Weight (product)
  95 g
• Materials
  PCB (FR‑4), electronic components, SMA connectors, SIM holder
• Typical use cases
  Industrial IoT, edge computing, embedded cellular connectivity for Raspberry Pi systems
• Packaging (typical)
  Retail box containing the EBD070 HAT, basic documentation (packaging dimensions and weight estimated)
• Certifications / notes
  Calyx family datasheet available; specific radio throughput & band support depends on the embedded modem variant and regulatory region
