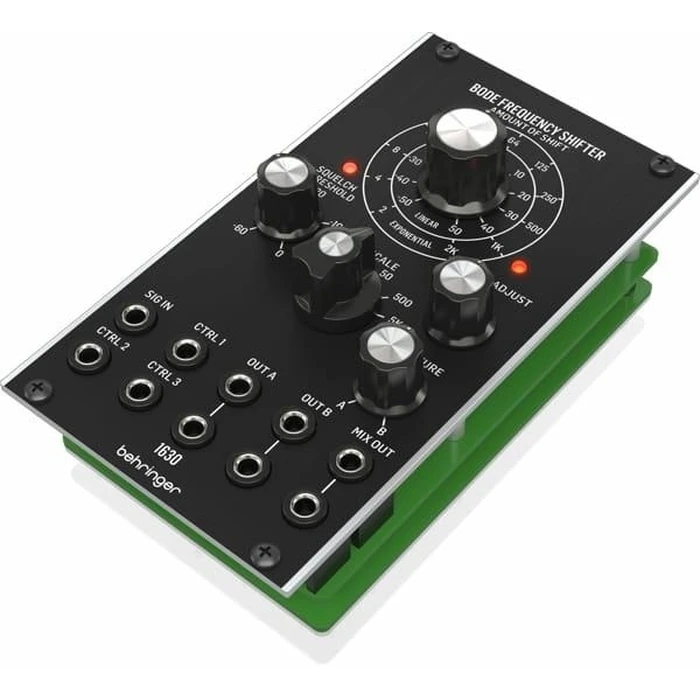

Synthesizer Behringer BODE FREQUENCY SHIFTER 1630
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Συνθεσάιζερ Behringer 1033 DUAL ENVELOPE GENERATOR 2500 Series Modular Module
The Behringer BODE FREQUENCY SHIFTER 1630 is a remarkable analog Eurorack synthesizer module. It is designed to manipulate the frequency spectrum of audio inputs with exceptional precision and versatility. This module pays homage to the original 1974 Bode frequency shifter, incorporating modern circuitry for remarkable sound quality.
Key features of this module include:
- Frequency Shift Range: Continuously adjustable from -5 kHz to +5 kHz in linear mode and from 2 Hz to 2 kHz in exponential mode.
- Input Frequency Range: Accepts audio signals between 30 Hz and 16 kHz.
- Shift Control: Offers both coarse and fine controls, along with a large shift knob for manual adjustments.
- Scales: Includes a scale switch for no shift, exponential, and four linear mode options.
Additional controls enhance the module's capability:
- Squelch/Threshold Control: Minimizes carrier bleed-through for cleaner output.
- Outputs: Features outputs for upward-shifted, downward-shifted, and a mix of both signals.
- Physical Specs: Width of 14 TE and depth of approximately 2.8 inches.
- Power Consumption: 110 mA on both +12 V and -12 V rails.
This module is designed to cater to various applications, such as tonal modification, frequency modulation, and experimental sound design.
In conclusion, the Behringer BODE FREQUENCY SHIFTER 1630 is the ideal tool for synth enthusiasts looking to elevate their sound with unique frequency shifting capabilities.
-
Frequency Shift Range (Linear)±5 kHz
-
Frequency Shift Range (Exp)2 Hz to 2 kHz
-
Input Frequency Range30 Hz to 16 kHz
-
ControlsShift knob, Scale switch, Squelch threshold knob, Zero adjust, Mix control
-
CV InputsFor frequency shift control
-
OutputsUpward-shifted (A), Downward-shifted (B), Mix output
-
Power110 mA @ +12 V, 110 mA @ -12 V
-
Size14 TE (Eurorack width), 2.8 inches depth
Ratings
Description
The Behringer BODE FREQUENCY SHIFTER 1630 is a remarkable analog Eurorack synthesizer module. It is designed to manipulate the frequency spectrum of audio inputs with exceptional precision and versatility. This module pays homage to the original 1974 Bode frequency shifter, incorporating modern circuitry for remarkable sound quality.
Key features of this module include:
- Frequency Shift Range: Continuously adjustable from -5 kHz to +5 kHz in linear mode and from 2 Hz to 2 kHz in exponential mode.
- Input Frequency Range: Accepts audio signals between 30 Hz and 16 kHz.
- Shift Control: Offers both coarse and fine controls, along with a large shift knob for manual adjustments.
- Scales: Includes a scale switch for no shift, exponential, and four linear mode options.
Additional controls enhance the module's capability:
- Squelch/Threshold Control: Minimizes carrier bleed-through for cleaner output.
- Outputs: Features outputs for upward-shifted, downward-shifted, and a mix of both signals.
- Physical Specs: Width of 14 TE and depth of approximately 2.8 inches.
- Power Consumption: 110 mA on both +12 V and -12 V rails.
This module is designed to cater to various applications, such as tonal modification, frequency modulation, and experimental sound design.
In conclusion, the Behringer BODE FREQUENCY SHIFTER 1630 is the ideal tool for synth enthusiasts looking to elevate their sound with unique frequency shifting capabilities.
Technical Specifications
-
Frequency Shift Range (Linear)±5 kHz
-
Frequency Shift Range (Exp)2 Hz to 2 kHz
-
Input Frequency Range30 Hz to 16 kHz
-
ControlsShift knob, Scale switch, Squelch threshold knob, Zero adjust, Mix control
-
CV InputsFor frequency shift control
-
OutputsUpward-shifted (A), Downward-shifted (B), Mix output
-
Power110 mA @ +12 V, 110 mA @ -12 V
-
Size14 TE (Eurorack width), 2.8 inches depth
