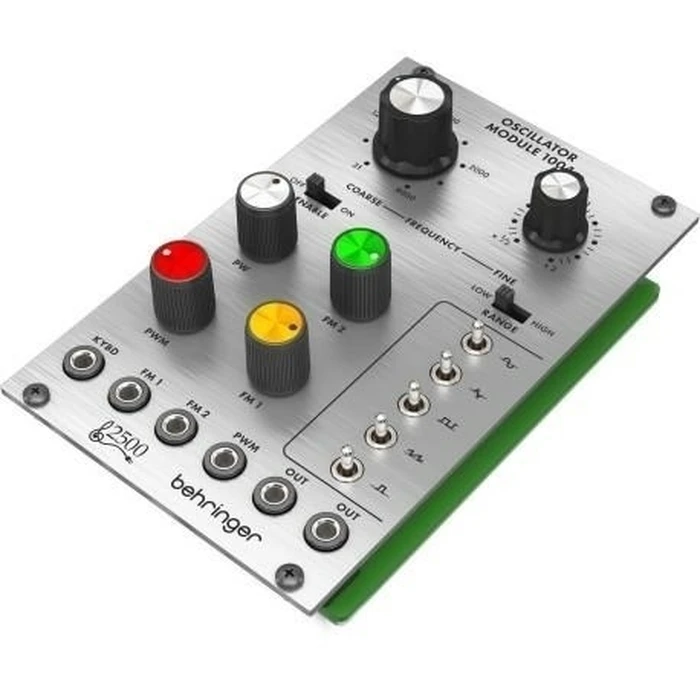

The Behringer 1004 Oscillator Module from the 2500 series is a remarkable piece of equipment for any analog synth enthusiast. This compact, Eurorack-compatible module replicates the vintage ARP 2500 circuitry, ensuring an authentic sound experience reminiscent of the 1970s.
One of the standout features of this module is its Analog dual-core VCO. It offers a range of five basic waveforms, which include:
- Sine
- Triangle
- Square
- Sawtooth
- Pulse
Each waveform can be individually controlled, allowing for extensive sound design possibilities. Waveform controls enable users to mute, mix, or invert the waveforms via dedicated toggle switches.
Another key aspect is the Tuning controls, featuring coarse and fine knobs along with a frequency range switch, including a distinct LFO mode. The frequency can vary from 0.06 Hz to 16 Hz, which opens up various modulation options.
Additionally, the module has multiple Modulation inputs. Two frequency modulation inputs and a dedicated pulse width modulation input provide flexibility for integration with other voltage sources. For those needing dynamic pitch control, there's also a 1V/octave keyboard CV input.
When it comes to physical specifications, this module fits the standard Eurorack format with a width of 16 HP and dimensions of 46 x 81 x 129 mm. It has a weight of approximately 0.17 kg and a current consumption of 60mA (+12V) and 50mA (-12V).
In summary, the Behringer 1004 Oscillator Module is designed for both beginners and seasoned synthesizers, delivering rich and dynamic sounds with vintage accuracy.
-
TypeAnalog dual-core VCO
-
WaveformsSine, Triangle, Square, Sawtooth, Pulse
-
Modulation InputsTwo VCO frequency modulation inputs, Pulse width modulation input, 1V/octave keyboard CV input
-
Tuning ControlCoarse and fine frequency tuning knobs, frequency range switch
-
LFO Mode Frequency Range0.06 Hz to 16 Hz
-
Pulse Width ControlAdjustable pulse width modulation
-
Parallel OutputsTwo parallel oscillator outputs
-
Width16 HP
-
Dimensions46 x 81 x 129 mm
-
Weight0.17 kg
-
Current Consumption+12V 60mA, -12V 50mA
Ratings
Description
The Behringer 1004 Oscillator Module from the 2500 series is a remarkable piece of equipment for any analog synth enthusiast. This compact, Eurorack-compatible module replicates the vintage ARP 2500 circuitry, ensuring an authentic sound experience reminiscent of the 1970s.
One of the standout features of this module is its Analog dual-core VCO. It offers a range of five basic waveforms, which include:
- Sine
- Triangle
- Square
- Sawtooth
- Pulse
Each waveform can be individually controlled, allowing for extensive sound design possibilities. Waveform controls enable users to mute, mix, or invert the waveforms via dedicated toggle switches.
Another key aspect is the Tuning controls, featuring coarse and fine knobs along with a frequency range switch, including a distinct LFO mode. The frequency can vary from 0.06 Hz to 16 Hz, which opens up various modulation options.
Additionally, the module has multiple Modulation inputs. Two frequency modulation inputs and a dedicated pulse width modulation input provide flexibility for integration with other voltage sources. For those needing dynamic pitch control, there's also a 1V/octave keyboard CV input.
When it comes to physical specifications, this module fits the standard Eurorack format with a width of 16 HP and dimensions of 46 x 81 x 129 mm. It has a weight of approximately 0.17 kg and a current consumption of 60mA (+12V) and 50mA (-12V).
In summary, the Behringer 1004 Oscillator Module is designed for both beginners and seasoned synthesizers, delivering rich and dynamic sounds with vintage accuracy.
Technical Specifications
-
TypeAnalog dual-core VCO
-
WaveformsSine, Triangle, Square, Sawtooth, Pulse
-
Modulation InputsTwo VCO frequency modulation inputs, Pulse width modulation input, 1V/octave keyboard CV input
-
Tuning ControlCoarse and fine frequency tuning knobs, frequency range switch
-
LFO Mode Frequency Range0.06 Hz to 16 Hz
-
Pulse Width ControlAdjustable pulse width modulation
-
Parallel OutputsTwo parallel oscillator outputs
-
Width16 HP
-
Dimensions46 x 81 x 129 mm
-
Weight0.17 kg
-
Current Consumption+12V 60mA, -12V 50mA
