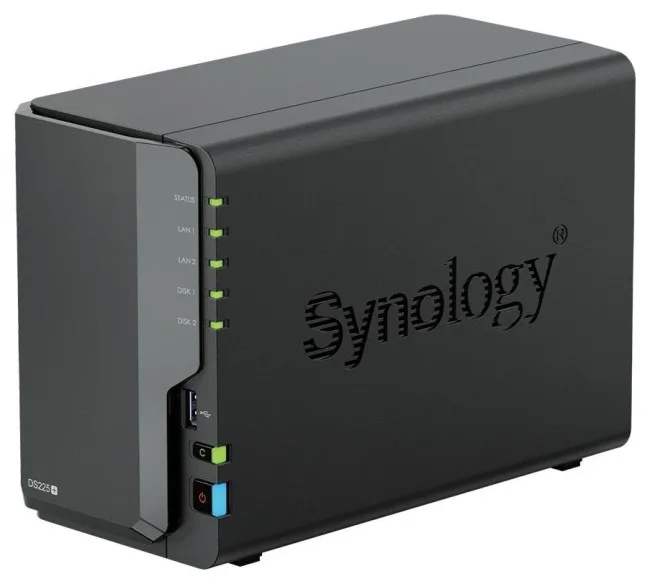

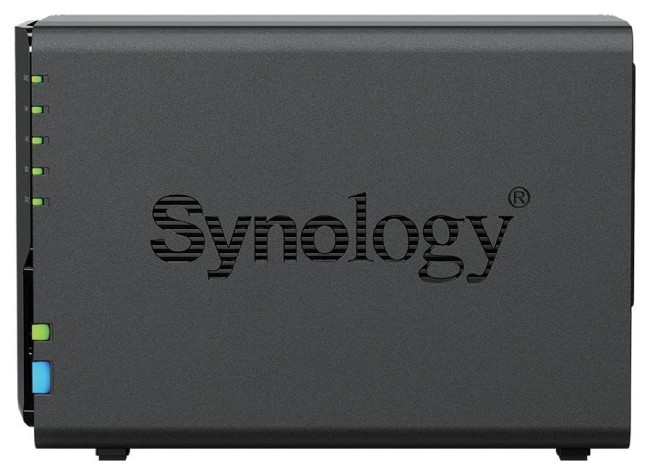

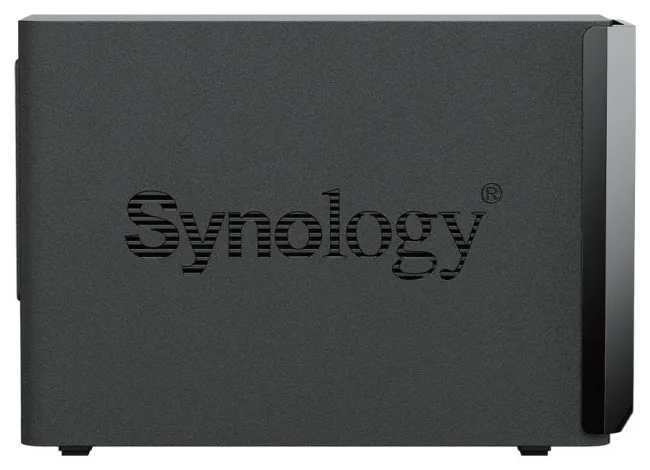

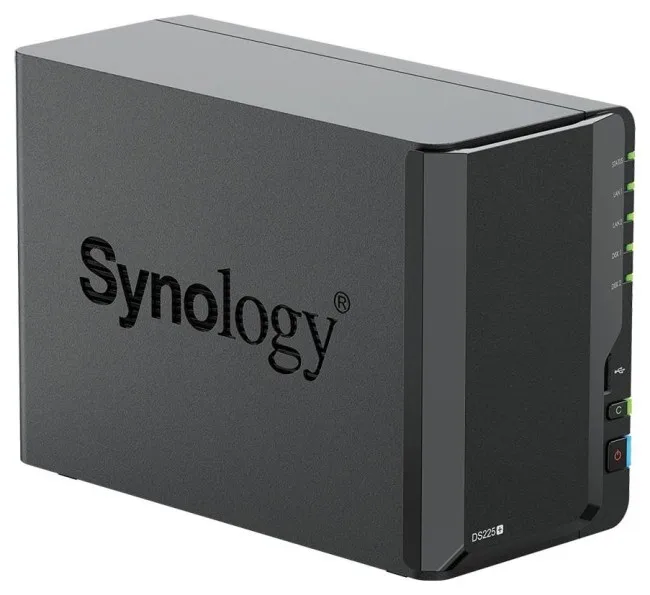

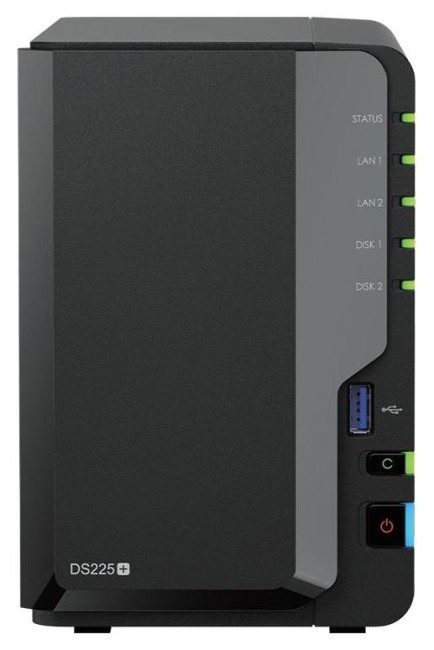

Synology DiskStation DS225+ with 2× HAT3300-4T (Bundle, 8TB installed)

Description

Technical Specifications

• Brand
  Synology
• Model
  DiskStation DS225+
• SKU
  NET-NAS-SYN-376
• EAN
  5907772509326
• MPN
  DS225+-8T-00-2
• Category
  Electronics > Networks and communication > NAS - file servers
• Bundle contents
  DS225+ NAS chassis, 2× Synology HAT3300-4T (4 TB each), power adapter, Ethernet cable, accessories
• Drive bays
  2
• Supported drive types
  3.5" / 2.5" SATA HDD/SSD
• Included memory
  2 GB DDR4 (soldered/installed)
• Maximum memory
  6 GB (total)
• Processor
  Intel Celeron J4125 (quad-core, 2.0–2.7 GHz)
• Integrated GPU
  Intel UHD Graphics (integrated in CPU)

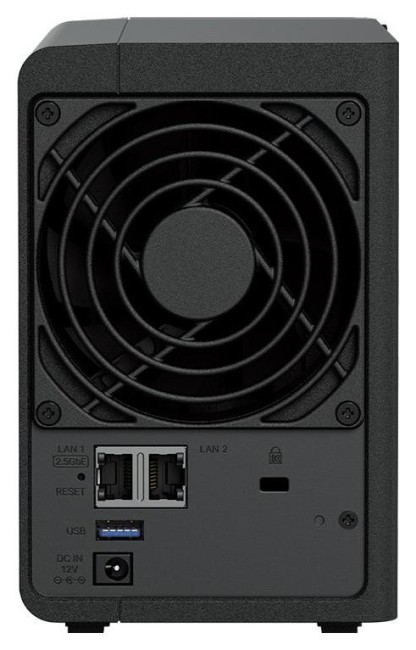

• Networking
  1× 2.5GbE RJ-45, 1× 1GbE RJ-45
• USB ports
  2× USB 3.2 Gen 1 (front and rear)
• Cooling
  92 mm cooling fan
• Physical dimensions (W×H×D)
  165 × 108 × 232.2 mm
• Unit weight
  ~1300 g
• Package weight (estimated)
  ~3500 g
• Included drives
  2× Synology HAT3300-4T (4 TB each)
• Raw supported capacity
  Up to 48 TB (model spec)
• Maximum single volume size
  Up to 108 TB
• Maximum internal volumes
  32
• RAID modes supported
  Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1
• RAID migration
  Basic to RAID 1 supported
• Sequential performance
  >282 MB/s read, >217 MB/s write (Synology spec)
• Surveillance support
  Up to 25 IP cameras (marketing figure)
• Material / chassis
  Plastic/metal compact chassis (black)
• HAT3300 drive warranty
  3 years (Synology HAT3000-family typical)
• Power consumption
  Not specified (refer to Synology product page)
• Use cases
  Backups, file sharing, synchronization, small surveillance, multimedia serving
