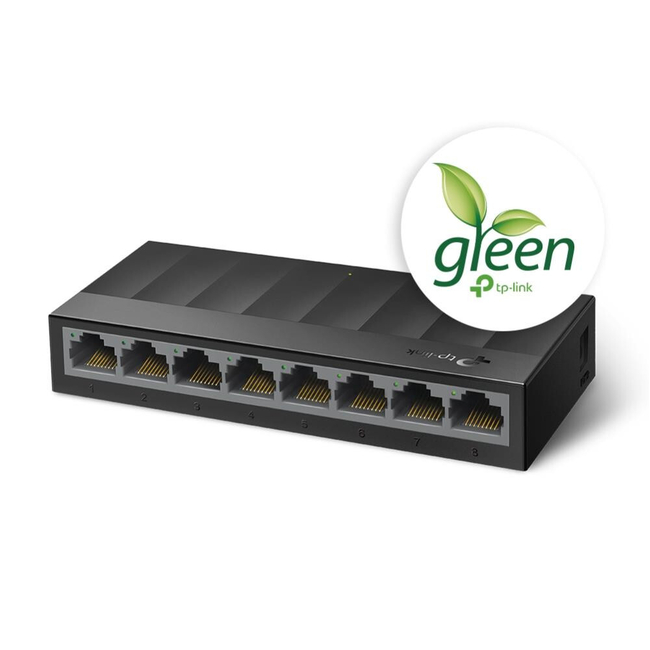

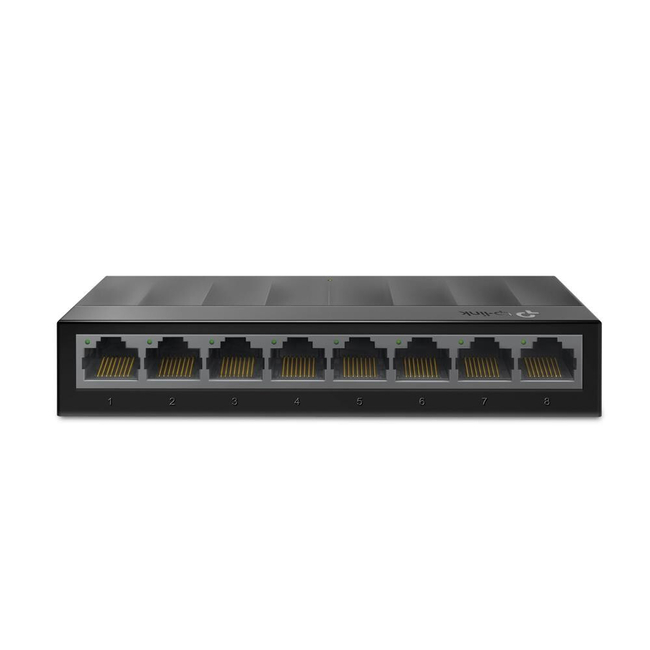

Network Switch TP-Link TL-LS1008G 8x 10/100/1000Mbps v1

Technical Specifications

• Housing material
  Plastic
• Wall mountable
  Y
• Product colour
  Black
• Power consumption (max)
  3.9 W
• Power supply included
  Y
• Heat dissipation
  13.299 BTU/h
• Storage relative humidity (H-H)
  5 - 90%
• Storage temperature (T-T)
  -40 - 70 °C
• Operating relative humidity (H-H)
  10 - 90%
• Operating temperature (T-T)
  0 - 40 °C
• Switch type
  Unmanaged
• Height
  23 mm
• Depth
  66.5 mm
• Width
  127 mm
• Auto-negotiation
  Y
• Auto MDI/MDI-X
  Y
• 10G support
  N
• Flow control support
  Y
• Networking standards
  IEEE 802.3x
• Quick start guide
  Y
• Basic switching RJ-45 Ethernet ports quantity
  8
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Jumbo frames
  16000
• Packet buffer memory
  1.5 MB
• Jumbo frames support
  Y
• MAC address table
  4000 entries
• Store-and-forward
  Y
• Forwarding rate
  11.9 Mpps
• Switching capacity
  16 Gbit/s
• Power over Ethernet (PoE)
  N
• Certification
  CE, FCC, RoHS
