The AXON-VIDEO-IP-4POE is a 4-channel Ethernet surge protector designed for IP video surveillance networks. It provides combined protection for data and PoE/PoE+ power lines over 10/100/1000 Mbps links. The unit protects all 8 twisted-pair conductors, uses gas discharge arrestors to divert surge...
More

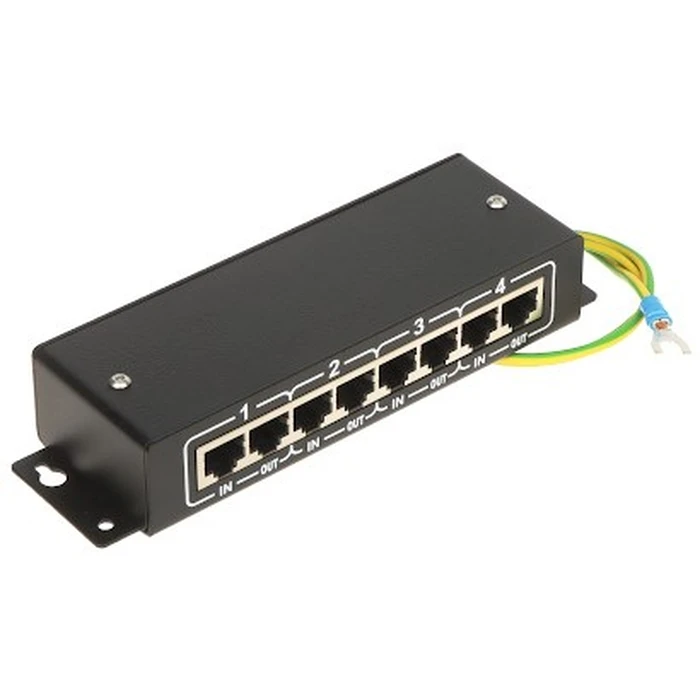

Surge Protector AXON-VIDEO-IP-4POE
Product Code: 1127677233
Available in 4 - 10 days
144,09 €
or
4,50€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The AXON-VIDEO-IP-4POE is a 4-channel Ethernet surge protector designed for IP video surveillance networks. It provides combined protection for data and PoE/PoE+ power lines over 10/100/1000 Mbps links. The unit protects all 8 twisted-pair conductors, uses gas discharge arrestors to divert surge currents to ground, and features shielded RJ45 connectors to maintain STP continuity. Housed in a metal enclosure for mechanical and electromagnetic shielding. Typical use: inline protection for PoE network cameras and other PoE devices. Unit dimensions: 167 × 50 × 32 mm. Product weight: approx. 400 g.
-
BrandAXON
-
Model / MPNAXON-VIDEO-IP-4POE
-
EAN5904743335502
-
SKUWLONONWCRRTXF
-
Product TypeEthernet/PoE surge protector for IP CCTV
-
Channels / Protected paths4
-
ConnectorsShielded RJ45 (in/out)
-
Network speed support10/100/1000 Mbps (Gigabit Ethernet)
-
PoE supportYes (PoE / PoE+ compatible)
-
Protected conductorsAll 8 twisted-pair wires (1,2,3,4,5,6,7,8)
-
Surge protection elementsGas discharge tubes (gas arresters)
-
Circuit protection level (line-to-line)125 V
-
Circuit protection level (line-to-ground)600 V
-
Maximum voltage rating120 V
-
Housing materialMetal (powder coated)
-
Shield continuityYes (STP continuity via shielded RJ45)
-
Dimensions (W×D×H)167 × 50 × 32 mm
-
Product weight400 g
-
Package weight (estimated)500 g
-
Standards / CertificationEN 61643-21
-
Mounting / InstallationInline on Ethernet cabling (desktop/inline)
-
Intended useProtection of IP cameras, PoE network devices, CCTV video networks
Ratings
Description
The AXON-VIDEO-IP-4POE is a 4-channel Ethernet surge protector designed for IP video surveillance networks. It provides combined protection for data and PoE/PoE+ power lines over 10/100/1000 Mbps links. The unit protects all 8 twisted-pair conductors, uses gas discharge arrestors to divert surge currents to ground, and features shielded RJ45 connectors to maintain STP continuity. Housed in a metal enclosure for mechanical and electromagnetic shielding. Typical use: inline protection for PoE network cameras and other PoE devices. Unit dimensions: 167 × 50 × 32 mm. Product weight: approx. 400 g.
Technical Specifications
-
BrandAXON
-
Model / MPNAXON-VIDEO-IP-4POE
-
EAN5904743335502
-
SKUWLONONWCRRTXF
-
Product TypeEthernet/PoE surge protector for IP CCTV
-
Channels / Protected paths4
-
ConnectorsShielded RJ45 (in/out)
-
Network speed support10/100/1000 Mbps (Gigabit Ethernet)
-
PoE supportYes (PoE / PoE+ compatible)
-
Protected conductorsAll 8 twisted-pair wires (1,2,3,4,5,6,7,8)
-
Surge protection elementsGas discharge tubes (gas arresters)
-
Circuit protection level (line-to-line)125 V
-
Circuit protection level (line-to-ground)600 V
-
Maximum voltage rating120 V
-
Housing materialMetal (powder coated)
-
Shield continuityYes (STP continuity via shielded RJ45)
-
Dimensions (W×D×H)167 × 50 × 32 mm
-
Product weight400 g
-
Package weight (estimated)500 g
-
Standards / CertificationEN 61643-21
-
Mounting / InstallationInline on Ethernet cabling (desktop/inline)
-
Intended useProtection of IP cameras, PoE network devices, CCTV video networks
