The SCHELINGER BEMK-A51-SPD02-4P-B+C is a 4-pole low-voltage surge protective device offering combined Type 1 + Type 2 (B+C) protection. It protects installations from direct and indirect lightning effects and switching surges. Key electricals: Iimp 8 kA (10/350 µs), Imax 50 kA (8/20 µs), nominal...
More

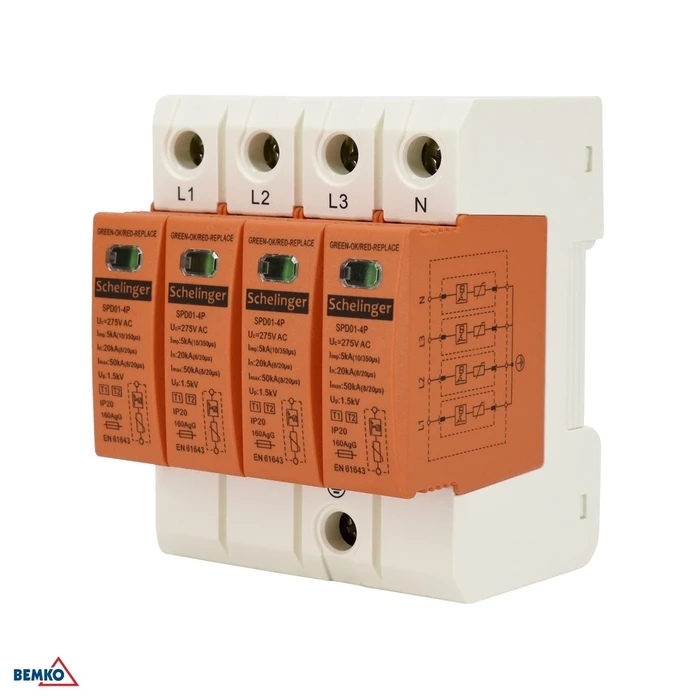

Surge Protective Device 4P 8kA (10/350) Class T1+T2 (B+C) SCHELINGER (BEMK-A51-SPD02-4P-B+C)
Product Code: 1127677521
Available in 4 - 10 days
56,80 €
or
1,77€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The SCHELINGER BEMK-A51-SPD02-4P-B+C is a 4-pole low-voltage surge protective device offering combined Type 1 + Type 2 (B+C) protection. It protects installations from direct and indirect lightning effects and switching surges. Key electricals: Iimp 8 kA (10/350 µs), Imax 50 kA (8/20 µs), nominal discharge In ≈ 25 A, continuous operating voltage Uc 275 V AC, protection level Up ≤ 1.5 kV. Unit mounts on TH-35/DIN-rail, rated IP20, includes visual status indication and replaceable modules. Intended for TN-S systems and full 4-pole protection (all phases + neutral). Standards: PN-EN 61643-11; CE. Device dimensions ~90×70×68 mm. Some listings indicate a 5-year warranty.
-
BrandSCHELINGER
-
ModelBEMK-A51-SPD02-4P-B+C
-
SKUWLONONWCRSESC
-
EAN5900280958143
-
MPNBEMK-A51-SPD02-4P-B+C
-
Product TypeSurge protective device / overvoltage arrester
-
Poles4P
-
Protection ClassT1+T2 (B+C)
-
Iimp (10/350 µs)8 kA
-
Imax (8/20 µs)50 kA
-
In (nominal discharge current)25 A
-
Uc (continuous operating voltage)275 V AC
-
Up (protection voltage level)≤1.5 kV
-
IP RatingIP20
-
MountingDIN rail TH-35 (TH-35)
-
Modules4
-
Dimensions90 × 70 × 68 mm
-
Weight~220 g
-
MaterialSelf‑extinguishing plastic enclosure
-
Visual Status IndicatorYes
-
Replaceable Inserts/ModulesYes
-
Compatible SystemsTN-S, low-voltage electrical installations
-
StandardsPN-EN 61643-11; CE
-
WarrantyTypically listed as 5 years (vendor dependent)
-
Typical ApplicationsProtection against direct lightning, indirect lightning, and switching surges
-
ColorGray/white (typical DIN-rail module styling)
Ratings
Description
The SCHELINGER BEMK-A51-SPD02-4P-B+C is a 4-pole low-voltage surge protective device offering combined Type 1 + Type 2 (B+C) protection. It protects installations from direct and indirect lightning effects and switching surges. Key electricals: Iimp 8 kA (10/350 µs), Imax 50 kA (8/20 µs), nominal discharge In ≈ 25 A, continuous operating voltage Uc 275 V AC, protection level Up ≤ 1.5 kV. Unit mounts on TH-35/DIN-rail, rated IP20, includes visual status indication and replaceable modules. Intended for TN-S systems and full 4-pole protection (all phases + neutral). Standards: PN-EN 61643-11; CE. Device dimensions ~90×70×68 mm. Some listings indicate a 5-year warranty.
Technical Specifications
-
BrandSCHELINGER
-
ModelBEMK-A51-SPD02-4P-B+C
-
SKUWLONONWCRSESC
-
EAN5900280958143
-
MPNBEMK-A51-SPD02-4P-B+C
-
Product TypeSurge protective device / overvoltage arrester
-
Poles4P
-
Protection ClassT1+T2 (B+C)
-
Iimp (10/350 µs)8 kA
-
Imax (8/20 µs)50 kA
-
In (nominal discharge current)25 A
-
Uc (continuous operating voltage)275 V AC
-
Up (protection voltage level)≤1.5 kV
-
IP RatingIP20
-
MountingDIN rail TH-35 (TH-35)
-
Modules4
-
Dimensions90 × 70 × 68 mm
-
Weight~220 g
-
MaterialSelf‑extinguishing plastic enclosure
-
Visual Status IndicatorYes
-
Replaceable Inserts/ModulesYes
-
Compatible SystemsTN-S, low-voltage electrical installations
-
StandardsPN-EN 61643-11; CE
-
WarrantyTypically listed as 5 years (vendor dependent)
-
Typical ApplicationsProtection against direct lightning, indirect lightning, and switching surges
-
ColorGray/white (typical DIN-rail module styling)
