4-pole combined surge arrester (Class B+C / T1+T2) for three-phase AC systems with neutral (L1, L2, L3 + N). DIN-rail (35 mm) mounted device with visual status indicator. Listed maximum discharge current in retail/spec listings: 6 kA. Intended for protection against lightning-induced and switching...
More

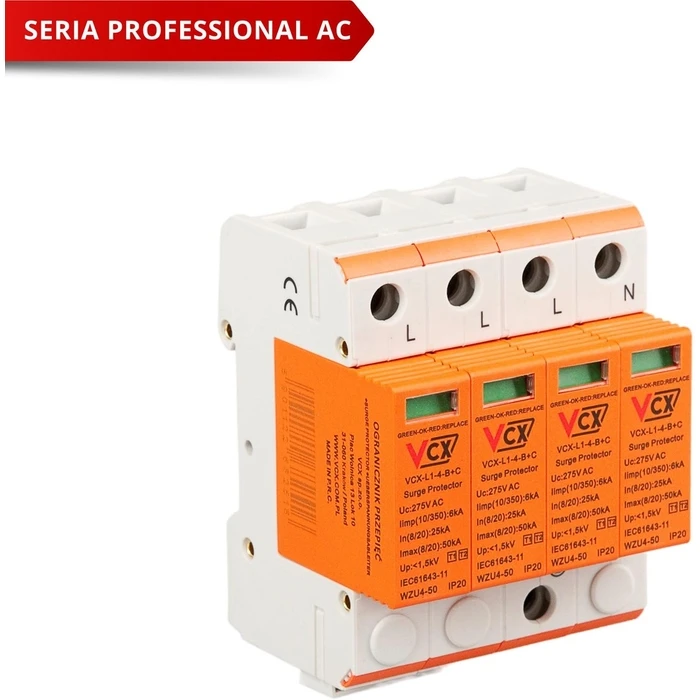

Surge Arrester Class B+C 4P (T1T2) 6kA VCX Prof
Product Code: 1127676706
Available in 4 - 10 days
50,73 €
or
1,58€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
4-pole combined surge arrester (Class B+C / T1+T2) for three-phase AC systems with neutral (L1, L2, L3 + N). DIN-rail (35 mm) mounted device with visual status indicator. Listed maximum discharge current in retail/spec listings: 6 kA. Intended for protection against lightning-induced and switching surges in LV installations.
-
Product NameSurge Arrester Class B+C 4P (T1T2) 6kA VCX Prof
-
SKUWLONONWCRPZJI
-
EAN / Barcode5905440090008
-
MPNBC4P PROF. 6KA N1UE1
-
BrandVCX Prof
-
Poles4P (L1, L2, L3 + N)
-
Protection ClassClass B + C (T1 + T2 combined)
-
Maximum Discharge Current6 kA (listed in product title/retailer pages)
-
Network TypeAC (three-phase with neutral)
-
Mounting35 mm DIN rail
-
Status IndicatorYes (mechanical/visual indicator)
-
IP RatingIP20 (when installed in distribution board)
-
Weight70 g (product weight listed on retailer page)
-
Package Dimensions (approx.)8 x 6 x 10 cm (W x L x H) — estimated for retail packaging
-
Package Weight (approx.)100 g (estimated)
-
ApplicationLow-voltage electrical installations; protect distribution boards and connected equipment
-
DesignVaristor-based design (typical for VCX Prof family; indicated in related product family documentation)
-
Replaceable ModuleNot specified in listing
-
Operating Temperature RangeNot specified in available listings
-
Material / HousingPolymer/plastic housing (typical for DIN-rail surge modules; exact material not specified)
-
Mounting PositionDIN-rail vertical mount (standard for distribution boards)
Ratings
Description
4-pole combined surge arrester (Class B+C / T1+T2) for three-phase AC systems with neutral (L1, L2, L3 + N). DIN-rail (35 mm) mounted device with visual status indicator. Listed maximum discharge current in retail/spec listings: 6 kA. Intended for protection against lightning-induced and switching surges in LV installations.
Technical Specifications
-
Product NameSurge Arrester Class B+C 4P (T1T2) 6kA VCX Prof
-
SKUWLONONWCRPZJI
-
EAN / Barcode5905440090008
-
MPNBC4P PROF. 6KA N1UE1
-
BrandVCX Prof
-
Poles4P (L1, L2, L3 + N)
-
Protection ClassClass B + C (T1 + T2 combined)
-
Maximum Discharge Current6 kA (listed in product title/retailer pages)
-
Network TypeAC (three-phase with neutral)
-
Mounting35 mm DIN rail
-
Status IndicatorYes (mechanical/visual indicator)
-
IP RatingIP20 (when installed in distribution board)
-
Weight70 g (product weight listed on retailer page)
-
Package Dimensions (approx.)8 x 6 x 10 cm (W x L x H) — estimated for retail packaging
-
Package Weight (approx.)100 g (estimated)
-
ApplicationLow-voltage electrical installations; protect distribution boards and connected equipment
-
DesignVaristor-based design (typical for VCX Prof family; indicated in related product family documentation)
-
Replaceable ModuleNot specified in listing
-
Operating Temperature RangeNot specified in available listings
-
Material / HousingPolymer/plastic housing (typical for DIN-rail surge modules; exact material not specified)
-
Mounting PositionDIN-rail vertical mount (standard for distribution boards)
