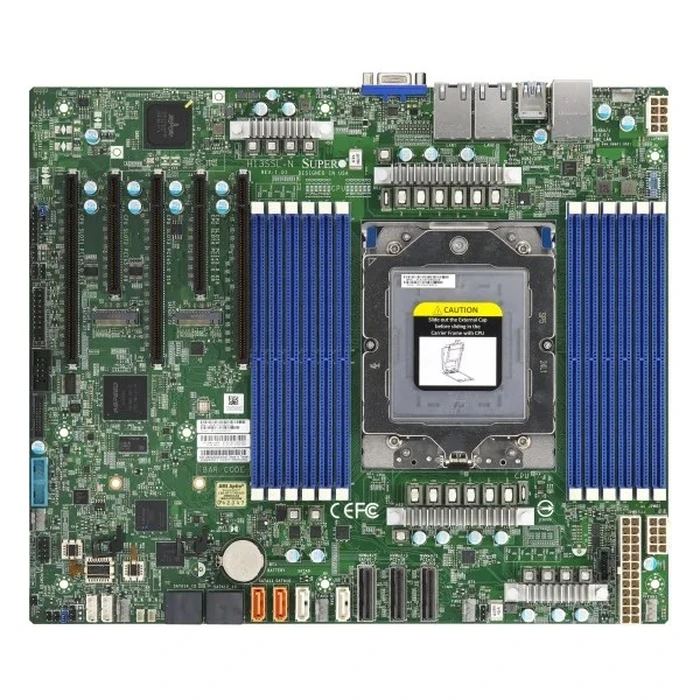

Supermicro MBD-H13SSL-N-O Socket SP5 ATX Server Motherboard for AMD EPYC 9004 (DDR5)

Description

Technical Specifications

• Brand
  Supermicro
• Model
  MBD-H13SSL-N-O (MBD-H13SSL-O / PLGSUMSAM0013)
• Form Factor
  ATX (304.8 mm x 256.5 mm)
• CPU Socket
  Socket SP5
• Compatible Processors
  AMD EPYC 9004 series
• Chipset
  SoC (EPYC platform integrated)
• Memory Type
  DDR5 SDRAM
• Memory Slots
  12 DIMM slots
• Maximum Memory
  Up to 3 TB
• Memory ECC
  ECC supported
• Supported Memory Speeds
  4800 MHz (standard), supports up to 6000 MT/s (platform dependent)
• Memory Voltage
  1.1 V
• Memory Module Capacities
  16GB, 24GB, 32GB, 48GB, 64GB, 128GB
• Memory Channel
  Dual Channel
• PCIe Slots (Gen5 x16)
  3 x PCIe x16 (Gen5.x)
• PCIe x16 (noted)
  2 x PCIe x16 (PCIe 5.0) — primary slots (spec documents list 2/3)
• PCIe x8 Slots
  2
• M.2 Slots
  2 x M.2 (PCIe 4.0)
• SATA Ports
  8 x SATA III (6 Gb/s)
• Supported Drives
  HDD & SSD (SATA III, M.2 NVMe)
• LAN Controller
  Broadcom BCM5720
• Ethernet LAN
  Gigabit Ethernet (1x RJ-45)
• IPMI LAN
  Yes (RJ-45)
• USB Rear Ports
  Up to 6 x USB 3.2 Gen1 (Type-A) (specs list 6 Type-A rear)
• USB Internal Headers
  2 x USB 3.2 Gen1 headers
• VGA
  1 x VGA (D-Sub)
• COM Port
  1
• TPM Connector
  Yes
• Chassis Fan Connectors
  6
• Audio
  7.1 channel
• BIOS Type
  AMI
• BIOS Memory Size
  32 Mbit
• SMBIOS Version
  3.5
• ACPI Version
  6.4
• Operating Temperature
  10 - 35 °C
• Storage Temperature
  -40 - 70 °C
• Operating Humidity
  8 - 90% RH
• Storage Humidity
  5 - 95% RH
• Number of HDDs Supported
  8
• System Type
  Server / Desktop (server-class motherboard)
• Warnings
  May contain electronic components hazardous to health — avoid direct contact; use in dry and well-ventilated area; do not open/disassemble
