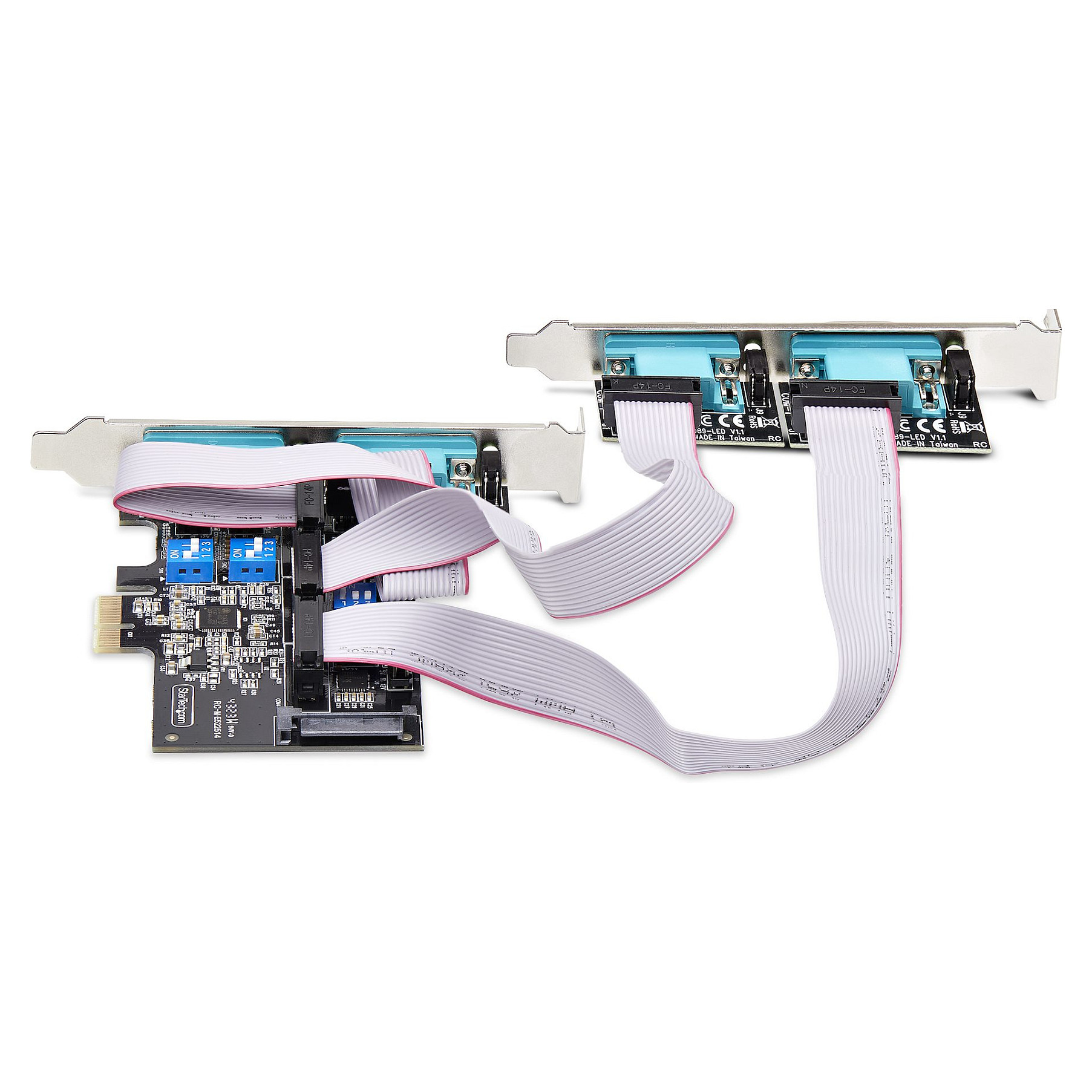

StarTech 4-Port PCI Express Serial Host Controller card (Model PS74ADF-SERIAL-CARD, SKU 21199675, EAN 0065030903141). Installs in a PCIe x1 slot and provides 4 external DB9 serial ports configurable independently for RS-232, RS-422 or 2/4-wire RS-485. Uses a UART compatible with 16C1050 / 16950...
More
STARTECH.COM 4-Port Serial PCIe Card PCI Express to RS232/RS422/RS485 DB9 Serial Card 16C1050 UART ESD Protection Windows/Linux (Model: PS74ADF-SERIAL-CARD, SKU: 21199675)
Product Code: 1173701787
Available in 4 - 6 days
254,41 €
or
7,94€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 764 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
StarTech 4-Port PCI Express Serial Host Controller card (Model PS74ADF-SERIAL-CARD, SKU 21199675, EAN 0065030903141). Installs in a PCIe x1 slot and provides 4 external DB9 serial ports configurable independently for RS-232, RS-422 or 2/4-wire RS-485. Uses a UART compatible with 16C1050 / 16950 (product family references ASIX AX99100A-based controller); supports up to ~921.6 kbps per port with 256-byte FIFO. Features per-port activity LEDs, DIP switches for port settings, on-board jumper-selectable power to pin 9 (12 V / 1.5 A, 5 V / 1.5 A or none), ESD protection, low-profile form factor with full-height bracket included, and driver support for Windows (XP and later) and Linux. Suitable for PCs, servers, POS, industrial automation and instrumentation. Manufacturer warranty noted as 10 years (Bring-In) by reseller listings. Product weight ~264 g. Packaging dimensions and pack weight listed here are estimates.
-
ManufacturerStarTech
-
ModelPS74ADF-SERIAL-CARD
-
SKU21199675
-
MPNPS74ADF-SERIAL-CARD
-
EAN / Barcode0065030903141
-
Interface to HostPCI Express x1
-
External Ports4 x DB9 (serial)
-
Supported ProtocolsRS-232, RS-422, RS-485
-
Port ConfigurationEach port independently configurable as RS-232, RS-422 or 2-/4-wire RS-485
-
UART16C1050 / 16950 compatible (product references ASIX AX99100A-based controller)
-
Max Data RateUp to ~921.6 kbps per port
-
FIFO Buffer256-byte FIFO
-
IndicatorsActivity LED per port
-
DIP SwitchesYes, for port configuration
-
On-board Power OptionsJumper-selectable: 12 V / 1.5 A per port, 5 V / 1.5 A per port, or no power on pin 9
-
ESD ProtectionYes
-
Form FactorLow profile (LP) with full-height bracket included
-
Operating SystemsWindows XP and later, Linux
-
Use CasesPCs, servers, POS terminals, industrial automation, sensors, medical devices, scanners, oscilloscopes
-
Product Weight264 g
-
Package Weight (estimated)500 g
-
Package Dimensions (estimated L x W x H)22 x 14 x 4 cm
-
Warranty10 year Bring-In (reseller listing)
Ratings
Description
StarTech 4-Port PCI Express Serial Host Controller card (Model PS74ADF-SERIAL-CARD, SKU 21199675, EAN 0065030903141). Installs in a PCIe x1 slot and provides 4 external DB9 serial ports configurable independently for RS-232, RS-422 or 2/4-wire RS-485. Uses a UART compatible with 16C1050 / 16950 (product family references ASIX AX99100A-based controller); supports up to ~921.6 kbps per port with 256-byte FIFO. Features per-port activity LEDs, DIP switches for port settings, on-board jumper-selectable power to pin 9 (12 V / 1.5 A, 5 V / 1.5 A or none), ESD protection, low-profile form factor with full-height bracket included, and driver support for Windows (XP and later) and Linux. Suitable for PCs, servers, POS, industrial automation and instrumentation. Manufacturer warranty noted as 10 years (Bring-In) by reseller listings. Product weight ~264 g. Packaging dimensions and pack weight listed here are estimates.
Technical Specifications
-
ManufacturerStarTech
-
ModelPS74ADF-SERIAL-CARD
-
SKU21199675
-
MPNPS74ADF-SERIAL-CARD
-
EAN / Barcode0065030903141
-
Interface to HostPCI Express x1
-
External Ports4 x DB9 (serial)
-
Supported ProtocolsRS-232, RS-422, RS-485
-
Port ConfigurationEach port independently configurable as RS-232, RS-422 or 2-/4-wire RS-485
-
UART16C1050 / 16950 compatible (product references ASIX AX99100A-based controller)
-
Max Data RateUp to ~921.6 kbps per port
-
FIFO Buffer256-byte FIFO
-
IndicatorsActivity LED per port
-
DIP SwitchesYes, for port configuration
-
On-board Power OptionsJumper-selectable: 12 V / 1.5 A per port, 5 V / 1.5 A per port, or no power on pin 9
-
ESD ProtectionYes
-
Form FactorLow profile (LP) with full-height bracket included
-
Operating SystemsWindows XP and later, Linux
-
Use CasesPCs, servers, POS terminals, industrial automation, sensors, medical devices, scanners, oscilloscopes
-
Product Weight264 g
-
Package Weight (estimated)500 g
-
Package Dimensions (estimated L x W x H)22 x 14 x 4 cm
-
Warranty10 year Bring-In (reseller listing)
