Somfy Modernization Kit Standard (MPN 1035042) is a wired roller-shutter renovation kit (KIT 8/60 / LT50 JET 8/17) for retrofitting/upgrading tube motors. Motor spec typically: 8 Nm torque, 17 rpm, ~90 W, 230 V AC 50 Hz, IP44, protection class I. Compatible with 60 mm 8‑sided shafts (SW60)....
More
Somfy 1035042 Standard Modernization Kit (Modernisierungskit) 8/17 SW60 - KIT 8/60 / LT50 JET 8/17
Product Code: 1173702406
Available in 4 - 6 days
341,53 €
or
10,67€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1025 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Somfy Modernization Kit Standard (MPN 1035042) is a wired roller-shutter renovation kit (KIT 8/60 / LT50 JET 8/17) for retrofitting/upgrading tube motors. Motor spec typically: 8 Nm torque, 17 rpm, ~90 W, 230 V AC 50 Hz, IP44, protection class I. Compatible with 60 mm 8‑sided shafts (SW60). Includes adapters, mitnehmer, motor bearings and cable pigtail. Intended installation by a qualified electrician. Suitable approx. for plastic shutters up to 4 m² and aluminium shutters up to 2.5 m².
-
BrandSomfy
-
Model/MPN1035042
-
EAN4040515206722
-
SKU21229371
-
Product TypeRoller-shutter modernization kit (tube motor retrofit kit)
-
Series/Kit familyKIT 8/60 / LT50 JET 8/17 / Modernisierungskit Standard
-
Torque8 Nm
-
Speed17 rpm
-
Power~90 W (retailer specification)
-
Voltage230 V AC, 50 Hz
-
Protection Class / IP RatingIP44, Protection class I
-
Mounting TypeBuilt-in / Einbau
-
Minimum tube / adapter50er (50 x 1.5) base adapter; compatible with SW60 (60 mm 8‑kant Welle)
-
Shaft compatibilitySW 60 (8‑kant); some retailers list SW70 compatibility for variants
-
Suitable shutter area (plastic)Up to ~4 m²
-
Suitable shutter area (aluminium)Up to ~2.5 m²
-
Motor length~525 mm (retailer reported motor length)
-
Motor outer diameter~48 mm (retailer reported)
-
MaterialAlloy / legated steel (motor set listing)
-

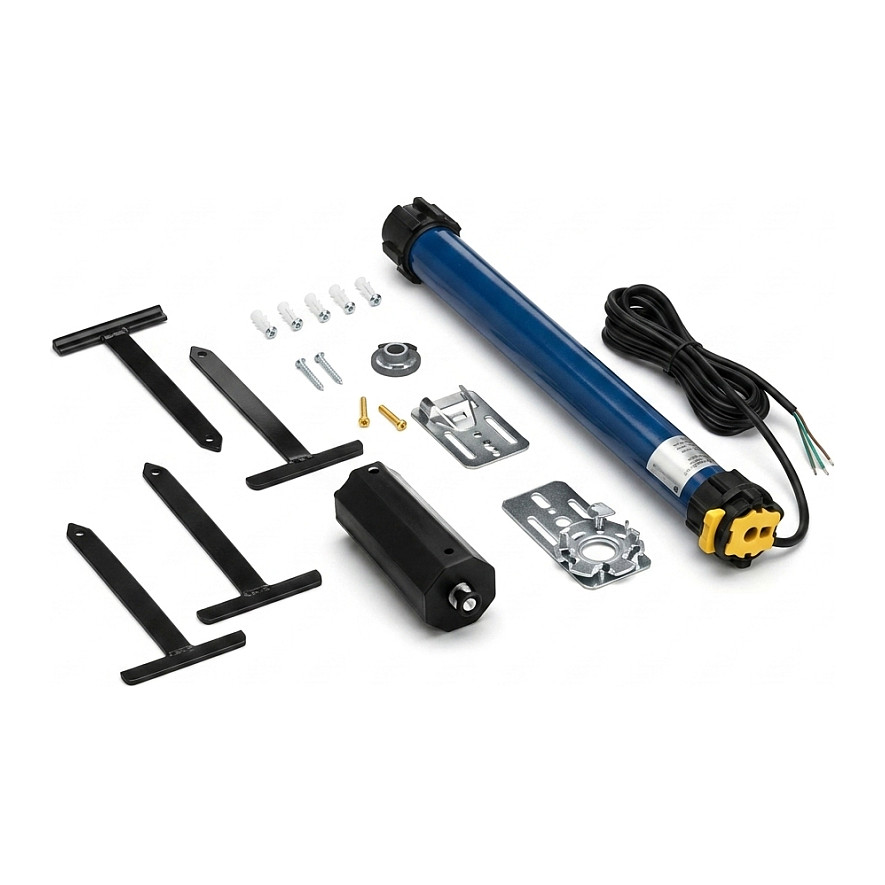

Included partsMotor, adapters for SW60, mitnehmer, motor bearings (Motorlager/Kugellager), cable pigtail, adjustment buttons (Einstelltasten)
-
Safety/Installation noteInstallation and electrical connections should be performed by a qualified electrician
-
CertificationsCE (per Somfy documentation)
-
NotesSome documentation for related Somfy motors lists different nominal powers; MPN 1035042 consistently identifies the kit across retailers
Ratings
Description
Somfy Modernization Kit Standard (MPN 1035042) is a wired roller-shutter renovation kit (KIT 8/60 / LT50 JET 8/17) for retrofitting/upgrading tube motors. Motor spec typically: 8 Nm torque, 17 rpm, ~90 W, 230 V AC 50 Hz, IP44, protection class I. Compatible with 60 mm 8‑sided shafts (SW60). Includes adapters, mitnehmer, motor bearings and cable pigtail. Intended installation by a qualified electrician. Suitable approx. for plastic shutters up to 4 m² and aluminium shutters up to 2.5 m².
Technical Specifications
-
BrandSomfy
-
Model/MPN1035042
-
EAN4040515206722
-
SKU21229371
-
Product TypeRoller-shutter modernization kit (tube motor retrofit kit)
-
Series/Kit familyKIT 8/60 / LT50 JET 8/17 / Modernisierungskit Standard
-
Torque8 Nm
-
Speed17 rpm
-
Power~90 W (retailer specification)
-
Voltage230 V AC, 50 Hz
-
Protection Class / IP RatingIP44, Protection class I
-
Mounting TypeBuilt-in / Einbau
-
Minimum tube / adapter50er (50 x 1.5) base adapter; compatible with SW60 (60 mm 8‑kant Welle)
-
Shaft compatibilitySW 60 (8‑kant); some retailers list SW70 compatibility for variants
-
Suitable shutter area (plastic)Up to ~4 m²
-
Suitable shutter area (aluminium)Up to ~2.5 m²
-
Motor length~525 mm (retailer reported motor length)
-
Motor outer diameter~48 mm (retailer reported)
-
MaterialAlloy / legated steel (motor set listing)
-
Included partsMotor, adapters for SW60, mitnehmer, motor bearings (Motorlager/Kugellager), cable pigtail, adjustment buttons (Einstelltasten)
-
Safety/Installation noteInstallation and electrical connections should be performed by a qualified electrician
-
CertificationsCE (per Somfy documentation)
-
NotesSome documentation for related Somfy motors lists different nominal powers; MPN 1035042 consistently identifies the kit across retailers
