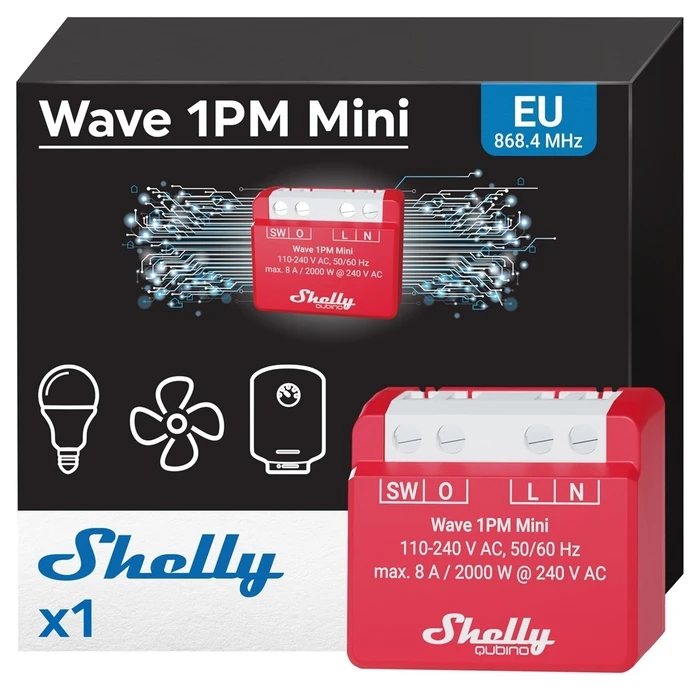

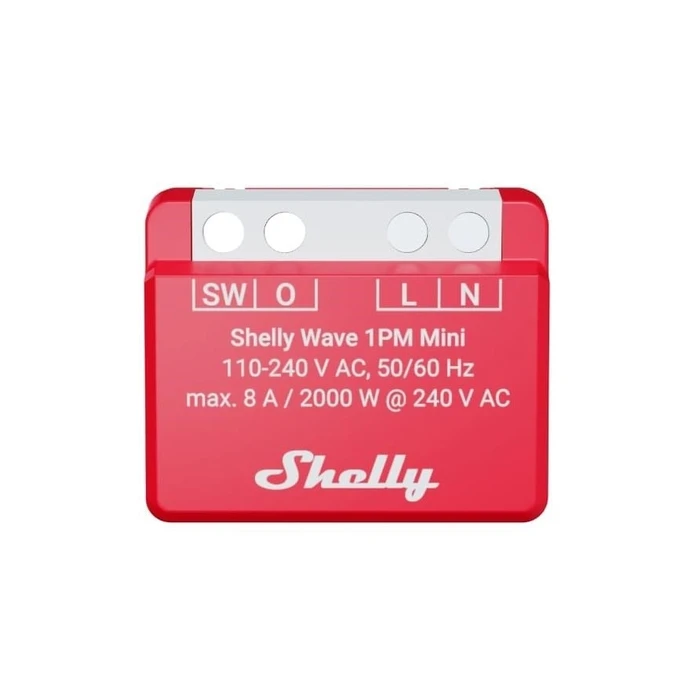

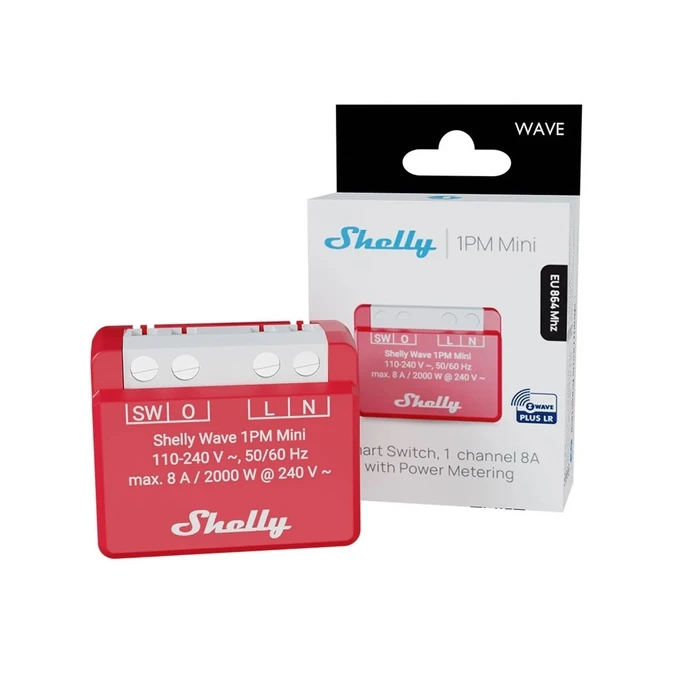

Smart Ενδιάμεσος Διακόπτης Shelly Wave 1PM Mini LR Smart Z-Wave Relay
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- Ship with ACS Courier
- Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
Pickup from BoxNow automated machine:
With BoxNow you can pick up your package from an Automated Pickup Machine near you at any time, 24/7. Cash on delivery available with an additional €1 fee.
-
Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Shelly Wave 1PM Mini LR is an exceptionally compact and intelligent intermediate switch equipped with energy measurement capabilities, designed for easy integration into smart home systems utilizing Z-Wave technology. This model supports both classic Z-Wave Plus (908.4 MHz) and the new Z-Wave Long Range (ZWLR) at 912 MHz, providing excellent distance and reliability in communication.
It is ideal for remote activation and deactivation of lighting, appliances, and other loads while providing accurate measurement of energy consumption (in Watt and kWh). The Shelly Wave 1PM Mini LR also functions as a repeater within the Z-Wave network, extending the network range and ensuring stable connectivity.
- Easy Installation: Quick setup with SmartStart support for automatic addition to Z-Wave networks.
- Advanced Features: Wireless firmware updates (OTA), and multiple security protocols (Unsecure, S0, S2 Unauthenticated, S2 Authenticated).
Overall, the Shelly Wave 1PM Mini LR emerges as the ideal solution for those seeking reliable, compact, and functional load control with advanced energy measurement and excellent performance within the Z-Wave network.
-
Supply Voltage110–240 V AC, 50/60 Hz
-
Max Current (AC)8 A
-
Max Power (AC)2000 W
-
Max Voltage (AC)240 V
-
Power MeasurementYes (Watt and kWh)
-
Standby Consumption< 0.3 W
-
Communication ProtocolZ-Wave (908.4 MHz and 912 MHz Z-Wave Long Range)
-
Indoor Rangeup to 80 m (Z-Wave Long Range), up to 40 m (Z-Wave Plus)
-
Outdoor Rangeup to 1000 m (Z-Wave Long Range)
-
Operating Temperature0°C to +40°C
-
Device Dimensions29 x 35 x 16 mm
-
Wired CommunicationSolid connection with wires
-
ProtectionOvervoltage, external protection with 10 A fuse (characteristic B or C, 6 kA)
Ratings
Description
The Shelly Wave 1PM Mini LR is an exceptionally compact and intelligent intermediate switch equipped with energy measurement capabilities, designed for easy integration into smart home systems utilizing Z-Wave technology. This model supports both classic Z-Wave Plus (908.4 MHz) and the new Z-Wave Long Range (ZWLR) at 912 MHz, providing excellent distance and reliability in communication.
It is ideal for remote activation and deactivation of lighting, appliances, and other loads while providing accurate measurement of energy consumption (in Watt and kWh). The Shelly Wave 1PM Mini LR also functions as a repeater within the Z-Wave network, extending the network range and ensuring stable connectivity.
- Easy Installation: Quick setup with SmartStart support for automatic addition to Z-Wave networks.
- Advanced Features: Wireless firmware updates (OTA), and multiple security protocols (Unsecure, S0, S2 Unauthenticated, S2 Authenticated).
Overall, the Shelly Wave 1PM Mini LR emerges as the ideal solution for those seeking reliable, compact, and functional load control with advanced energy measurement and excellent performance within the Z-Wave network.
Technical Specifications
-
Supply Voltage110–240 V AC, 50/60 Hz
-
Max Current (AC)8 A
-
Max Power (AC)2000 W
-
Max Voltage (AC)240 V
-
Power MeasurementYes (Watt and kWh)
-
Standby Consumption< 0.3 W
-
Communication ProtocolZ-Wave (908.4 MHz and 912 MHz Z-Wave Long Range)
-
Indoor Rangeup to 80 m (Z-Wave Long Range), up to 40 m (Z-Wave Plus)
-
Outdoor Rangeup to 1000 m (Z-Wave Long Range)
-
Operating Temperature0°C to +40°C
-
Device Dimensions29 x 35 x 16 mm
-
Wired CommunicationSolid connection with wires
-
ProtectionOvervoltage, external protection with 10 A fuse (characteristic B or C, 6 kA)
