Compact single temperature controller with 12V DC PWM fan speed regulation. Measures temperature from -20°C to 60°C and provides PWM output adjustable from 5% to 100%. Maximum fan output current is 0.8A. PCB dimensions 48 x 18 x 9 mm. Fan output connector XH-2P (2.54 mm), power/input connector...
More

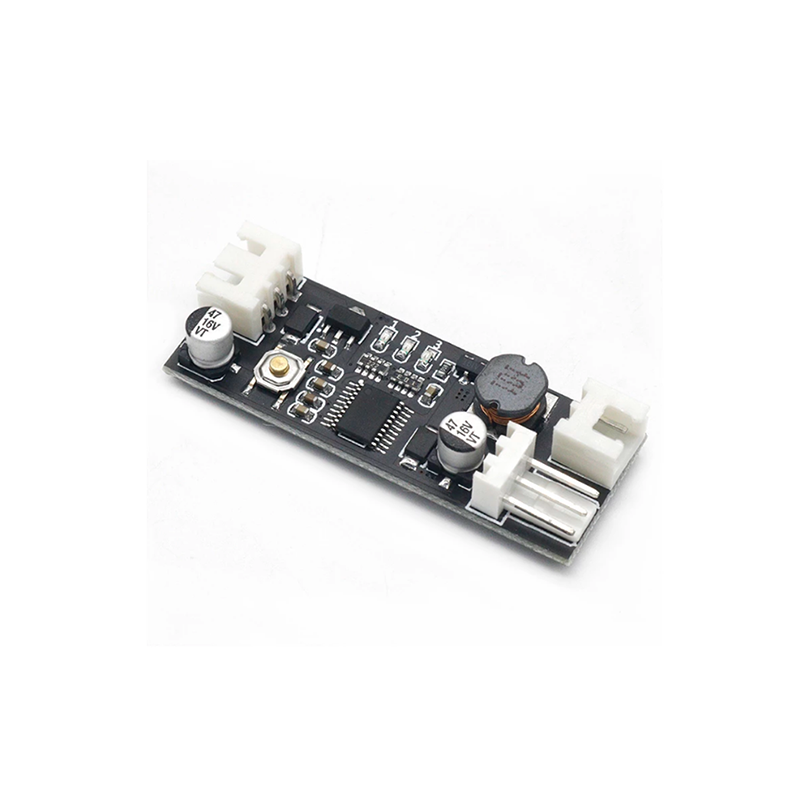

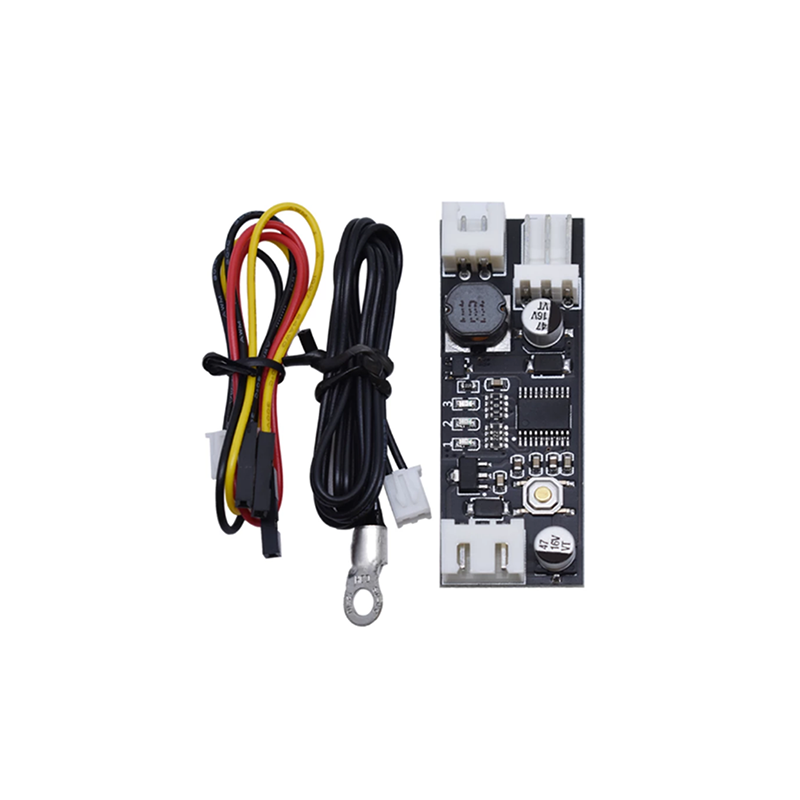

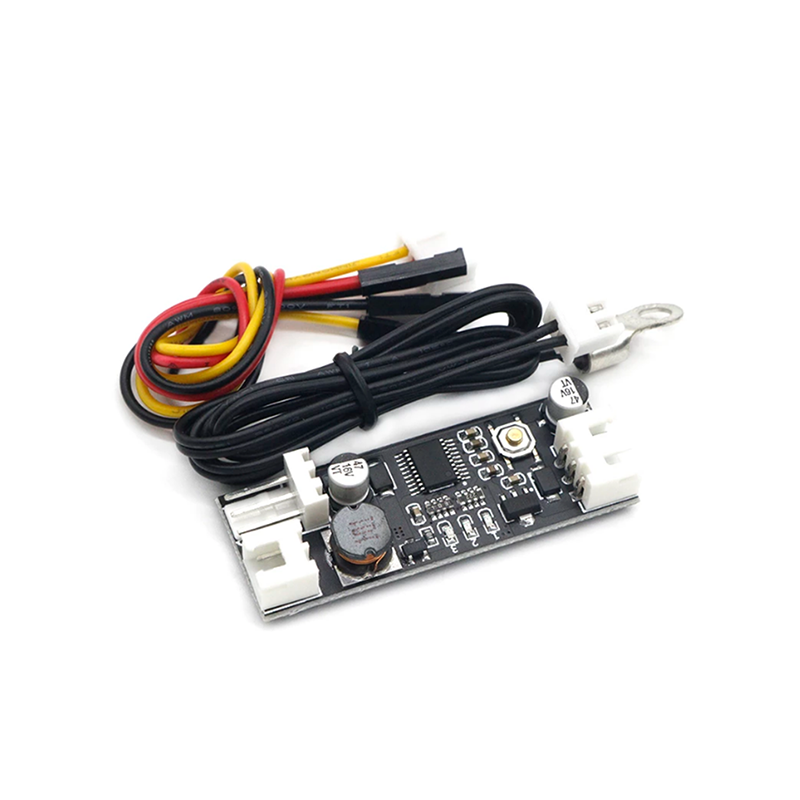

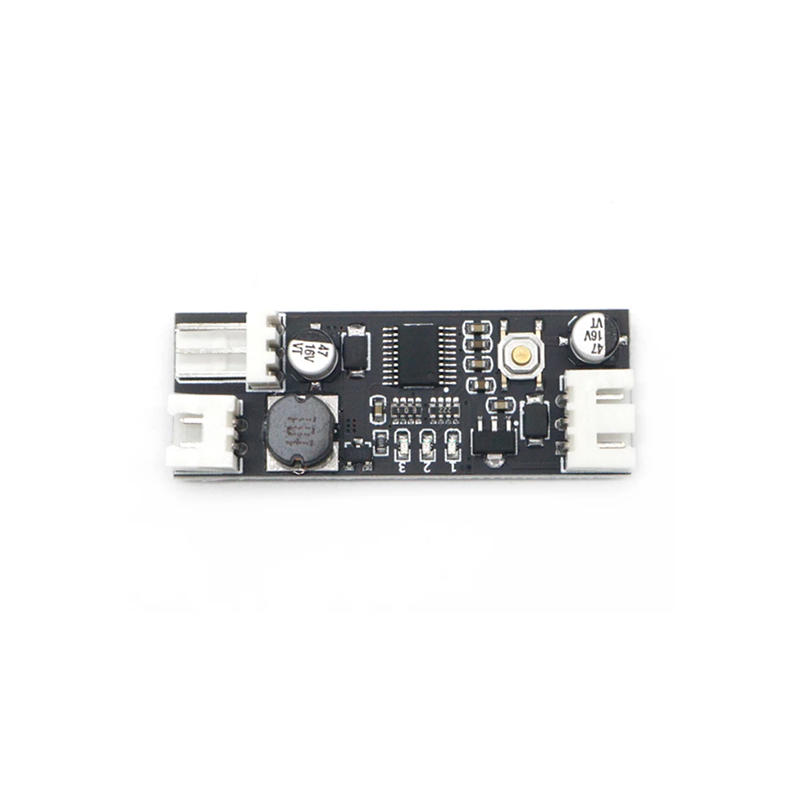

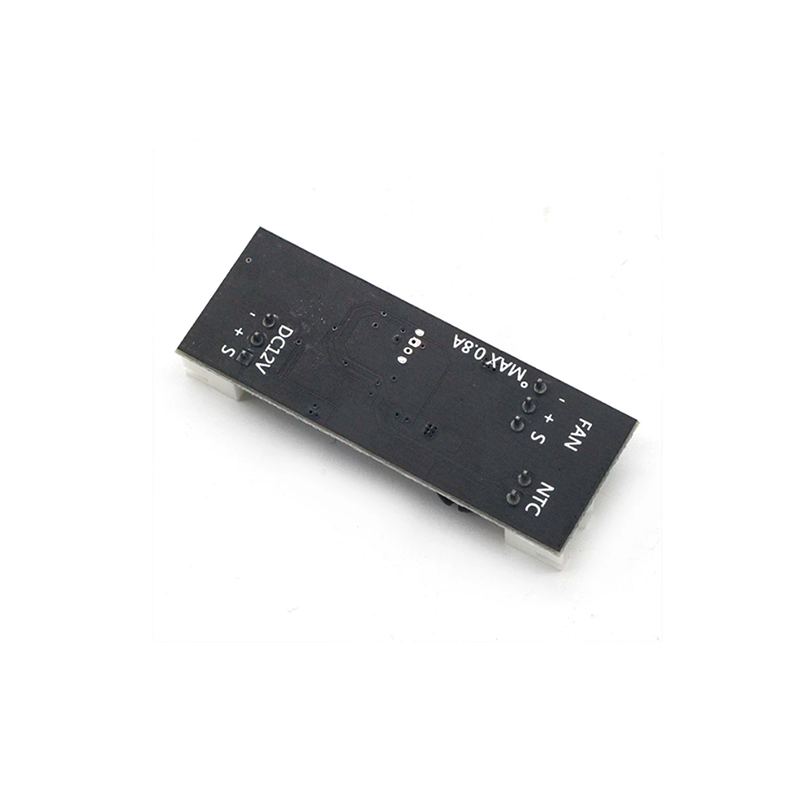

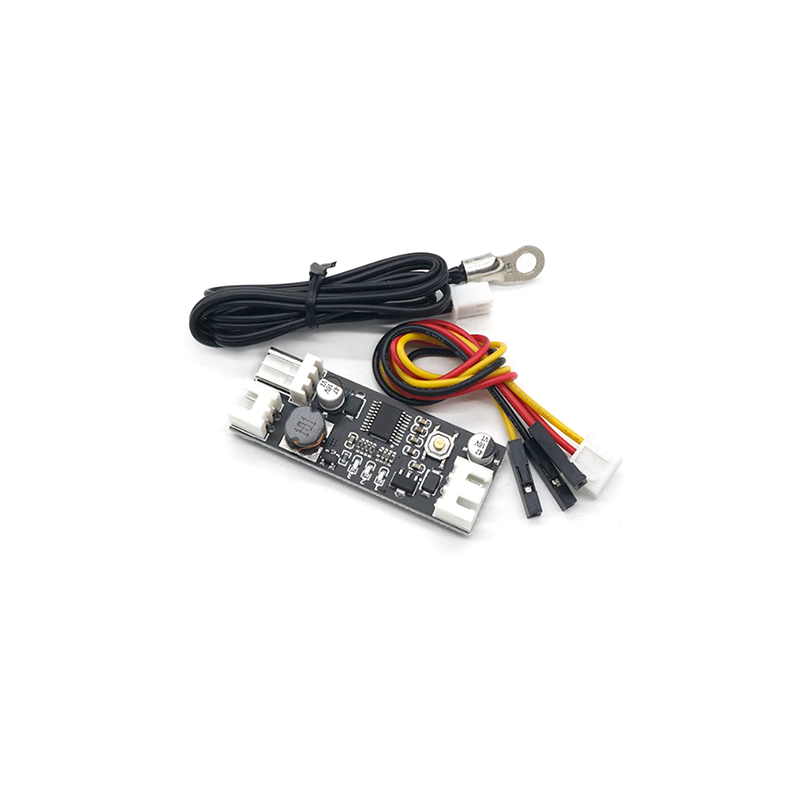

Single temperature controller and 12V DC PWM fan speed regulator (ARD3065-15)
Product Code: 1143722875
Available in 4 - 6 days
17,45 €
With the purchase of this product you earn 53 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Compact single temperature controller with 12V DC PWM fan speed regulation. Measures temperature from -20°C to 60°C and provides PWM output adjustable from 5% to 100%. Maximum fan output current is 0.8A. PCB dimensions 48 x 18 x 9 mm. Fan output connector XH-2P (2.54 mm), power/input connector KF2510-3P (3-pin, 2.54 mm). Includes input protection (reverse polarity). Suitable for small 12V fans and Arduino/DIY projects. Model/SKU: ARD3065-15.
-
ModelARD3065-15
-
Product TypeSingle temperature controller and fan speed regulator
-
Supply VoltageDC 12V
-
Temperature Measurement Range-20°C to 60°C
-
PWM Duty Cycle Range5% - 100%
-
Maximum Fan Output Current0.8 A
-
Fan Output ConnectorXH-2P (2.54 mm)
-
Power/Input ConnectorKF2510-3P (3-pin, 2.54 mm)
-
Input Protection (reverse polarity)Yes
-
Dimensions (PCB)48 mm x 18 mm x 9 mm
-
Approximate Weight8 g
-
Typical UseControl 12V DC fans in Arduino/DIY projects
Ratings
Description
Compact single temperature controller with 12V DC PWM fan speed regulation. Measures temperature from -20°C to 60°C and provides PWM output adjustable from 5% to 100%. Maximum fan output current is 0.8A. PCB dimensions 48 x 18 x 9 mm. Fan output connector XH-2P (2.54 mm), power/input connector KF2510-3P (3-pin, 2.54 mm). Includes input protection (reverse polarity). Suitable for small 12V fans and Arduino/DIY projects. Model/SKU: ARD3065-15.
Technical Specifications
-
ModelARD3065-15
-
Product TypeSingle temperature controller and fan speed regulator
-
Supply VoltageDC 12V
-
Temperature Measurement Range-20°C to 60°C
-
PWM Duty Cycle Range5% - 100%
-
Maximum Fan Output Current0.8 A
-
Fan Output ConnectorXH-2P (2.54 mm)
-
Power/Input ConnectorKF2510-3P (3-pin, 2.54 mm)
-
Input Protection (reverse polarity)Yes
-
Dimensions (PCB)48 mm x 18 mm x 9 mm
-
Approximate Weight8 g
-
Typical UseControl 12V DC fans in Arduino/DIY projects
