Siemens SIMATIC HMI KTP400 Basic (MPN: 6AV2123-2DB03-0AX0) is an industrial operator panel featuring a 4" TFT LCD display supporting 65,536 colors with 480 x 272 pixel resolution. It is a Basic Key-Touch panel (key-operated) with LED backlight. Powered by 24 V DC (125 mA, ~3 W consumption)....
More

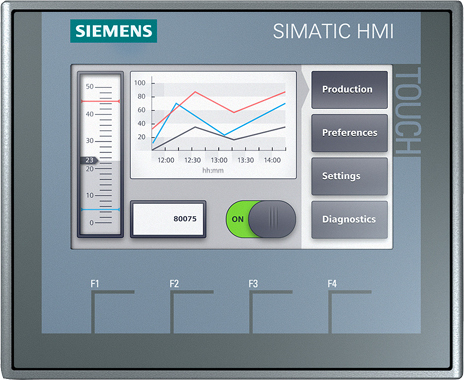

Siemens SIMATIC HMI KTP400 Basic 4" Key-Touch Panel (6AV2123-2DB03-0AX0)
Product Code: 1173750100
Available in 4 - 6 days
695,71 €
or
21,73€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 2088 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Siemens SIMATIC HMI KTP400 Basic (MPN: 6AV2123-2DB03-0AX0) is an industrial operator panel featuring a 4" TFT LCD display supporting 65,536 colors with 480 x 272 pixel resolution. It is a Basic Key-Touch panel (key-operated) with LED backlight. Powered by 24 V DC (125 mA, ~3 W consumption). Integrated memory: 10 MB (Flash/RAM). Communication: Ethernet/Profinet (RJ45). Front panel dimensions: 141 x 116 mm; panel cutout (mounting) dimensions: 123 x 99 mm; depth: 33 mm. Suitable for simple HMI tasks in industrial installations.
-
BrandSiemens
-
Model / MPN6AV2123-2DB03-0AX0 (KTP400 Basic)
-
TypeSIMATIC HMI Basic Panel (Key-Touch Operation)
-
Display size4 inches
-
Display typeTFT LCD with LED backlight
-
Colors65,536
-
Resolution480 x 272 pixels
-
Front keys4 (key-touch operation)
-
Power supply24 V DC
-
Supply current125 mA
-
Power consumption3 W
-
Memory (Flash/RAM)10 MB
-
Communication interfacesEthernet / Profinet (RJ45)
-

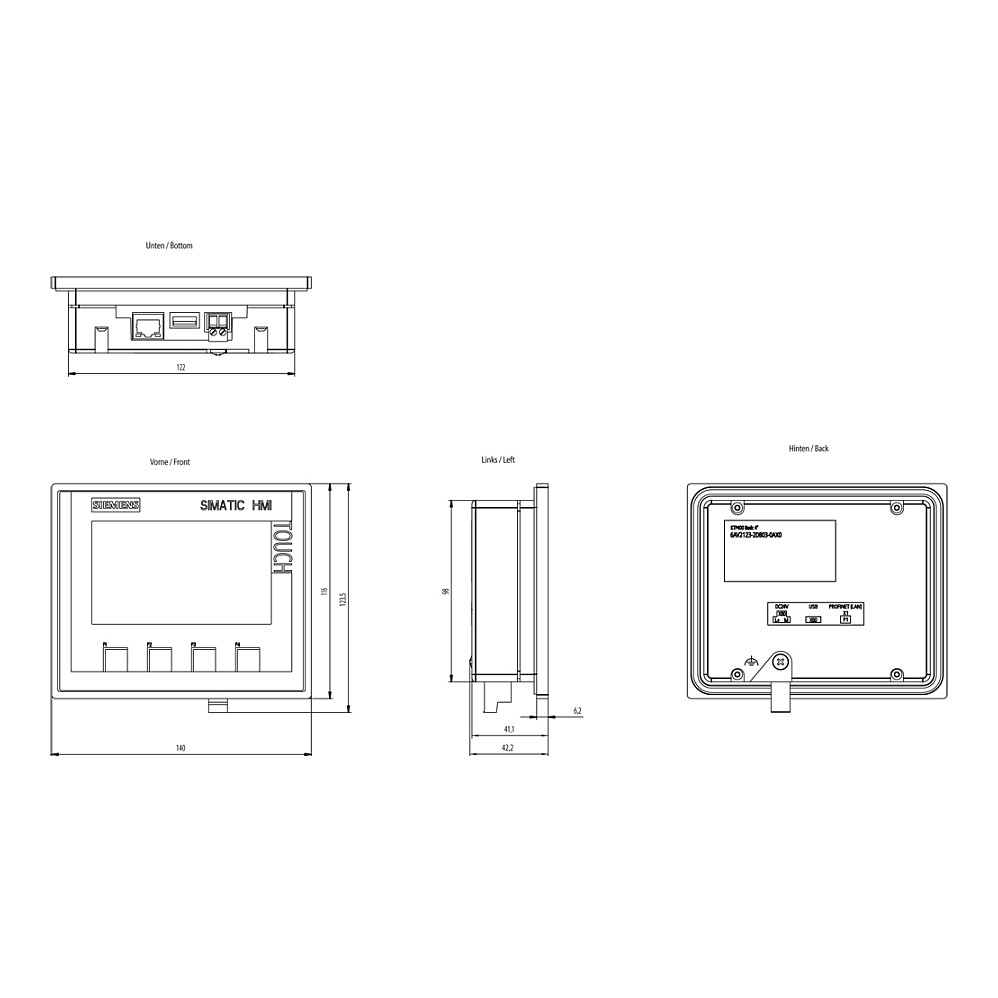

Front panel dimensions141 x 116 mm
-
Panel cutout (mounting) dimensions123 x 99 mm
-
Depth / Thickness33 mm
-
EAN4034106029203
-
SKU21374955
Ratings
Description
Siemens SIMATIC HMI KTP400 Basic (MPN: 6AV2123-2DB03-0AX0) is an industrial operator panel featuring a 4" TFT LCD display supporting 65,536 colors with 480 x 272 pixel resolution. It is a Basic Key-Touch panel (key-operated) with LED backlight. Powered by 24 V DC (125 mA, ~3 W consumption). Integrated memory: 10 MB (Flash/RAM). Communication: Ethernet/Profinet (RJ45). Front panel dimensions: 141 x 116 mm; panel cutout (mounting) dimensions: 123 x 99 mm; depth: 33 mm. Suitable for simple HMI tasks in industrial installations.
Technical Specifications
-
BrandSiemens
-
Model / MPN6AV2123-2DB03-0AX0 (KTP400 Basic)
-
TypeSIMATIC HMI Basic Panel (Key-Touch Operation)
-
Display size4 inches
-
Display typeTFT LCD with LED backlight
-
Colors65,536
-
Resolution480 x 272 pixels
-
Front keys4 (key-touch operation)
-
Power supply24 V DC
-
Supply current125 mA
-
Power consumption3 W
-
Memory (Flash/RAM)10 MB
-
Communication interfacesEthernet / Profinet (RJ45)
-
Front panel dimensions141 x 116 mm
-
Panel cutout (mounting) dimensions123 x 99 mm
-
Depth / Thickness33 mm
-
EAN4034106029203
-
SKU21374955
