The Shuttle XH810 is a slim XPC barebone designed for Intel Core Ultra 200 series desktop CPUs (LGA1851) using the Intel H810 Express chipset. It supports 2× DDR5 SO‑DIMM (DDR5‑5600), dual M.2‑2280 NVMe (PCIe Gen4), up to two 2.5" SATA (or one 3.5"), dual Intel LAN (2.5GbE + 1GbE), triple...
More

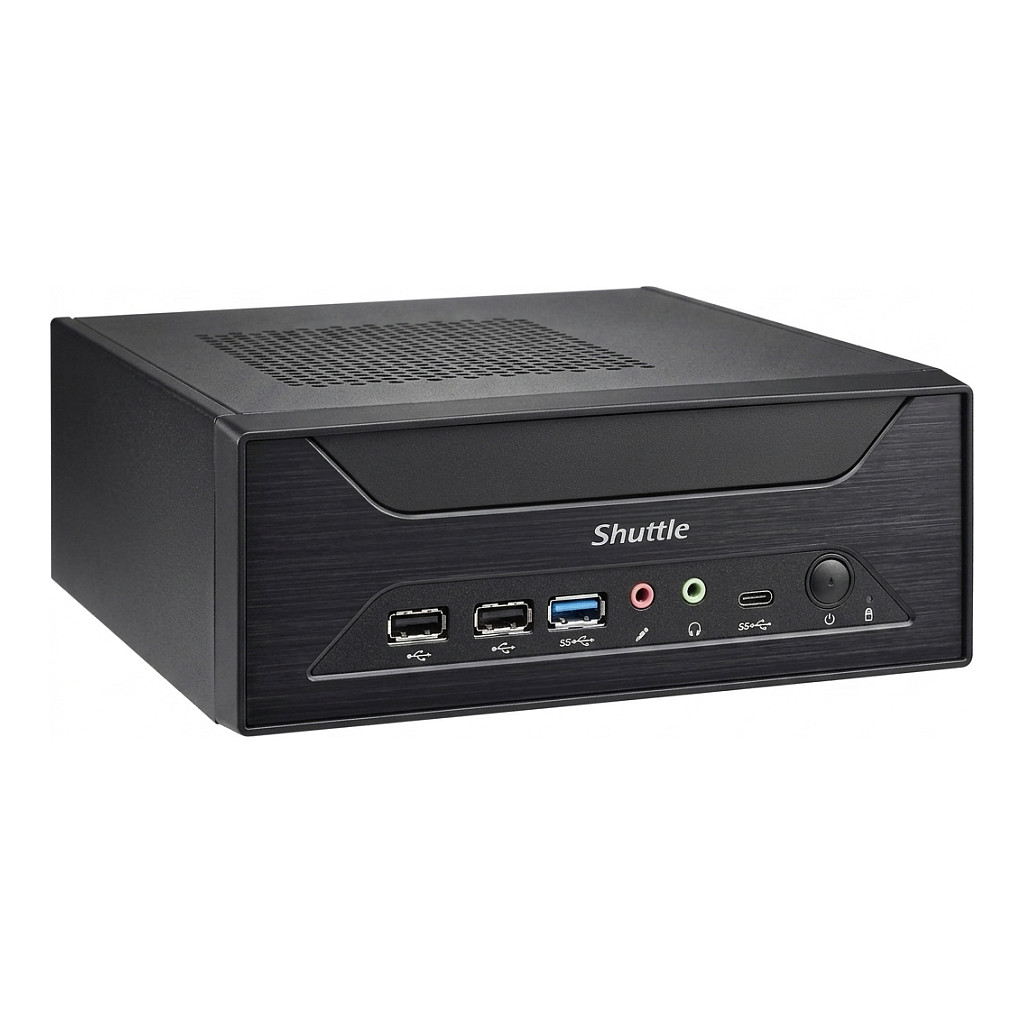

Shuttle XPC slim Barebone XH810 (LGA1851, Intel H810, DDR5 SO‑DIMM) - black
Product Code: 1173702328
Available in 4 - 6 days
479,53 €
or
14,97€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1439 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Shuttle XH810 is a slim XPC barebone designed for Intel Core Ultra 200 series desktop CPUs (LGA1851) using the Intel H810 Express chipset. It supports 2× DDR5 SO‑DIMM (DDR5‑5600), dual M.2‑2280 NVMe (PCIe Gen4), up to two 2.5" SATA (or one 3.5"), dual Intel LAN (2.5GbE + 1GbE), triple independent displays (HDMI 2.1, HDMI 2.0, DisplayPort 1.4a), PCIe Gen5 x16 expansion, advanced heatpipe cooling with dual 60 mm fans, external 120 W power adapter, VESA mount and a compact steel chassis (~23.8×20.0×7.2 cm, ~3.5–4 L). Targeted at office, digital signage, industrial control and edge/IoT deployments.
-
BrandShuttle
-
ModelXH810
-
Product familyXPC slim Barebone
-
CategoryPC-Systeme > Mini-PC / Barebones
-
CPU SocketLGA1851
-
Supported CPUsIntel Core Ultra 200 series (Arrow Lake‑S) desktop processors (Core Ultra 200/5/7/9)
-
ChipsetIntel H810 Express
-
Max CPU TDP65 W
-
Memory TypeDDR5 SO‑DIMM
-
Memory Slots2× SO‑DIMM
-
Memory SpeedDDR5‑5600
-
Maximum Memory96 GB (datasheet) / 128 GB (global spec page) — conflicting sources
-
Graphics Outputs1× HDMI 2.1, 1× HDMI 2.0, 1× DisplayPort 1.4a
-
Display SupportTriple independent displays; HDMI 2.1 up to 8K@60Hz, HDMI 2.0 & DP1.4a up to 4K@60Hz
-
Storage (M.2)2× M.2‑2280 NVMe (PCIe Gen4)
-
Storage (SATA)Supports 2× 2.5" SATA drives or 1× 3.5" SATA drive; 2.5" bay supports SATA RAID 0+1 (datasheet)
-
Expansion1× PCIe Gen5 x16, 1× PCIe Gen4 x1
-
LAN1× 2.5 GbE (Intel i226), 1× Gigabit Ethernet (Intel i219), Wake‑on‑LAN
-
USB2× USB 3.2 Gen2 (10 Gbps), 2× USB 3.2 Gen1 (incl. 1× USB‑C), 4× USB 2.0
-
Serial/COMUp to 6× COM ports (RS232/422/485) supported/optional
-
CoolingAdvanced heatpipe cooling with dual 60 mm fans
-
Power SupplyExternal 120 W power adapter included
-
Chassis MaterialSteel / metal
-
ColorBlack
-
Dimensions≈ 23.8 × 20.0 × 7.2 cm (L × W × H)
-
Volume~3.5–4 liters (sources vary)
-
Operating Temperature0–50 °C ambient (24/7 operation)
-
VESA MountIncluded
-
Intended Use CasesOffice, digital signage, industrial control, POS/kiosks, edge AI, IoT
-
EAN / Barcode0887993008110
-
SKU21218151
-
MPNXH810
Ratings
Description
The Shuttle XH810 is a slim XPC barebone designed for Intel Core Ultra 200 series desktop CPUs (LGA1851) using the Intel H810 Express chipset. It supports 2× DDR5 SO‑DIMM (DDR5‑5600), dual M.2‑2280 NVMe (PCIe Gen4), up to two 2.5" SATA (or one 3.5"), dual Intel LAN (2.5GbE + 1GbE), triple independent displays (HDMI 2.1, HDMI 2.0, DisplayPort 1.4a), PCIe Gen5 x16 expansion, advanced heatpipe cooling with dual 60 mm fans, external 120 W power adapter, VESA mount and a compact steel chassis (~23.8×20.0×7.2 cm, ~3.5–4 L). Targeted at office, digital signage, industrial control and edge/IoT deployments.
Technical Specifications
-
BrandShuttle
-
ModelXH810
-
Product familyXPC slim Barebone
-
CategoryPC-Systeme > Mini-PC / Barebones
-
CPU SocketLGA1851
-
Supported CPUsIntel Core Ultra 200 series (Arrow Lake‑S) desktop processors (Core Ultra 200/5/7/9)
-
ChipsetIntel H810 Express
-
Max CPU TDP65 W
-
Memory TypeDDR5 SO‑DIMM
-
Memory Slots2× SO‑DIMM
-
Memory SpeedDDR5‑5600
-
Maximum Memory96 GB (datasheet) / 128 GB (global spec page) — conflicting sources
-
Graphics Outputs1× HDMI 2.1, 1× HDMI 2.0, 1× DisplayPort 1.4a
-
Display SupportTriple independent displays; HDMI 2.1 up to 8K@60Hz, HDMI 2.0 & DP1.4a up to 4K@60Hz
-
Storage (M.2)2× M.2‑2280 NVMe (PCIe Gen4)
-
Storage (SATA)Supports 2× 2.5" SATA drives or 1× 3.5" SATA drive; 2.5" bay supports SATA RAID 0+1 (datasheet)
-
Expansion1× PCIe Gen5 x16, 1× PCIe Gen4 x1
-
LAN1× 2.5 GbE (Intel i226), 1× Gigabit Ethernet (Intel i219), Wake‑on‑LAN
-
USB2× USB 3.2 Gen2 (10 Gbps), 2× USB 3.2 Gen1 (incl. 1× USB‑C), 4× USB 2.0
-
Serial/COMUp to 6× COM ports (RS232/422/485) supported/optional
-
CoolingAdvanced heatpipe cooling with dual 60 mm fans
-
Power SupplyExternal 120 W power adapter included
-
Chassis MaterialSteel / metal
-
ColorBlack
-
Dimensions≈ 23.8 × 20.0 × 7.2 cm (L × W × H)
-
Volume~3.5–4 liters (sources vary)
-
Operating Temperature0–50 °C ambient (24/7 operation)
-
VESA MountIncluded
-
Intended Use CasesOffice, digital signage, industrial control, POS/kiosks, edge AI, IoT
-
EAN / Barcode0887993008110
-
SKU21218151
-
MPNXH810
