The Shuttle Barebone slim DH610V2 is a 1.35L slim barebone chassis (black) based on the Intel H610 chipset and LGA1700 socket. It supports Intel Alder Lake / Raptor Lake / Raptor Lake Refresh (12th/13th/14th Gen) CPUs up to 65W TDP (CPU, RAM and storage not included). Memory: 2x SO-DIMM DDR5...
More

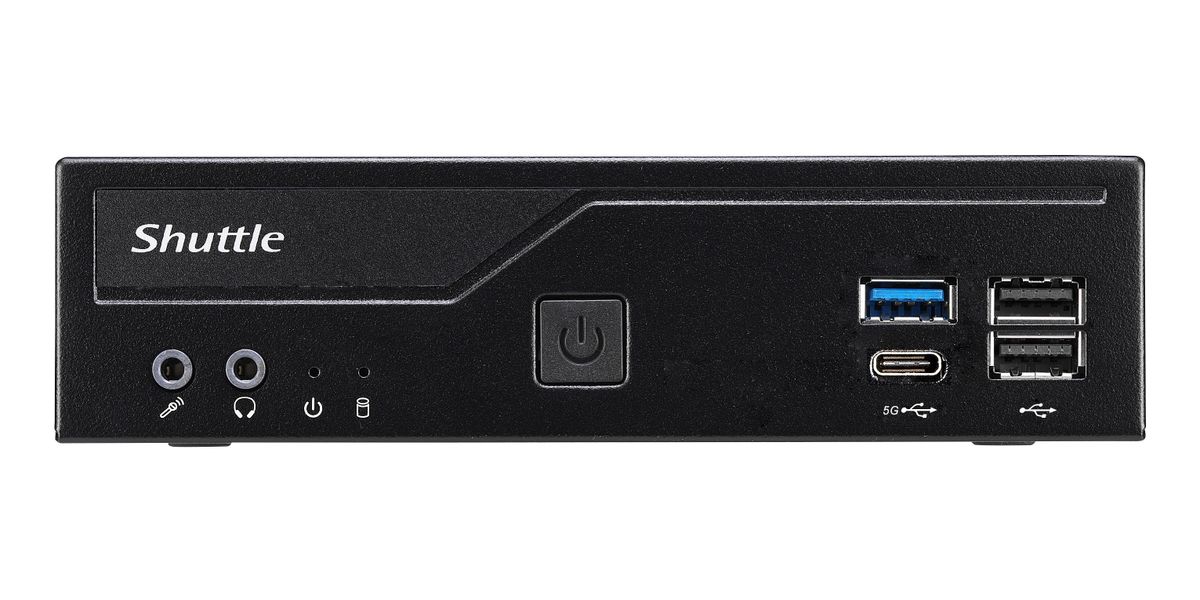

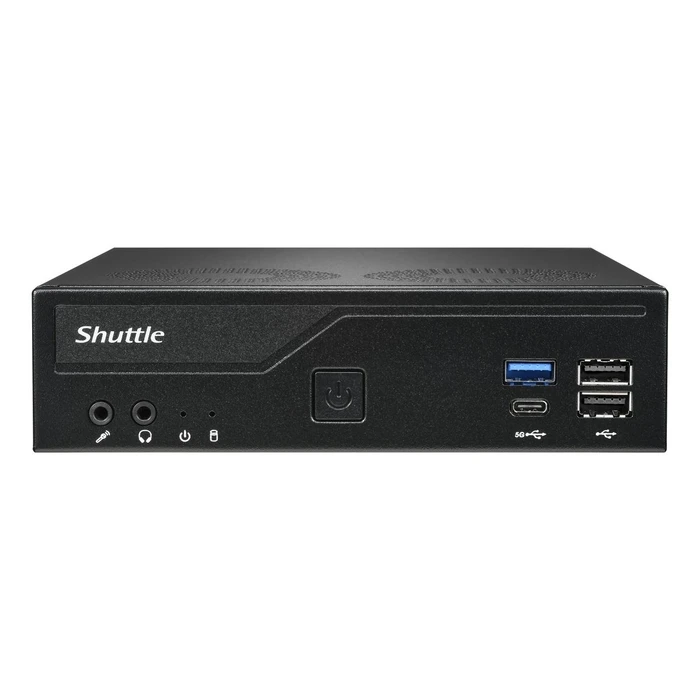

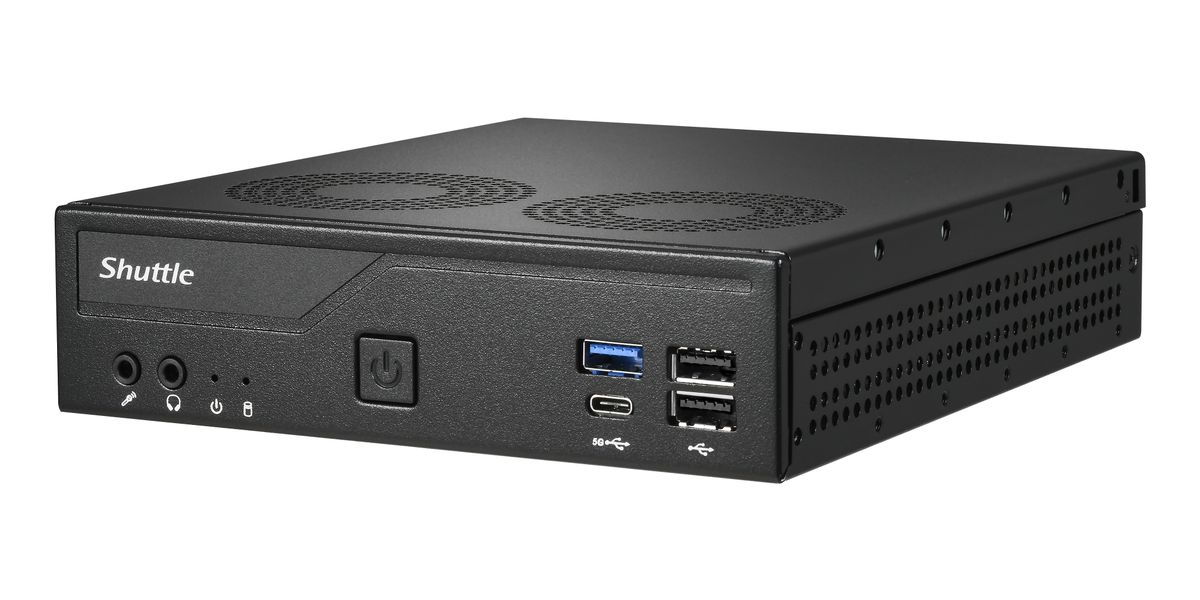

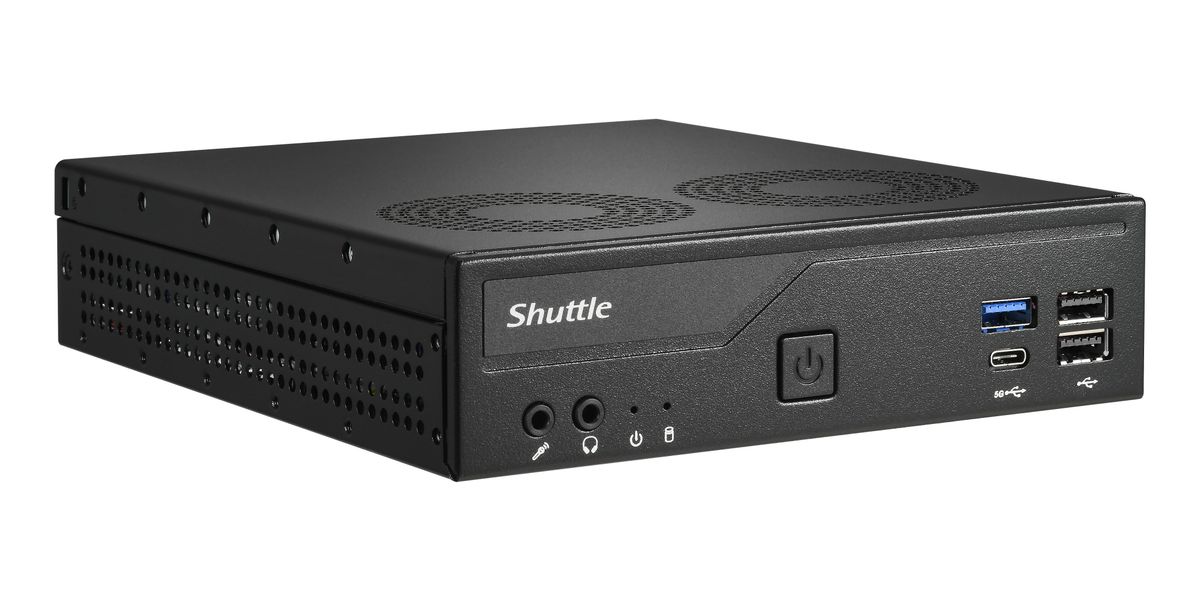

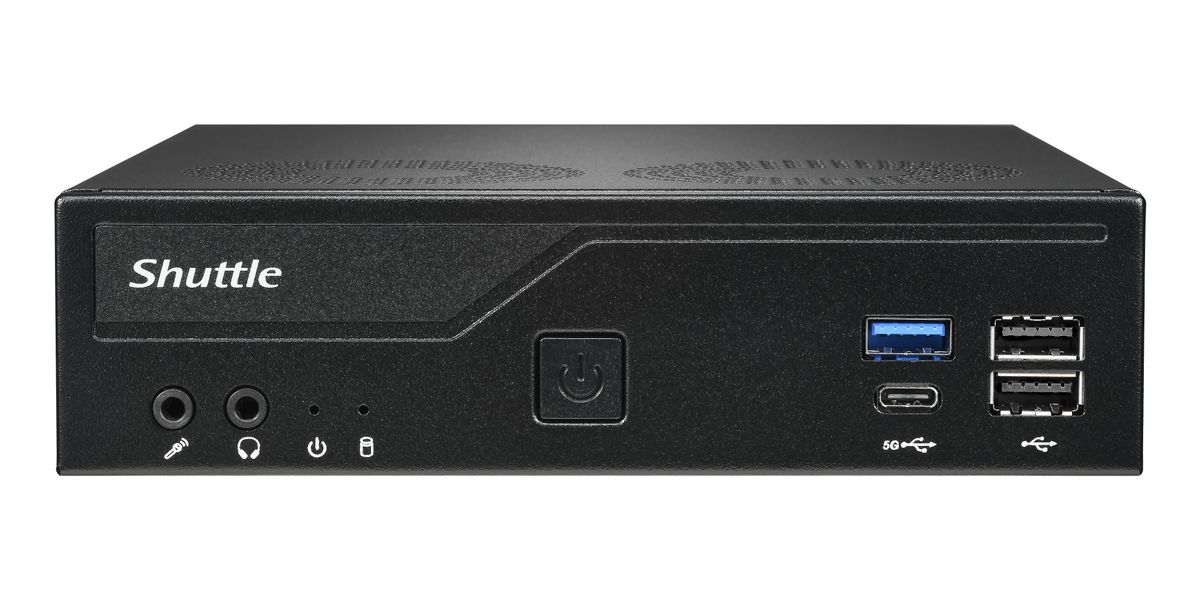

Shuttle Barebone slim DH610V2 Intel/DDR5/black
Product Code: 1117588369
Available in 1 - 3 days
414,29 €
or
12,94€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

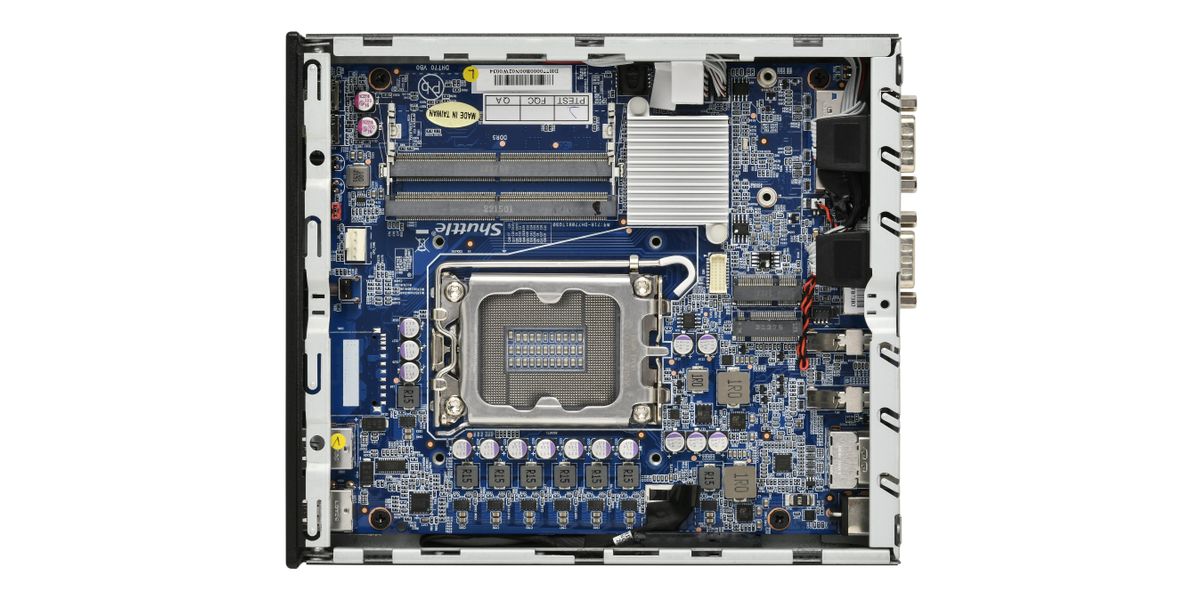

The Shuttle Barebone slim DH610V2 is a 1.35L slim barebone chassis (black) based on the Intel H610 chipset and LGA1700 socket. It supports Intel Alder Lake / Raptor Lake / Raptor Lake Refresh (12th/13th/14th Gen) CPUs up to 65W TDP (CPU, RAM and storage not included). Memory: 2x SO-DIMM DDR5 (DDR5-5600 supported) in dual-channel, up to 96 GB (2x48 GB modules; note some CPU/chipset/module combinations may limit module size). Storage: 1x M.2 PCIe 4.0 x4 slot and 1x 2.5" SATA bay. Video outputs: 1x HDMI + 2x DisplayPort (triple 4K support); optional VGA via accessory PVG01. Networking: dual Intel LAN (including 2.5Gb-capable ports). Includes external 120W (19V) adapter, active cooling, VESA mount and AMI UEFI firmware with fTPM 2.0. Ideal for digital signage, kiosks, POS, NVR and compact workstations.
-
BrandShuttle
-
ModelDH610V2
-
Product TypeBarebone slim / XPC slim (1.35 L chassis)
-
ColorBlack
-
Chassis MaterialMetal
-
Dimensions (WxDxH)190 mm x 165 mm x 43 mm
-
Chassis Volume1.35 liters
-
Net Weight1300 g
-
Package Weight2635 g
-
CPU SocketLGA 1700
-
ChipsetIntel H610
-
Supported CPUsIntel 12th / 13th / 14th Gen Core / Pentium / Celeron (up to 65W TDP)
-
Memory Slots2 x SO-DIMM (262-pin)
-
Memory TypeDDR5-SDRAM (PC5), DDR5-5600 supported
-
Maximum MemoryUp to 96 GB (2 x 48 GB modules) — note: some CPU/platform combinations limit module size
-
Storage – M.21 x M.2 PCIe 4.0 x4
-
Storage – SATA1 x 2.5" SATA bay
-
Graphics Outputs1 x HDMI, 2 x DisplayPort (triple-display, up to 3x 4K)
-
Optional VideoVGA via accessory PVG01
-
LANDual Intel LAN ports (includes 2.5Gb-capable ports)
-
USB PortsUp to 8 total (front/back mix)
-
Serial Ports2 x COM (RS-232)
-
AudioRealtek ALC888S
-
BIOSAMI UEFI with fTPM 2.0
-

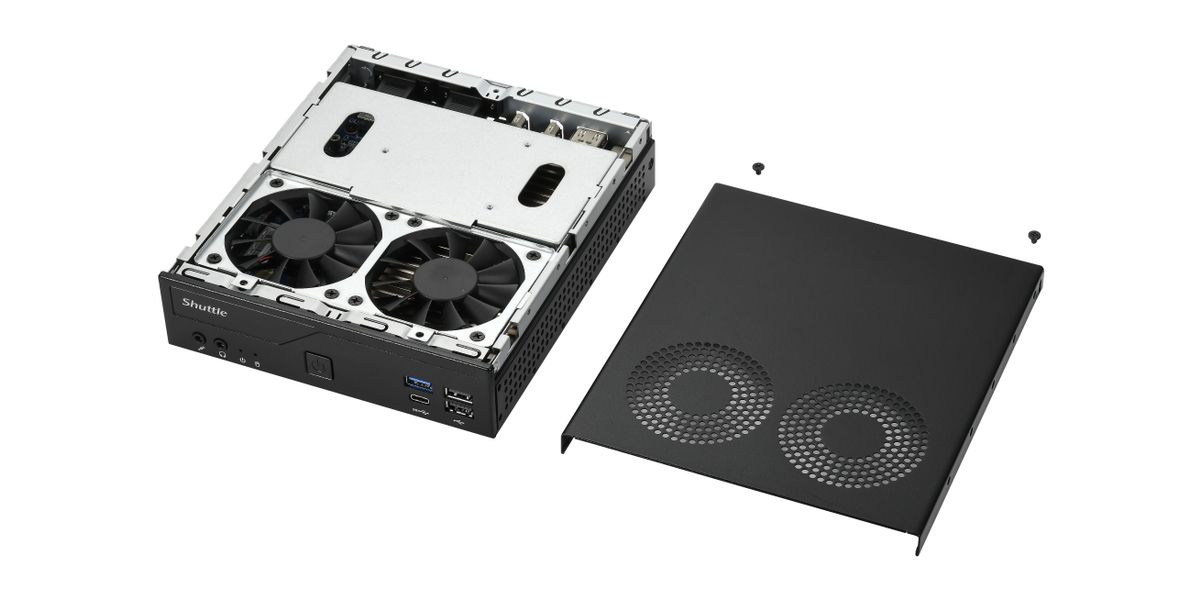

CoolingActive cooling (internal fan)
-
Power SupplyExternal 120W adapter (19V, 100–240VAC input)
-
Operating TemperatureUp to 50°C ambient
-
MountingVESA mount included
-
Use CasesDigital signage, POS/POI, kiosks, NVR, industrial/edge computing, compact workstation
Ratings
Description
The Shuttle Barebone slim DH610V2 is a 1.35L slim barebone chassis (black) based on the Intel H610 chipset and LGA1700 socket. It supports Intel Alder Lake / Raptor Lake / Raptor Lake Refresh (12th/13th/14th Gen) CPUs up to 65W TDP (CPU, RAM and storage not included). Memory: 2x SO-DIMM DDR5 (DDR5-5600 supported) in dual-channel, up to 96 GB (2x48 GB modules; note some CPU/chipset/module combinations may limit module size). Storage: 1x M.2 PCIe 4.0 x4 slot and 1x 2.5" SATA bay. Video outputs: 1x HDMI + 2x DisplayPort (triple 4K support); optional VGA via accessory PVG01. Networking: dual Intel LAN (including 2.5Gb-capable ports). Includes external 120W (19V) adapter, active cooling, VESA mount and AMI UEFI firmware with fTPM 2.0. Ideal for digital signage, kiosks, POS, NVR and compact workstations.
Technical Specifications
-
BrandShuttle
-
ModelDH610V2
-
Product TypeBarebone slim / XPC slim (1.35 L chassis)
-
ColorBlack
-
Chassis MaterialMetal
-
Dimensions (WxDxH)190 mm x 165 mm x 43 mm
-
Chassis Volume1.35 liters
-
Net Weight1300 g
-
Package Weight2635 g
-
CPU SocketLGA 1700
-
ChipsetIntel H610
-
Supported CPUsIntel 12th / 13th / 14th Gen Core / Pentium / Celeron (up to 65W TDP)
-
Memory Slots2 x SO-DIMM (262-pin)
-
Memory TypeDDR5-SDRAM (PC5), DDR5-5600 supported
-
Maximum MemoryUp to 96 GB (2 x 48 GB modules) — note: some CPU/platform combinations limit module size
-
Storage – M.21 x M.2 PCIe 4.0 x4
-
Storage – SATA1 x 2.5" SATA bay
-

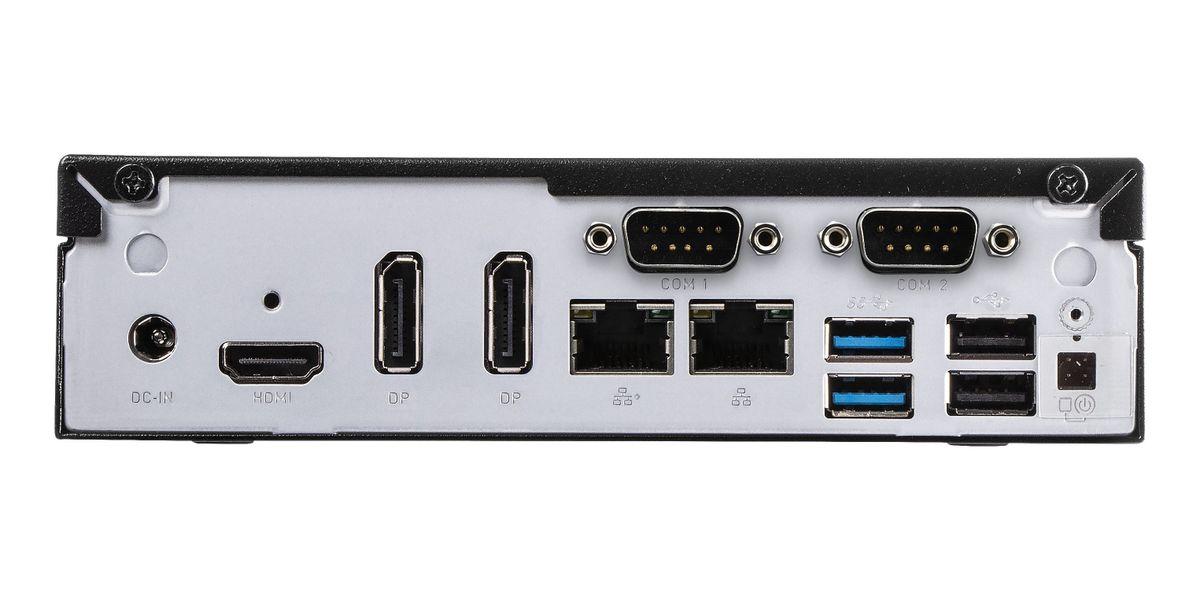

Graphics Outputs1 x HDMI, 2 x DisplayPort (triple-display, up to 3x 4K)
-
Optional VideoVGA via accessory PVG01
-
LANDual Intel LAN ports (includes 2.5Gb-capable ports)
-
USB PortsUp to 8 total (front/back mix)
-
Serial Ports2 x COM (RS-232)
-
AudioRealtek ALC888S
-
BIOSAMI UEFI with fTPM 2.0
-
CoolingActive cooling (internal fan)
-
Power SupplyExternal 120W adapter (19V, 100–240VAC input)
-
Operating TemperatureUp to 50°C ambient
-
MountingVESA mount included
-
Use CasesDigital signage, POS/POI, kiosks, NVR, industrial/edge computing, compact workstation
