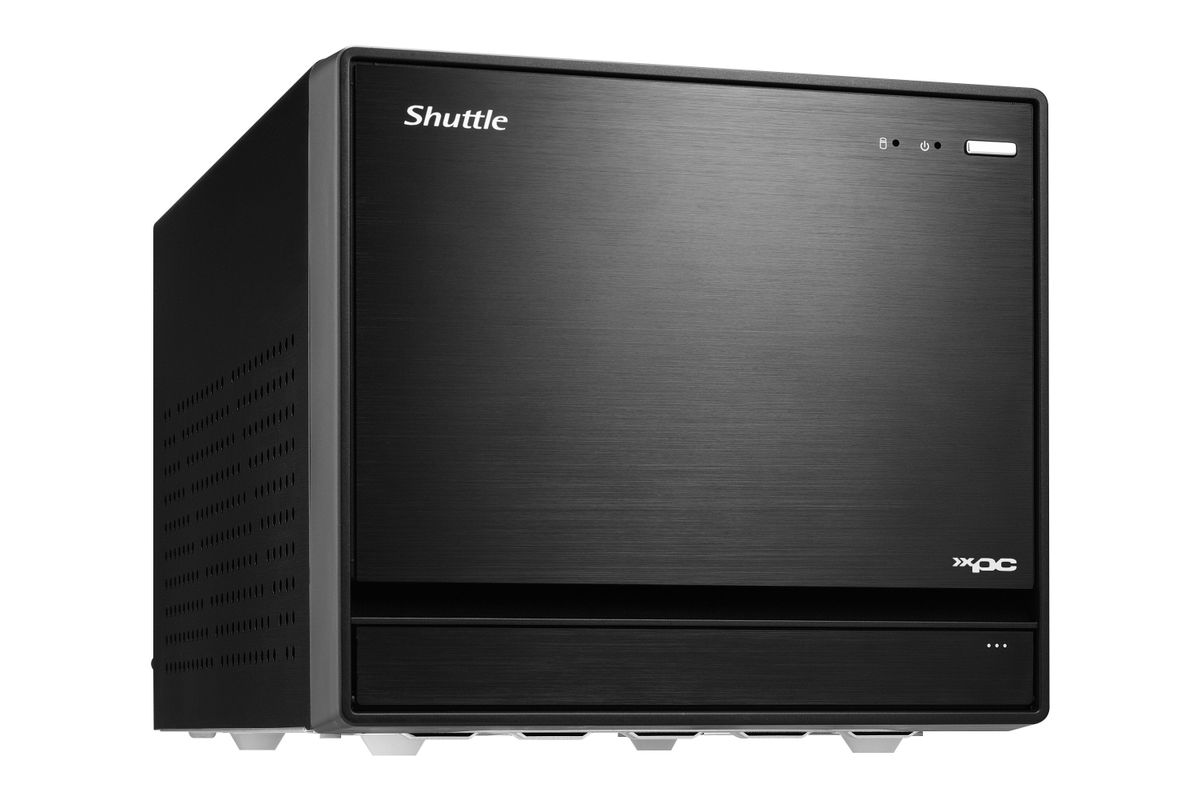

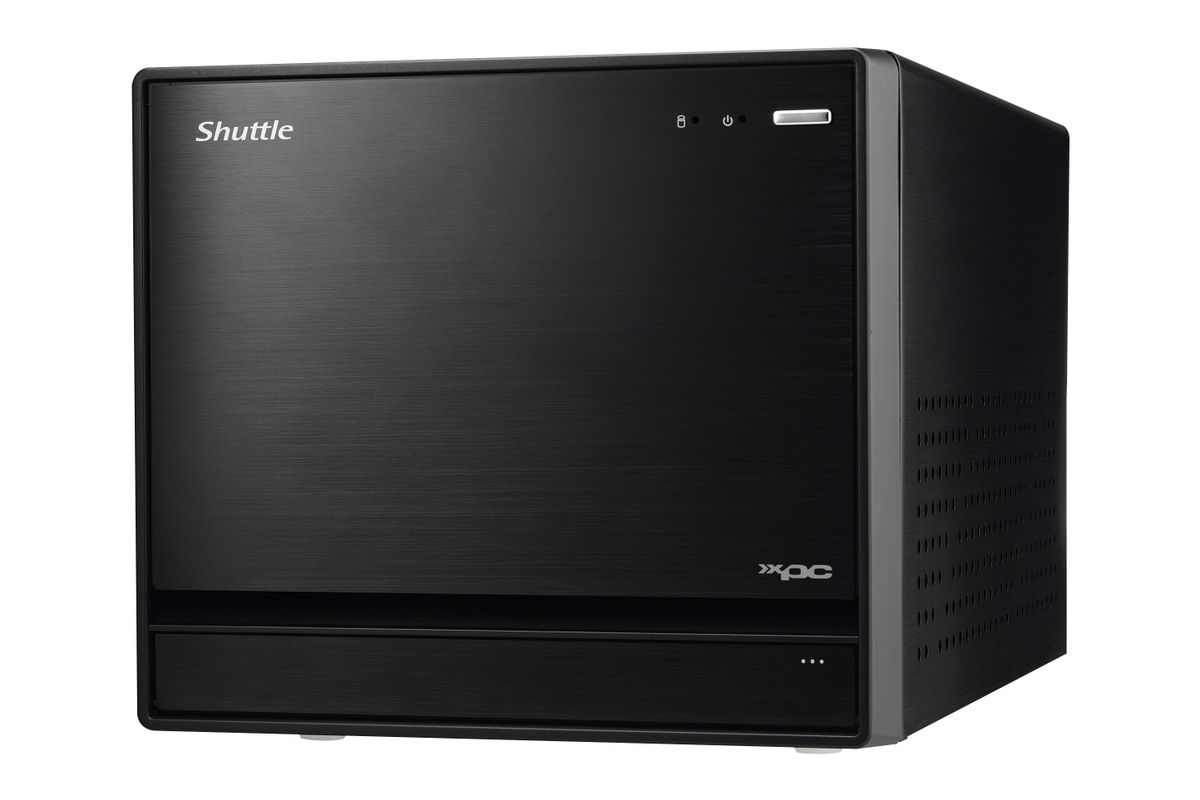

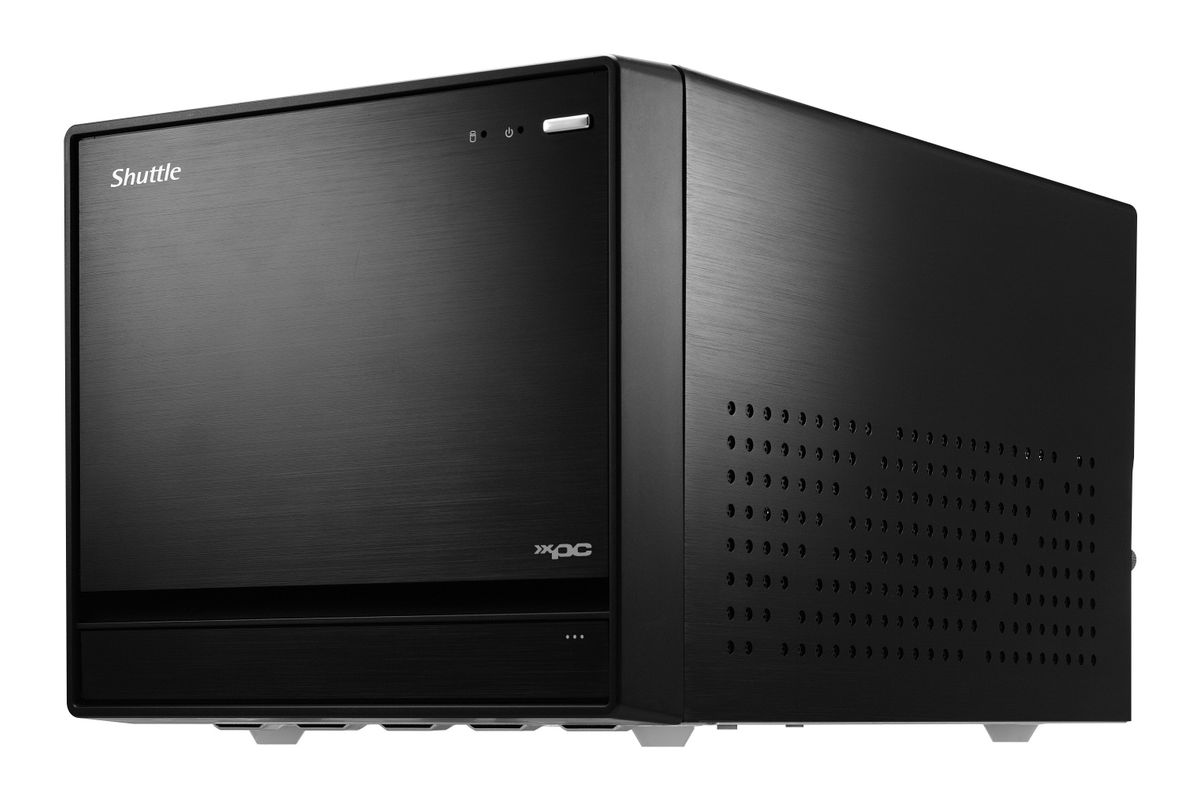

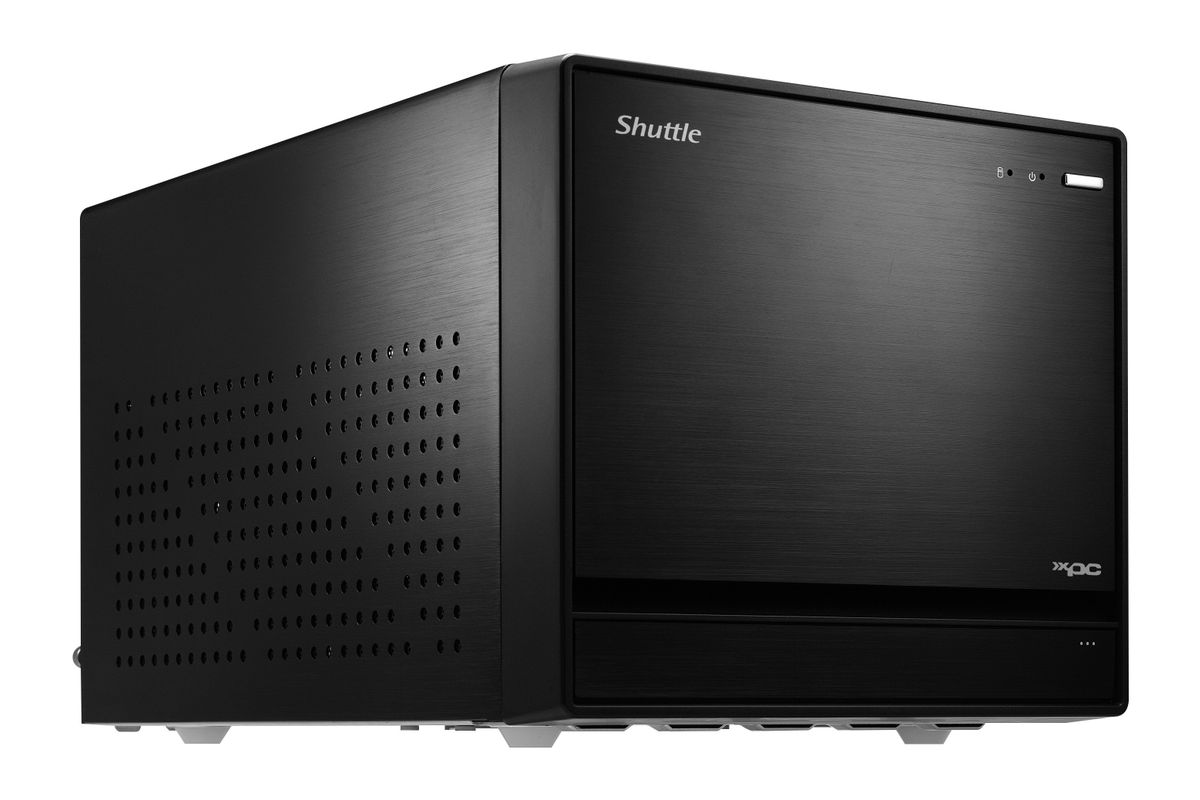

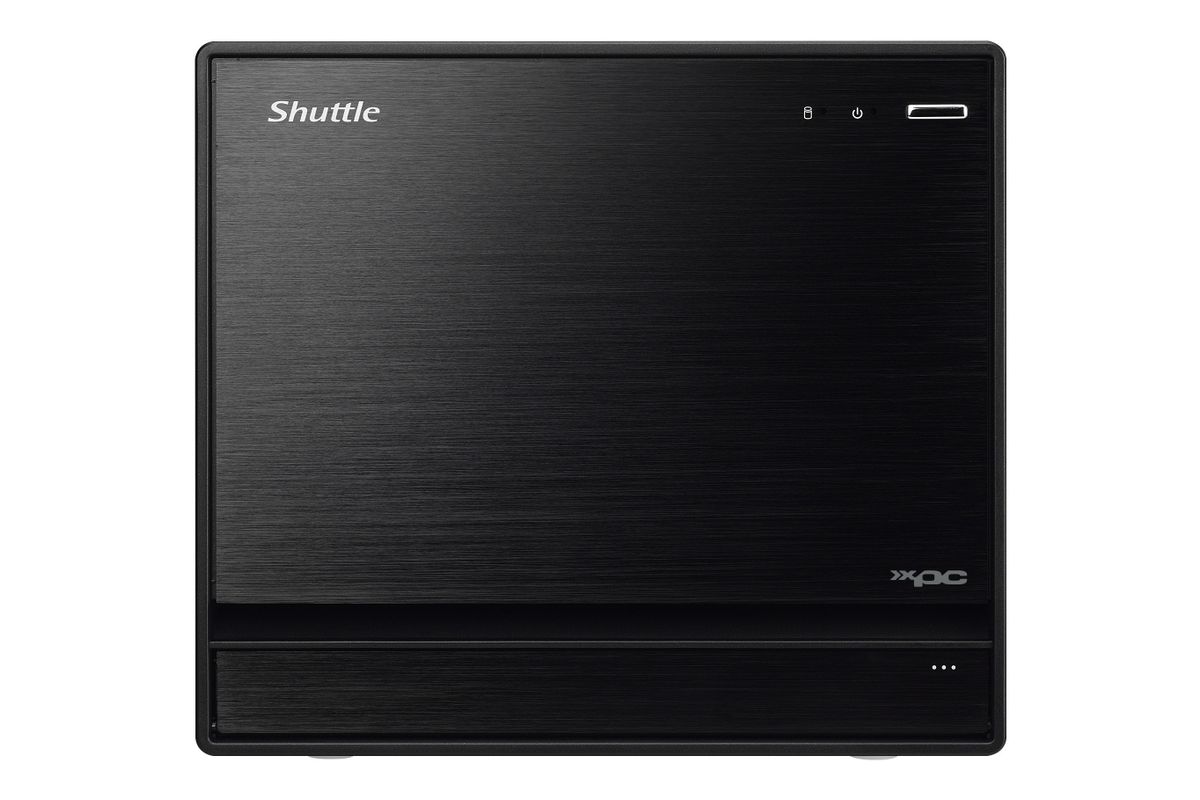

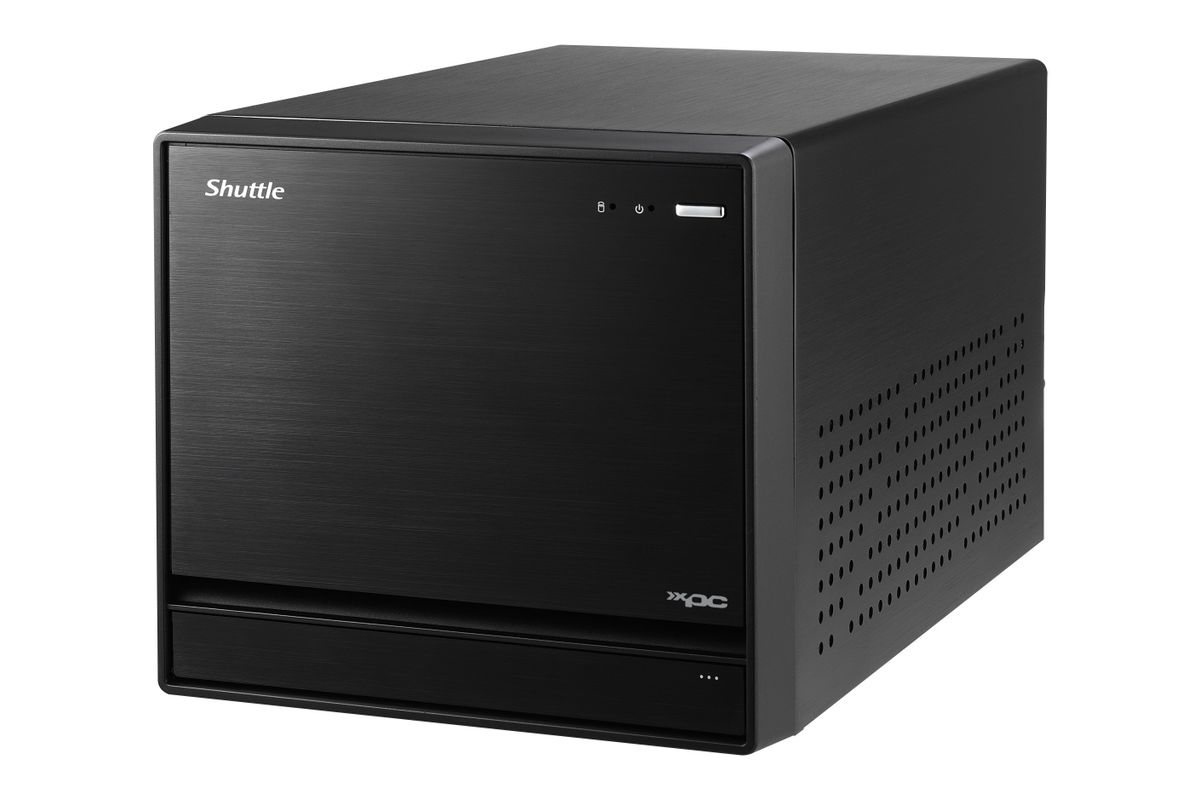

The Shuttle SB860R8 XPC Barebone is a compact 14‑liter aluminum cube chassis barebone for Intel Core Ultra 200 series (Arrow Lake‑S) LGA1851 CPUs. It features support for up to 125W CPUs, 4 DDR5 SO‑DIMM slots (up to 192 GB), extensive storage (up to four 3.5" SATA drives with RAID plus multiple M.2...
More

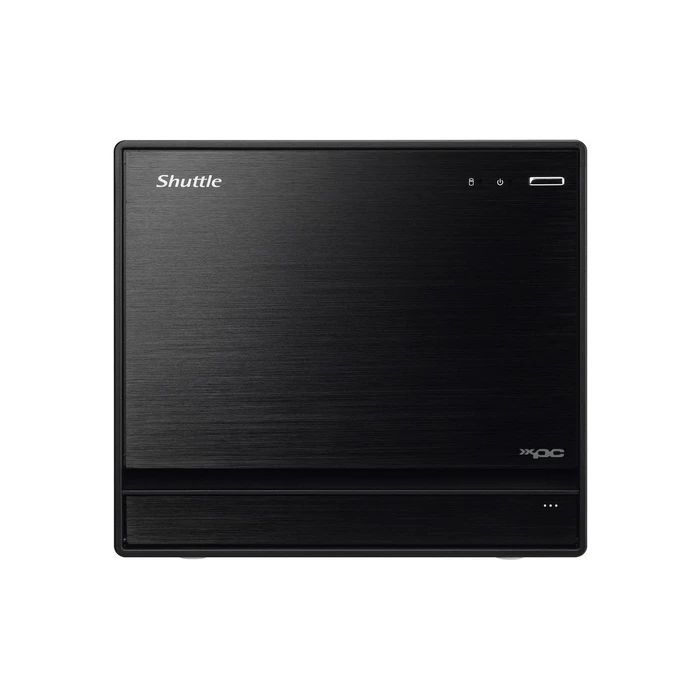

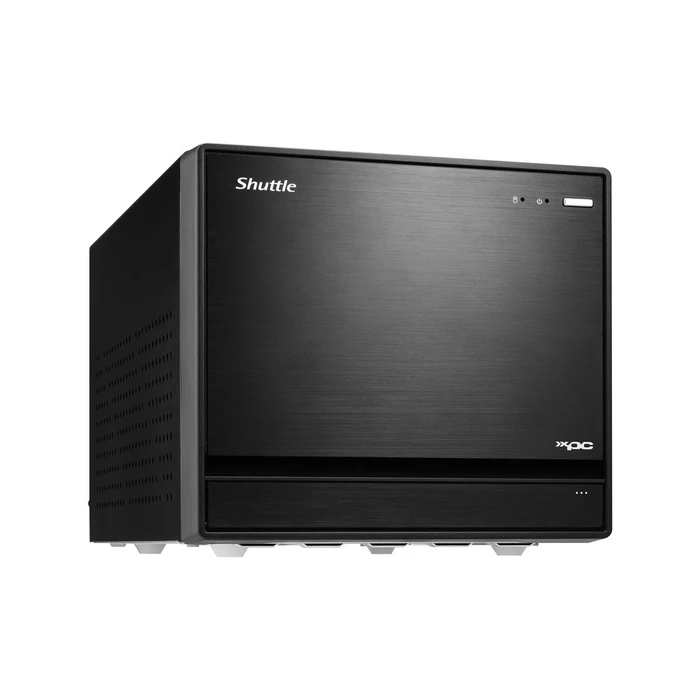

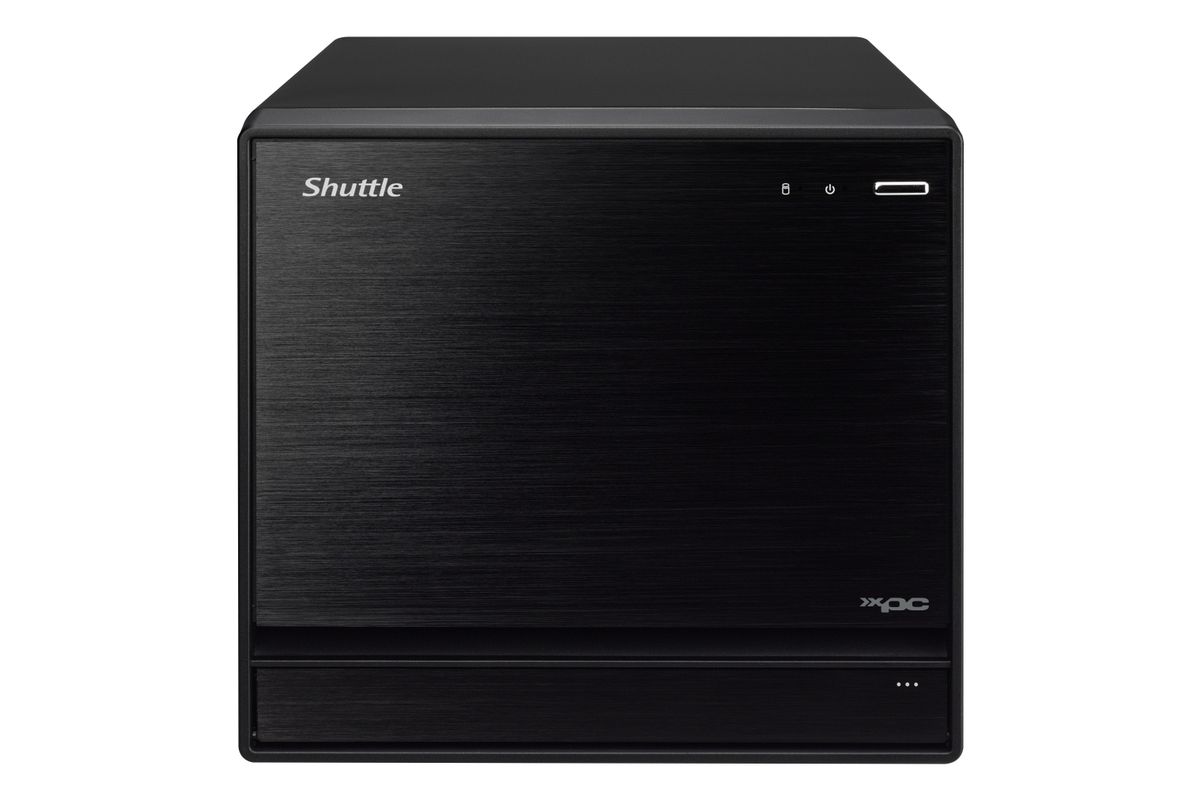

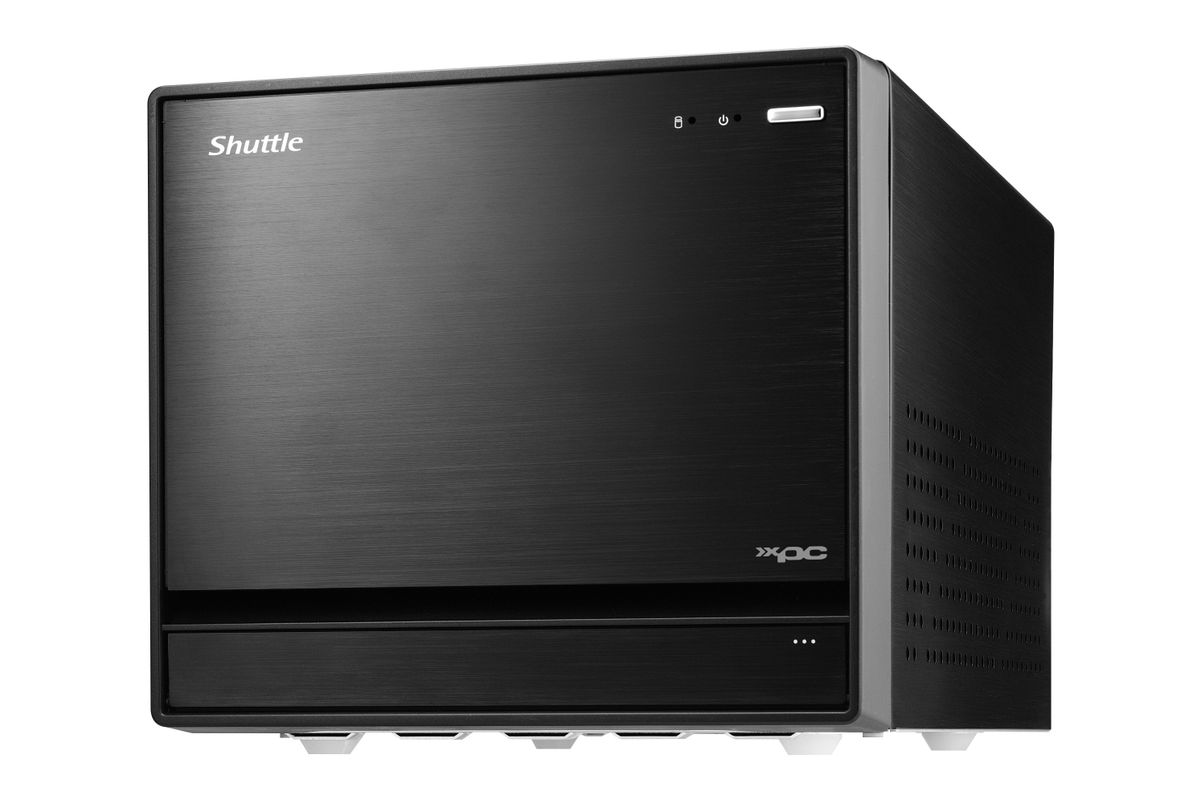

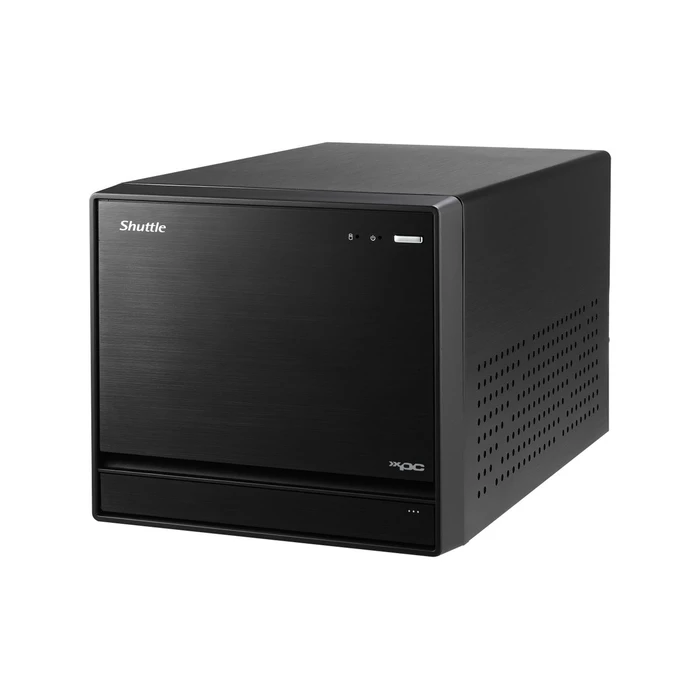

Shuttle Barebone Cube SB860R8 LGA-1851 DDR5 (SB860R8)
Product Code: 1117716288
Available in 1 - 3 days
711,65 €
or
22,22€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 2135 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Shuttle SB860R8 XPC Barebone is a compact 14‑liter aluminum cube chassis barebone for Intel Core Ultra 200 series (Arrow Lake‑S) LGA1851 CPUs. It features support for up to 125W CPUs, 4 DDR5 SO‑DIMM slots (up to 192 GB), extensive storage (up to four 3.5" SATA drives with RAID plus multiple M.2 slots), PCIe Gen5 x16 for discrete GPUs, dual 2.5GbE, multiple display outputs, an integrated 500W 80Plus Gold PSU and advanced heatpipe/fan cooling. CPU, RAM, storage and GPU are not included.
-
BrandShuttle
-
Model / MPNSB860R8
-
SKU592640
-
EAN / Barcode0887993008653
-
Product TypeXPC Barebone Cube (14 L)
-
Chassis MaterialAluminum
-
Chassis ColorBlack
-
Dimensions (W×D×H)33.2 × 21.5 × 19.0 cm
-
Volume14 liters
-
CPU SocketIntel LGA1851
-
Supported CPUsIntel Core Ultra 200 series (Arrow Lake‑S) — Core Ultra 9/7/5; up to 125W TDP
-
Memory Slots4 × DDR5 SO‑DIMM
-
Max Memory CapacityUp to 192 GB DDR5
-
Storage Bays (HDD)Up to 4 × internal 3.5" SATA HDDs (RAID 0/1/5/10 support)
-
M.2 Slots3 × M.2 total (1 × PCIe Gen5 x4 for NVMe, 1 × M.2‑2280 for NVMe/SATA, 1 × M.2‑2230 for Wi‑Fi module)
-
Expansion Slots1 × PCIe Gen5 x16 (full‑length, dual‑slot GPU support), 1 × PCIe Gen4 x4 (add‑in card)
-
Discrete GPU SupportDual‑slot GPUs supported (full‑length via PCIe Gen5 x16)
-

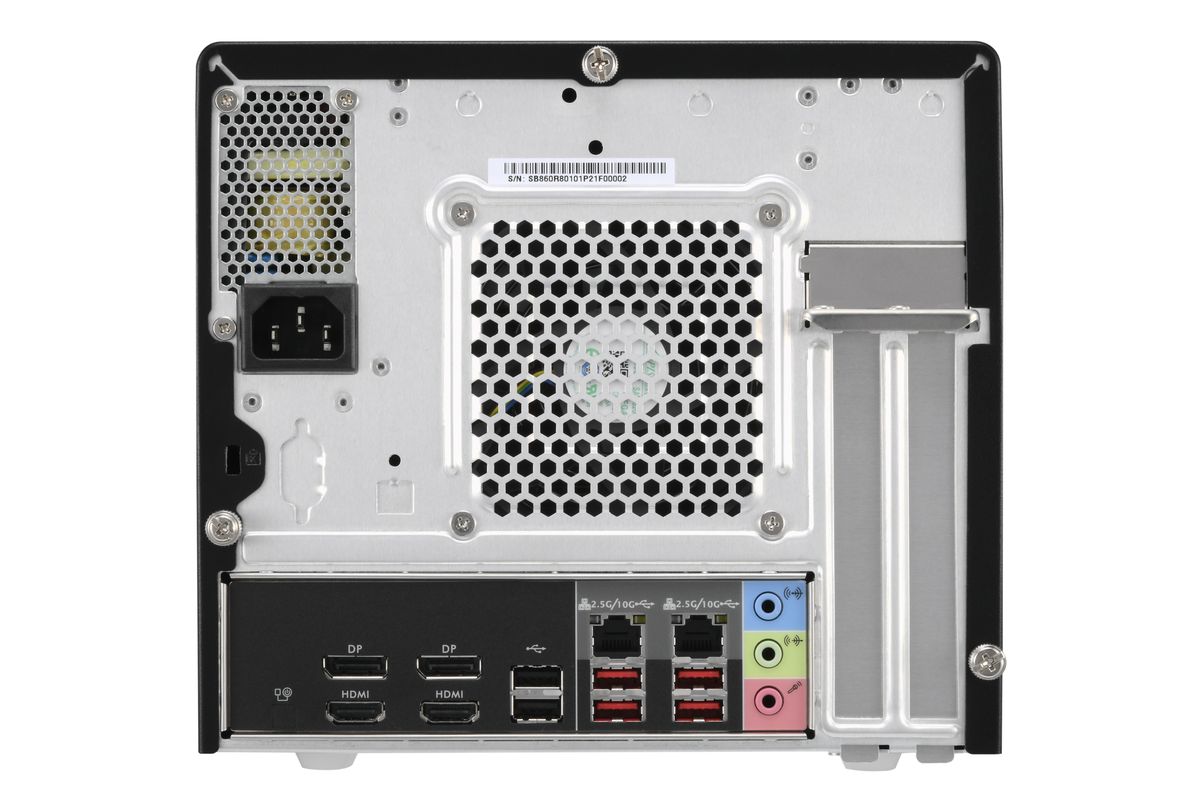

Display Outputs1 × HDMI 2.1, 1 × HDMI 2.0, 2 × DisplayPort 1.4 (up to 4 independent displays)
-
LANDual 2.5GbE (Intel i226‑LM controllers)
-

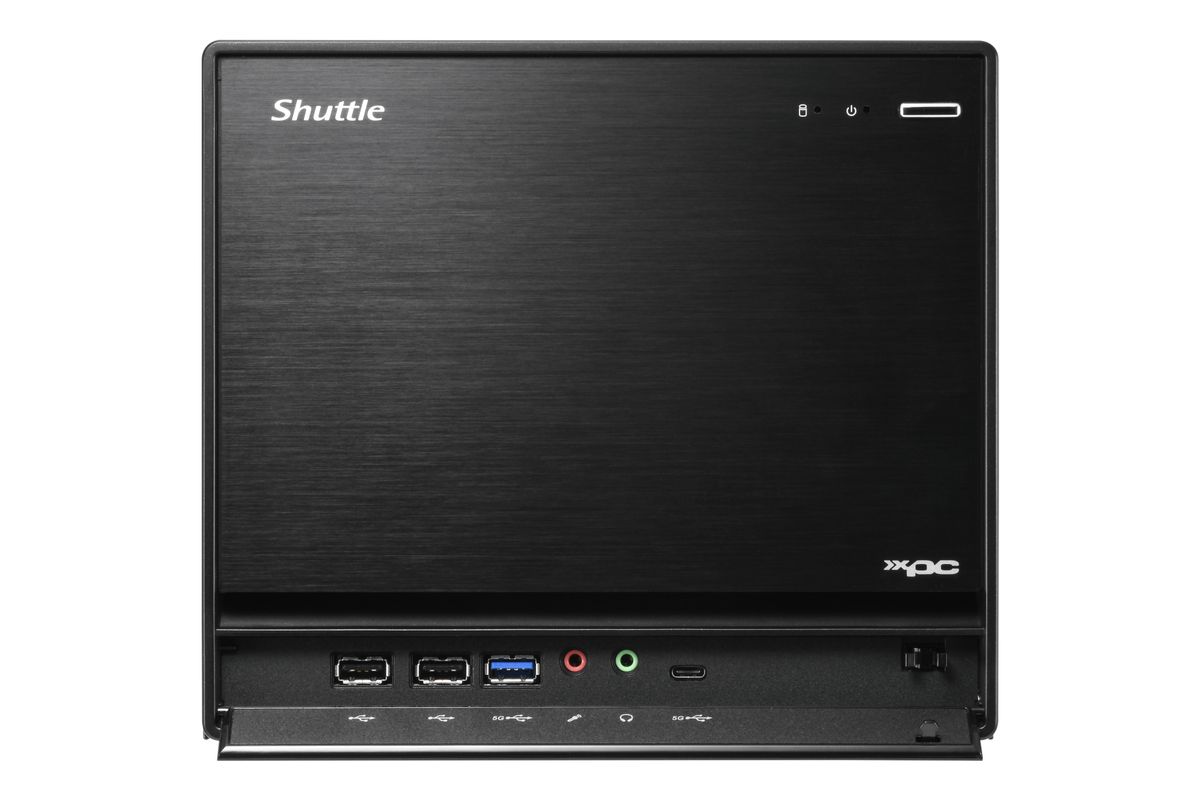

USBMultiple USB 3.2 Gen2 (10Gbps) and Gen1 ports, including Type‑C
-
Wi‑FiOptional via M.2 2230 slot (module not included)
-
CoolingShuttle heatpipe cooling with 10 heatpipes + 3 temperature‑controlled fans
-
Power SupplyIntegrated 500W 80Plus Gold PSU
-
Power / OperationDesigned for 24/7 operation (edge/server use)
-
OS SupportWindows 10/11 (64‑bit), Linux (64‑bit)
-
Barebone NoteCPU, RAM, storage and GPU are not included
-
Typical Use CasesWorkstation, NAS / small server, edge computing, AI inference appliances, compact gaming (with GPU)
-
Weight (product)~5200 g
Ratings
Description
The Shuttle SB860R8 XPC Barebone is a compact 14‑liter aluminum cube chassis barebone for Intel Core Ultra 200 series (Arrow Lake‑S) LGA1851 CPUs. It features support for up to 125W CPUs, 4 DDR5 SO‑DIMM slots (up to 192 GB), extensive storage (up to four 3.5" SATA drives with RAID plus multiple M.2 slots), PCIe Gen5 x16 for discrete GPUs, dual 2.5GbE, multiple display outputs, an integrated 500W 80Plus Gold PSU and advanced heatpipe/fan cooling. CPU, RAM, storage and GPU are not included.
Technical Specifications
-
BrandShuttle
-
Model / MPNSB860R8
-
SKU592640
-
EAN / Barcode0887993008653
-
Product TypeXPC Barebone Cube (14 L)
-
Chassis MaterialAluminum
-
Chassis ColorBlack
-
Dimensions (W×D×H)33.2 × 21.5 × 19.0 cm
-
Volume14 liters
-
CPU SocketIntel LGA1851
-
Supported CPUsIntel Core Ultra 200 series (Arrow Lake‑S) — Core Ultra 9/7/5; up to 125W TDP
-
Memory Slots4 × DDR5 SO‑DIMM
-
Max Memory CapacityUp to 192 GB DDR5
-
Storage Bays (HDD)Up to 4 × internal 3.5" SATA HDDs (RAID 0/1/5/10 support)
-
M.2 Slots3 × M.2 total (1 × PCIe Gen5 x4 for NVMe, 1 × M.2‑2280 for NVMe/SATA, 1 × M.2‑2230 for Wi‑Fi module)
-
Expansion Slots1 × PCIe Gen5 x16 (full‑length, dual‑slot GPU support), 1 × PCIe Gen4 x4 (add‑in card)
-
Discrete GPU SupportDual‑slot GPUs supported (full‑length via PCIe Gen5 x16)
-
Display Outputs1 × HDMI 2.1, 1 × HDMI 2.0, 2 × DisplayPort 1.4 (up to 4 independent displays)
-
LANDual 2.5GbE (Intel i226‑LM controllers)
-
USBMultiple USB 3.2 Gen2 (10Gbps) and Gen1 ports, including Type‑C
-
Wi‑FiOptional via M.2 2230 slot (module not included)
-
CoolingShuttle heatpipe cooling with 10 heatpipes + 3 temperature‑controlled fans
-
Power SupplyIntegrated 500W 80Plus Gold PSU
-
Power / OperationDesigned for 24/7 operation (edge/server use)
-
OS SupportWindows 10/11 (64‑bit), Linux (64‑bit)
-
Barebone NoteCPU, RAM, storage and GPU are not included
-
Typical Use CasesWorkstation, NAS / small server, edge computing, AI inference appliances, compact gaming (with GPU)
-
Weight (product)~5200 g
