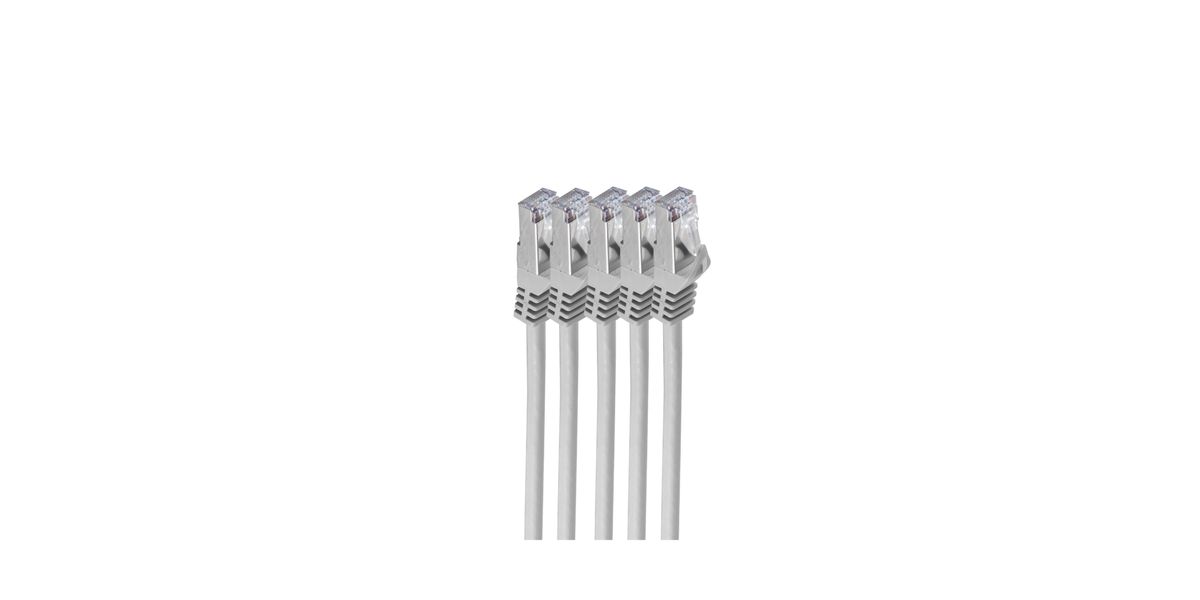

Shiverpeaks RJ45 S/FTP patch cable, CAT7 (Class F), 5 m. Pair-in-foil plus overall braid shielding (S/FTP) for maximum EMI/alien crosstalk protection. Rated up to 600 MHz, supports 10GBASE-T (up to 10 Gbps over 100 m) and backwards compatible with CAT6/CAT6A/CAT5e. Stranded conductors (AWG 26/7),...
More
Shiverpeaks RJ45 Patchkabel S/FTP, Cat7 VE5, 5m
Product Code: 1117581581
Available in 1 - 3 days
67,04 €
or
2,09€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Shiverpeaks RJ45 S/FTP patch cable, CAT7 (Class F), 5 m. Pair-in-foil plus overall braid shielding (S/FTP) for maximum EMI/alien crosstalk protection. Rated up to 600 MHz, supports 10GBASE-T (up to 10 Gbps over 100 m) and backwards compatible with CAT6/CAT6A/CAT5e. Stranded conductors (AWG 26/7), gold-plated RJ45 plugs, foam-PE insulation, halogen-free jacket (PVC/TPE). Ideal for high-density networks, patch panels and multimedia applications. Packaged dimensions approx. 19.7 x 15.1 x 4 cm. Product weight ~179 g. SKU: 581581, EAN: 4017538081568, MPN: BS75515-SET5.
-
BrandShiverpeaks
-
Model/MPNBS75515-SET5
-
SKU581581
-
EAN/Barcode4017538081568
-
Product TypeRJ45 patch cable (male-to-male)
-
CategoryCAT7 (Class F, VE5)
-
Length5 m
-
ShieldingS/FTP (foil per pair + overall braid)
-
BandwidthUp to 600 MHz
-
Data Rate SupportUp to 10 Gbps (10GBASE-T, up to 100 m)
-
ConductorStranded copper AWG 26/7
-
InsulationFoam-PE
-
ConnectorRJ45 gold-plated plugs (8P8C), molded strain relief
-
Impedance100 Ω ± tolerances
-
DC Conductor Resistance≤9.5 Ω/100 m (typical limits per spec)
-
Delay Skew≤25–45 ns/100 m (model variant dependent)
-
NVP~70%
-
Shield CoverageAluminium foil per pair + braided screen (≥40% coverage typical)
-
Jacket MaterialHalogen-free PVC/TPE (LSZH options available in range)
-
Operating Temperature-20 °C to +75 °C
-
Mating Cycles≥750
-
Cable Diameter~6 mm outer Ø (approx.)
-
Weight~179 g
-
Packaged Dimensions (L×W×H)19.7 × 15.1 × 4 cm
-
Standards/ComplianceISO/IEC 11801 Class F, IEC 60603-7-51, TIA/EIA wiring
Ratings
Description
Shiverpeaks RJ45 S/FTP patch cable, CAT7 (Class F), 5 m. Pair-in-foil plus overall braid shielding (S/FTP) for maximum EMI/alien crosstalk protection. Rated up to 600 MHz, supports 10GBASE-T (up to 10 Gbps over 100 m) and backwards compatible with CAT6/CAT6A/CAT5e. Stranded conductors (AWG 26/7), gold-plated RJ45 plugs, foam-PE insulation, halogen-free jacket (PVC/TPE). Ideal for high-density networks, patch panels and multimedia applications. Packaged dimensions approx. 19.7 x 15.1 x 4 cm. Product weight ~179 g. SKU: 581581, EAN: 4017538081568, MPN: BS75515-SET5.
Technical Specifications
-
BrandShiverpeaks
-
Model/MPNBS75515-SET5
-
SKU581581
-
EAN/Barcode4017538081568
-
Product TypeRJ45 patch cable (male-to-male)
-
CategoryCAT7 (Class F, VE5)
-
Length5 m
-
ShieldingS/FTP (foil per pair + overall braid)
-
BandwidthUp to 600 MHz
-
Data Rate SupportUp to 10 Gbps (10GBASE-T, up to 100 m)
-
ConductorStranded copper AWG 26/7
-
InsulationFoam-PE
-
ConnectorRJ45 gold-plated plugs (8P8C), molded strain relief
-
Impedance100 Ω ± tolerances
-
DC Conductor Resistance≤9.5 Ω/100 m (typical limits per spec)
-
Delay Skew≤25–45 ns/100 m (model variant dependent)
-
NVP~70%
-
Shield CoverageAluminium foil per pair + braided screen (≥40% coverage typical)
-
Jacket MaterialHalogen-free PVC/TPE (LSZH options available in range)
-
Operating Temperature-20 °C to +75 °C
-
Mating Cycles≥750
-
Cable Diameter~6 mm outer Ø (approx.)
-
Weight~179 g
-
Packaged Dimensions (L×W×H)19.7 × 15.1 × 4 cm
-
Standards/ComplianceISO/IEC 11801 Class F, IEC 60603-7-51, TIA/EIA wiring
