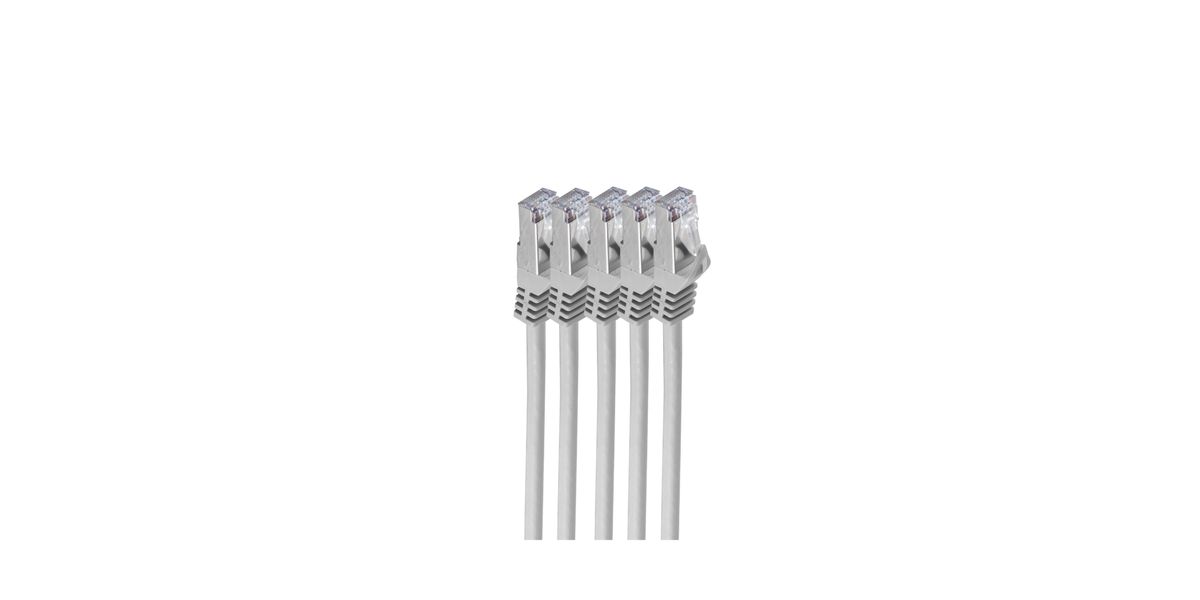

Shiverpeaks RJ45 Patch Cable S/FTP Cat7 VE5, 3 m (set of 5)

Description

Technical Specifications

• Brand
  Shiverpeaks
• Model / MPN
  BS75513-SET5
• SKU
  581573
• EAN
  4017538081759
• Category
  Cat7 S/FTP RJ45 Patch Cable
• Length
  3 m
• Pack Quantity
  VE5 (set of 5 cables)
• Shielding Type
  S/FTP (foil per pair + overall braid)
• Connector Type
  RJ45 8(8) on both ends
• Contact Plating
  Gold-plated contacts (typ. 50 µ")
• Conductor
  Stranded copper (OFC / CU)
• Wire Gauge
  26 AWG (7/0.16 mm typical)
• Insulation
  Foam PE (pair insulation)
• Outer Jacket
  TPE or LSZH (flexible / superflex variants)
• Outer Diameter
  Approx. 6-8 mm
• Bandwidth / Frequency
  Up to 500-600 MHz
• Data Rate Support
  10/100/1000/10,000 Mbps (supports 10GBase-T)
• Characteristic Impedance
  100 ±15 Ω
• Conductor Resistance (DC, 20°C)
  ≤145 Ω/km (typ.)
• Loop Resistance
  ≤284 Ω/km (typ.)
• Resistance Unbalance
  ≤2% (DC); ≤5% (1-600 MHz)
• Contact Resistance
  ≤30 mΩ
• Test Voltage
  1000 V DC (1 min, core-to-core and core-to-screen)
• Delay Skew
  ≤45 ns/100m (1-600 MHz)
• Mating Cycles
  ≥750
• Bending Radius
  >32.5 mm
• Operating Temperature
  -20°C to +75°C
• Standards / Certification
  ISO/IEC 11801, IEC 60603-7-51 (connector), GHMT/Component certification references
• Color / Boot
  Colored molded anti-kink sleeve (product-specific; commonly red for boot)
• Packaging
  VE5 retail pack (5 cables), molded boots with length imprint
• Typical Use
  Computers, hubs, switches, routers, DSL/cable modems, patch panels, data centers
