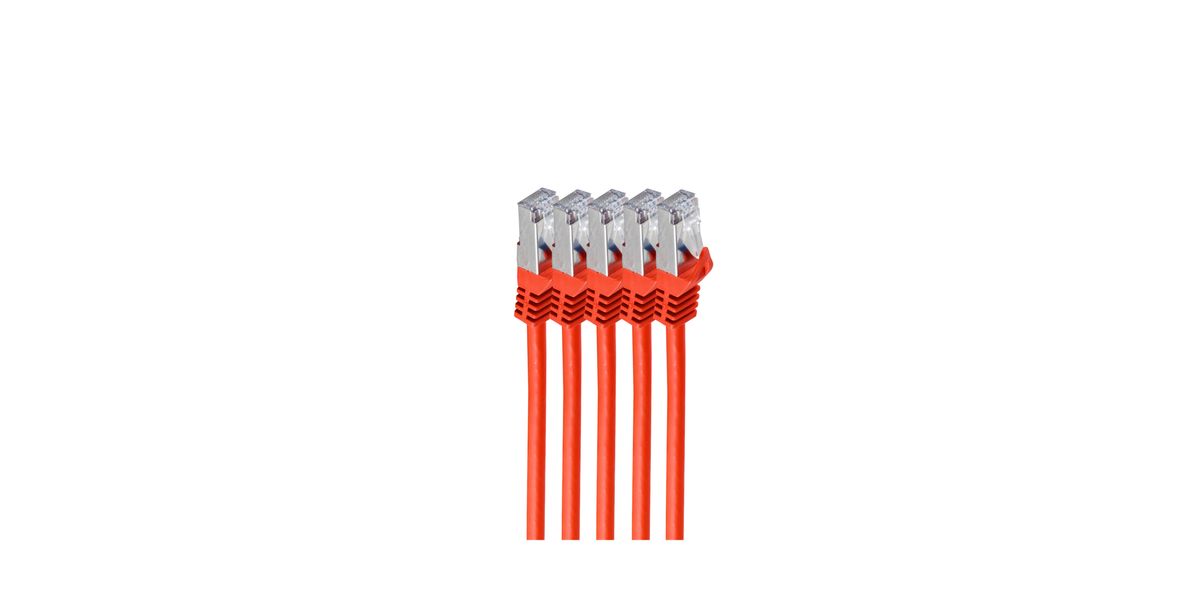

Shiverpeaks RJ45 Patch Cable S/FTP, Cat7 VE5, 3 m red (set of 5)

Description

Technical Specifications

• Brand
  Shiverpeaks
• Model / MPN
  BS75513-R-SET5
• SKU
  581578
• EAN / Barcode
  4017538081445
• Product Type
  RJ45 patch cable, shielded (S/FTP)
• Category / Class
  Cat7 / Class F
• Pack Quantity
  VE5 (set of 5 cables)
• Length per Cable
  3 m
• Color
  Red (outer jacket and anti-kink sleeve)
• Conductor
  23 AWG premium copper (stranded, patch-cable grade)
• Shielding
  S/FTP (overall foil screen + individual foil on each pair)
• Connector Type
  RJ45 plugs on both ends (IEC 60603-7-51 compliant)
• Wiring Standard
  TIA/EIA-568B
• Bandwidth
  Up to 600 MHz (Cat7 typical)
• Maximum Data Rate
  Supports 10 Gbps (10GBASE-T)
• Impedance
  100 Ω nominal
• Outer Diameter
  ~6.5 mm (typical for Cat7 S/FTP patch cables)
• Jacket Material
  TPE / flexible thermoplastic elastomer (LSZH option common)
• Flame & Environmental Standards
  IEC 60332-1 (flame retardant), IEC 60754-2 (halogen-free), IEC 61034 (low smoke)
• PoE Support
  Compatible with PoE / PoE+ / PoE++ (IEEE 802.3bt Type 4)
• Locking Lever
  Yes (standard RJ45 latch)
• Anti-kink Sleeve
  Moulded strain relief (red)
• Mating Cycles
  ≥750 (typical for quality RJ45 patch cables)
• Bending Radius
  >32.5 mm dynamic; recommended installation bend ≥4×OD
• Contact Resistance
  ≤30 mΩ (connector)
• Test Voltage
  1000 V DC (core/core and core/screen, 1 min)
• Operating Temperature
  -20°C to +75°C (typical range)
• Certifications / Performance
  Component-certified for 10G Ethernet; IEC and EIA/TIA compliant
• Package Contents
  5 × 3 m red Cat7 S/FTP RJ45 patch cables
• Retail Packaging Dimensions
  Approx. 25 × 20 × 4 cm (coiled in blister/box)
• Retail Package Weight
  Approx. 370 g
