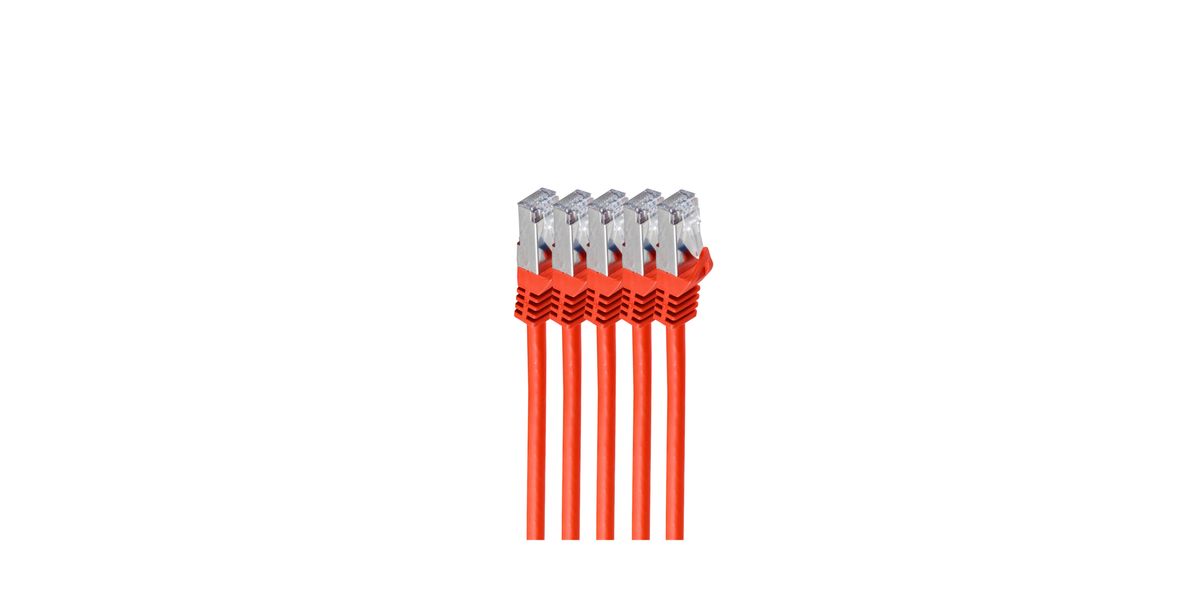

Shiverpeaks RJ45 S/FTP Cat7 patch cable, 2 m length, red, sold as VE5 (5-pack) model BS75512-R-SET5. Shielding: S/FTP (foil per pair + overall braid) for strong EMI/RFI protection and low alien crosstalk. Jacket: TPE superflex for high flexibility. Connectors: shielded RJ45 plugs with gold-plated...
More
Shiverpeaks RJ45 Patch Cable S/FTP Cat7 VE5 2m Red (5-pack, BS75512-R-SET5)
Product Code: 1117581570
Available in 1 - 3 days
41,64 €
or
1,30€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Shiverpeaks RJ45 S/FTP Cat7 patch cable, 2 m length, red, sold as VE5 (5-pack) model BS75512-R-SET5. Shielding: S/FTP (foil per pair + overall braid) for strong EMI/RFI protection and low alien crosstalk. Jacket: TPE superflex for high flexibility. Connectors: shielded RJ45 plugs with gold-plated contacts. Performance: Cat7 (Cat6A compatible), bandwidth up to 500–600 MHz, supports 10 Gbit/s (10GBASE-T) over typical channel distances. Typical electrical and mechanical characteristics match GHMT/IEC specs (impedance 100 ±15 Ω, test voltage 1000 V DC). Applications: data centers, server rooms, Gigabit and 10 Gigabit Ethernet, PoE. SKU: 581570, EAN: 4017538081636, MPN: BS75512-R-SET5.
-
BrandShiverpeaks
-
Model / MPNBS75512-R-SET5
-
SKU581570
-
EAN / Barcode4017538081636
-
Product TypeShielded RJ45 Patch Cable (S/FTP)
-
CategoryCat7 (backwards compatible with Cat6A/Cat6/Cat5e)
-
Length2 m
-
Pack Quantity5 (VE5)
-
ColorRed
-
ConductorStranded copper (solid/stranded copper conductor typical for patchcord)
-
Conductor Gauge (AWG)26 AWG (typical)
-
Jacket MaterialTPE superflex
-
Outer Diameter≈6.5 mm (typical)
-
ShieldingS/FTP (foil per pair + overall braid)
-
Impedance100 ±15 Ω
-
Bandwidth / Frequency≈500–600 MHz
-
Data RateUp to 10 Gbps (10GBASE-T)
-
Connector TypeShielded RJ45 plugs (both ends)
-
Contact PlatingGold plated contacts (typical)
-
Contact Resistance≈30 mΩ (typical)
-
Conductor DC Resistance≈142 Ω/km (typical)
-
Loop Resistance≈284 Ω/km (typical)
-
Test Voltage1000 V DC (core/core and core/screen, 1 min)
-
Mating Cycles≥750 (typical)
-
Bending RadiusMinimum >32.5 mm (typical)
-
Flame RetardantIEC 60332-1
-
Halogen FreeIEC 60754-2 (typical / similar products)
-
Low SmokeIEC 61034 (typical / similar products)
-
Operating Temperature-20 °C to +75 °C (typical)
-
PackagingRetail box/set for 5 cables (VE5)
-
Package Weight (approx.)250 g
-
Package Dimensions (approx.)20 x 12 x 3 cm
Ratings
Description
Shiverpeaks RJ45 S/FTP Cat7 patch cable, 2 m length, red, sold as VE5 (5-pack) model BS75512-R-SET5. Shielding: S/FTP (foil per pair + overall braid) for strong EMI/RFI protection and low alien crosstalk. Jacket: TPE superflex for high flexibility. Connectors: shielded RJ45 plugs with gold-plated contacts. Performance: Cat7 (Cat6A compatible), bandwidth up to 500–600 MHz, supports 10 Gbit/s (10GBASE-T) over typical channel distances. Typical electrical and mechanical characteristics match GHMT/IEC specs (impedance 100 ±15 Ω, test voltage 1000 V DC). Applications: data centers, server rooms, Gigabit and 10 Gigabit Ethernet, PoE. SKU: 581570, EAN: 4017538081636, MPN: BS75512-R-SET5.
Technical Specifications
-
BrandShiverpeaks
-
Model / MPNBS75512-R-SET5
-
SKU581570
-
EAN / Barcode4017538081636
-
Product TypeShielded RJ45 Patch Cable (S/FTP)
-
CategoryCat7 (backwards compatible with Cat6A/Cat6/Cat5e)
-
Length2 m
-
Pack Quantity5 (VE5)
-
ColorRed
-
ConductorStranded copper (solid/stranded copper conductor typical for patchcord)
-
Conductor Gauge (AWG)26 AWG (typical)
-
Jacket MaterialTPE superflex
-
Outer Diameter≈6.5 mm (typical)
-
ShieldingS/FTP (foil per pair + overall braid)
-
Impedance100 ±15 Ω
-
Bandwidth / Frequency≈500–600 MHz
-
Data RateUp to 10 Gbps (10GBASE-T)
-
Connector TypeShielded RJ45 plugs (both ends)
-
Contact PlatingGold plated contacts (typical)
-
Contact Resistance≈30 mΩ (typical)
-
Conductor DC Resistance≈142 Ω/km (typical)
-
Loop Resistance≈284 Ω/km (typical)
-
Test Voltage1000 V DC (core/core and core/screen, 1 min)
-
Mating Cycles≥750 (typical)
-
Bending RadiusMinimum >32.5 mm (typical)
-
Flame RetardantIEC 60332-1
-
Halogen FreeIEC 60754-2 (typical / similar products)
-
Low SmokeIEC 61034 (typical / similar products)
-
Operating Temperature-20 °C to +75 °C (typical)
-
PackagingRetail box/set for 5 cables (VE5)
-
Package Weight (approx.)250 g
-
Package Dimensions (approx.)20 x 12 x 3 cm
