Set of 5 Shiverpeaks RJ45 Patch Cables S/FTP Cat7, 5 m each, blue. S/FTP construction (foil per pair + overall braid) for high interference environments. Supports up to 10GBase-T and bandwidth up to 600 MHz. RJ45 8P8C connectors with gold-plated contacts, RJ45 straight-through (1:1). Suitable for...
More

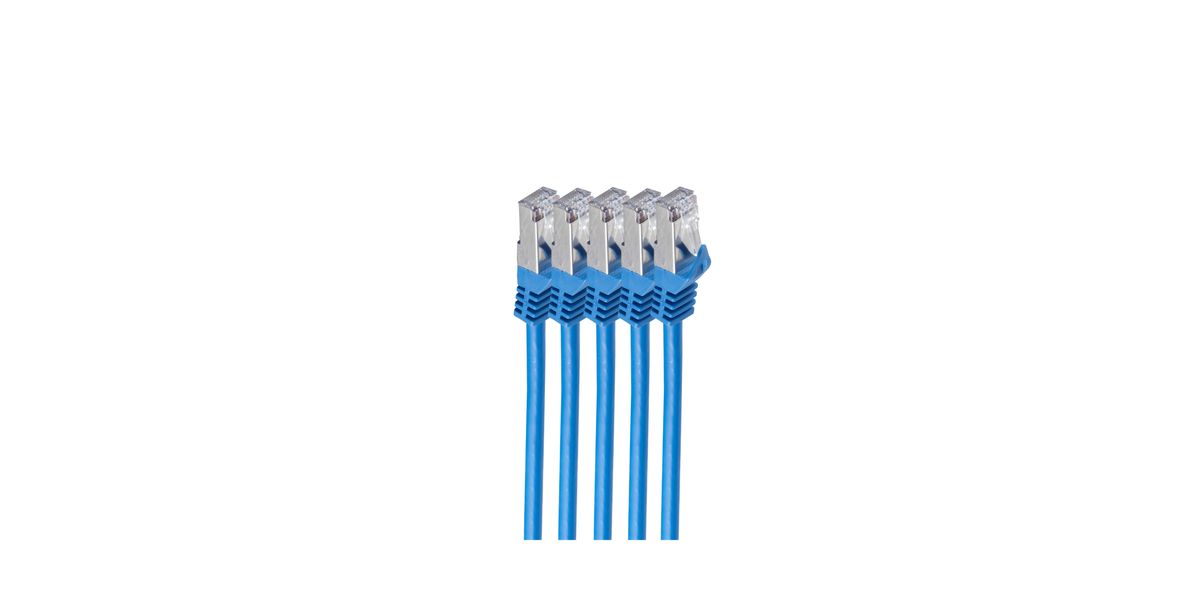

Shiverpeaks RJ45 Patch Cable S/FTP Cat7 Set of 5, 5 m, Blue
Product Code: 1117581583
Available in 1 - 3 days
72,28 €
or
2,26€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Set of 5 Shiverpeaks RJ45 Patch Cables S/FTP Cat7, 5 m each, blue. S/FTP construction (foil per pair + overall braid) for high interference environments. Supports up to 10GBase-T and bandwidth up to 600 MHz. RJ45 8P8C connectors with gold-plated contacts, RJ45 straight-through (1:1). Suitable for structured cabling, PoE/PoE++ and multimedia/data center installations. Conforms to ISO/IEC 11801 and IEC standards. Classified as Class F (Category 7).
-
BrandShiverpeaks
-
Model / MPNBS75515-B-SET5
-
SKU581583
-
EAN / Barcode4017538081643
-
Package / UnitVE5 (set of 5 cables)
-
Length5 m
-
ColorBlue
-
Connector TypeRJ45 (8P8C), straight-through (1:1)
-
Cable TypeS/FTP (Foiled pairs + overall braid)
-
Category RatingCAT7 (Class F)
-
Frequency SupportUp to 600 MHz
-
Data Rate Support10GBase-T
-
Impedance100 ± 15 Ω
-
Conductor MaterialOxygen-free copper (OFC)
-
Wire Gauge26 AWG (7/0.16 mm) stranded
-
Conductor Quantity4 twisted pairs
-
InsulationFOAM PE
-
Jacket MaterialPVC (RoHS compliant)
-
ShieldingS/FTP (individual foil around pairs + braided overall shield)
-
Contact PlatingGold-plated contacts (~50 µm)
-
Delay Skew≤45 ns/100 m
-
DC Conductor Resistance~145 Ω/km
-
Test Voltage1000 V DC (1 min) core-core & core-screen
-
Bending Radius>32.5 mm
-
Mating Cycles≥750
-
Temperature Range-20 °C to 75 °C
-
Mechanical Tensile Strength≥13.5 MPa
-
Outer Jacket Elongation≥150%
-
Cold Bend PerformanceNo visible cracks at -20±2°C × 4 h
-
Anti-kink SleeveMoulded strain-relief design
-
Standards / ComplianceISO/IEC 11801, IEC 60603-7-51, EIA/TIA performance requirements
-
PoE SupportSupports PoE and PoE++
-
Suitable RunSupports standard 100 m horizontal runs
Ratings
Description
Set of 5 Shiverpeaks RJ45 Patch Cables S/FTP Cat7, 5 m each, blue. S/FTP construction (foil per pair + overall braid) for high interference environments. Supports up to 10GBase-T and bandwidth up to 600 MHz. RJ45 8P8C connectors with gold-plated contacts, RJ45 straight-through (1:1). Suitable for structured cabling, PoE/PoE++ and multimedia/data center installations. Conforms to ISO/IEC 11801 and IEC standards. Classified as Class F (Category 7).
Technical Specifications
-
BrandShiverpeaks
-
Model / MPNBS75515-B-SET5
-
SKU581583
-
EAN / Barcode4017538081643
-
Package / UnitVE5 (set of 5 cables)
-
Length5 m
-
ColorBlue
-
Connector TypeRJ45 (8P8C), straight-through (1:1)
-
Cable TypeS/FTP (Foiled pairs + overall braid)
-
Category RatingCAT7 (Class F)
-
Frequency SupportUp to 600 MHz
-
Data Rate Support10GBase-T
-
Impedance100 ± 15 Ω
-
Conductor MaterialOxygen-free copper (OFC)
-
Wire Gauge26 AWG (7/0.16 mm) stranded
-
Conductor Quantity4 twisted pairs
-
InsulationFOAM PE
-
Jacket MaterialPVC (RoHS compliant)
-
ShieldingS/FTP (individual foil around pairs + braided overall shield)
-
Contact PlatingGold-plated contacts (~50 µm)
-
Delay Skew≤45 ns/100 m
-
DC Conductor Resistance~145 Ω/km
-
Test Voltage1000 V DC (1 min) core-core & core-screen
-
Bending Radius>32.5 mm
-
Mating Cycles≥750
-
Temperature Range-20 °C to 75 °C
-
Mechanical Tensile Strength≥13.5 MPa
-
Outer Jacket Elongation≥150%
-
Cold Bend PerformanceNo visible cracks at -20±2°C × 4 h
-
Anti-kink SleeveMoulded strain-relief design
-
Standards / ComplianceISO/IEC 11801, IEC 60603-7-51, EIA/TIA performance requirements
-
PoE SupportSupports PoE and PoE++
-
Suitable RunSupports standard 100 m horizontal runs
