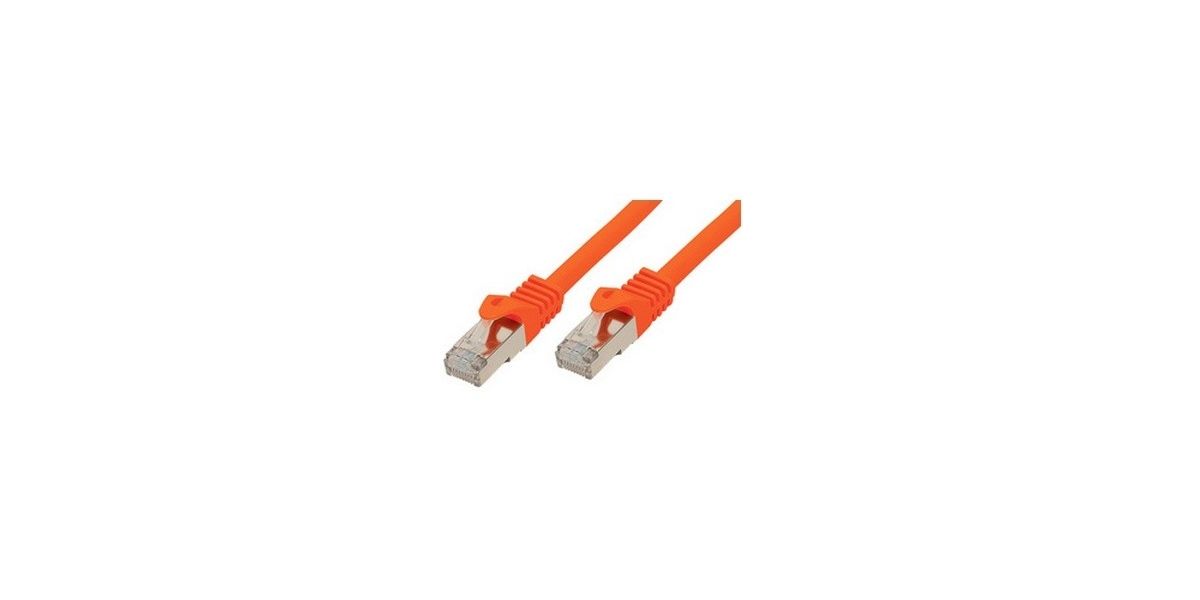

Shiverpeaks RJ45 Patch Cable S/FTP Cat7 LSZH 7.5m Orange (BS75517-O)

Description

Technical Specifications

• Brand
  Shiverpeaks
• Model / MPN
  BS75517-O
• SKU
  581176
• EAN / Barcode
  4017538052032
• Color
  Orange
• Length
  7.5 m
• Category / Class
  CAT7 (Class F)
• Rated Frequency
  ~500–600 MHz (cable/raw: up to ~600 MHz, connectors typically Cat6A rated 500 MHz)
• Maximum Data Rate
  Up to 10 Gbit/s (10GBASE-T over 100 m)
• Shielding
  S/FTP (overall braided shield + foil per twisted pair), PiMF
• Connector Type
  RJ45 (8P8C) plugs on both ends
• Contact Plating
  Gold-plated contacts (typ. 50 µ")
• Conductor Material
  Pure copper (solid/stranded construction typical for patch cords)
• Conductor AWG
  AWG 26 (approx. 7/0.16 mm strands)
• Jacket Material
  LSZH (Low Smoke Zero Halogen), halogen-free, flame-retardant
• Cable Diameter
  Approx. Ø 6.0 mm ±0.2 mm
• Characteristic Impedance
  100 Ω (nominal)
• Max DC Resistance
  ≤9.5 Ω/100 m (typical CAT7 spec)
• Delay Skew
  ≤45 ns/100 m (typical CAT7 spec)
• Capacitance Unbalance to Ground
  ≤1600 pF/km (typical CAT7 spec)
• Velocity of Propagation
  ~70% (nominal)
• PoE Support
  Suitable for PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) depending on installation
• Backward Compatibility
  Cat6a, Cat6, Cat5e
• Standards Compliance
  Meets CAT7 S/FTP performance class (IEC/EN/EIA-TIA family typical)
• Applications
  10GbE networks, data centers, office networks, PoE devices, environments with high EMI
• Packaging Type
  Retail blister/coil packaging (single patch cable)
• Weight (product, estimated)
  ~100 g
