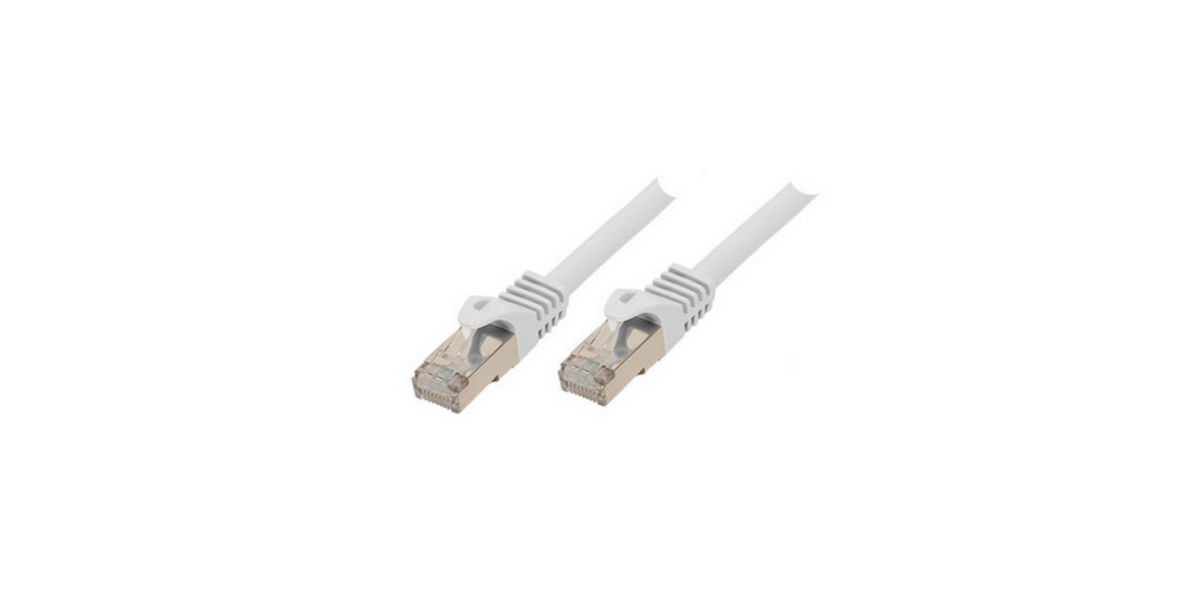

Shiverpeaks RJ45 Patch Cable S/FTP Cat7 LSZH 50m White (BS75550-W)

Description

Technical Specifications

• Brand
  Shiverpeaks
• Model / MPN
  BS75550-W
• SKU
  581257
• EAN / Barcode
  4017538075734
• Product Type
  RJ45 patch cable (pre-terminated)
• Category
  Cat7 (Class F)
• Shielding
  S/FTP (overall braided shield + foil per pair, PiMF)
• Connector Type
  RJ45 (8P8C) to RJ45 (8P8C), molded plugs
• Pinout
  Straight-through (1:1), typically TIA/EIA-568B
• Length
  50 m
• Color
  White (weiß)
• Jacket Material
  LSZH (Low Smoke Zero Halogen), halogen-free
• Conductor Material
  Pure copper (solid/stranded depending on variant) - AWG 26 typical
• Cable Diameter
  Ø ~6 mm ±0.2 mm (typical for Cat7 S/FTP patch cable)
• Bandwidth / Frequency
  600 MHz (Class F)
• Data Rate
  Up to 10 Gbit/s (10GBASE-T)
• Impedance
  100 Ω (nominal)
• PoE Support
  Supports PoE (IEEE 802.3af/at) and higher PoE standards (verify for full power delivery)
• Compatibility
  Backward compatible with Cat6A, Cat6, Cat5e
• Contact Plating
  Gold-plated contacts (typical 50 µ")
• Bending Radius
  Minimum >32.5 mm (typical)
• Operating Temperature
  -20 °C to +75 °C (typical)
• Storage Temperature
  -20 °C to +75 °C (typical)
• Mating Cycles
  ≥750 (connector durability typical value)
• Test Voltage
  1000 V DC (core-to-core and core-to-screen, typical test)
• Conductor DC Resistance
  ≈≤9.5 Ω/100 m (typical max. for AWG26)
• Flammability / Safety
  LSZH jacket reduces smoke and toxic gas in fire
• Certifications / Standards
  Meets IEC/EN/EIA-TIA related connector/cable requirements; Class F performance
• Typical Use Cases
  Structured cabling, server rooms, multimedia, 10G Ethernet, EMI-sensitive installations
• Length Marking
  Yes (length imprint on boot typical)
• Packaging
  Coiled cable on spool/box for 50 m units (retailer packaging varies)
