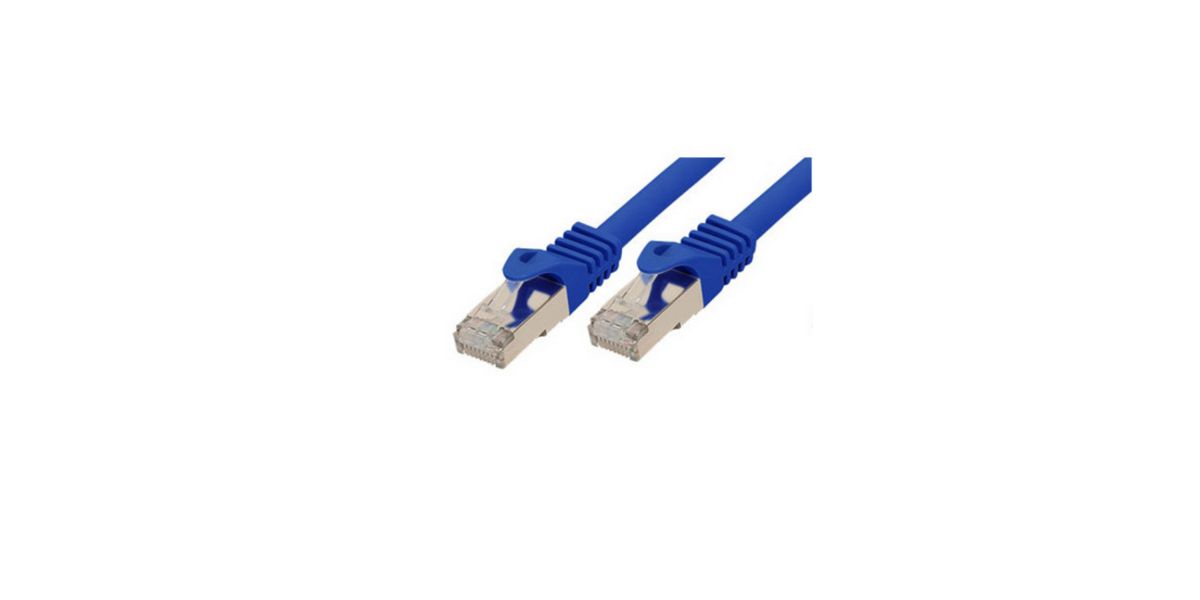

Shiverpeaks RJ45 Cat7 S/FTP (PiMF) patch cable, 50 m, LSZH jacket, blue. Individually foil-shielded pairs with an overall braided shield for strong EMI/RFI and alien-crosstalk protection. Rated for 600 MHz and 10 Gbps over standard distances, uses shielded RJ45 plugs with gold-plated contacts....
More
Shiverpeaks RJ45 Patch Cable S/FTP Cat7 LSZH 50m Blue (SKU 581252, MPN BS75550-B)
Product Code: 1117581252
Available in 1 - 3 days
97,29 €
or
3,04€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Shiverpeaks RJ45 Cat7 S/FTP (PiMF) patch cable, 50 m, LSZH jacket, blue. Individually foil-shielded pairs with an overall braided shield for strong EMI/RFI and alien-crosstalk protection. Rated for 600 MHz and 10 Gbps over standard distances, uses shielded RJ45 plugs with gold-plated contacts. Suitable for high-speed Ethernet, PoE, VoIP and structured cabling.
-
BrandShiverpeaks
-
Model / MPNBS75550-B
-
SKU581252
-
EAN / Barcode4017538075932
-
Product TypeRJ45 patch cable (Ethernet patch cord)
-
Category RatingCat7 (Class F)
-
ShieldingS/FTP (PiMF): foil per pair + overall braided screen
-
Conductor MaterialPure copper (stranded, AWG 26)
-
Number of Pairs4 twisted pairs
-
Bandwidth600 MHz
-
Maximum Data Rate10 Gbps (10GBASE-T)
-
ConnectorsRJ45 (8P8C) shielded plugs with gold-plated contacts (~50 µ)
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Jacket ColorBlue (approx. RAL 5015)
-
Length50 m
-
Cable Diameter~6–7 mm
-
Impedance100 Ω ±15 Ω
-
Contact Resistance≤30 mΩ
-
Test Voltage1000 V DC (1 min) core/core and core/screen
-
Temperature RangeOperation: approx. -20°C to +70°C
-
Bend RadiusInstallation ≥58 mm; Operation ≥29 mm
-
Mating Cycles≥750
-
StandardsISO/IEC 11801, EN 50173-1, TIA/EIA-568B, IEC 60603-7-51
-
RoHS ComplianceYes
-
Typical Product Weight~2600 g
-
Typical Package Weight~2800 g
Ratings
Description
Shiverpeaks RJ45 Cat7 S/FTP (PiMF) patch cable, 50 m, LSZH jacket, blue. Individually foil-shielded pairs with an overall braided shield for strong EMI/RFI and alien-crosstalk protection. Rated for 600 MHz and 10 Gbps over standard distances, uses shielded RJ45 plugs with gold-plated contacts. Suitable for high-speed Ethernet, PoE, VoIP and structured cabling.
Technical Specifications
-
BrandShiverpeaks
-
Model / MPNBS75550-B
-
SKU581252
-
EAN / Barcode4017538075932
-
Product TypeRJ45 patch cable (Ethernet patch cord)
-
Category RatingCat7 (Class F)
-
ShieldingS/FTP (PiMF): foil per pair + overall braided screen
-
Conductor MaterialPure copper (stranded, AWG 26)
-
Number of Pairs4 twisted pairs
-
Bandwidth600 MHz
-
Maximum Data Rate10 Gbps (10GBASE-T)
-
ConnectorsRJ45 (8P8C) shielded plugs with gold-plated contacts (~50 µ)
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Jacket ColorBlue (approx. RAL 5015)
-
Length50 m
-
Cable Diameter~6–7 mm
-
Impedance100 Ω ±15 Ω
-
Contact Resistance≤30 mΩ
-
Test Voltage1000 V DC (1 min) core/core and core/screen
-
Temperature RangeOperation: approx. -20°C to +70°C
-
Bend RadiusInstallation ≥58 mm; Operation ≥29 mm
-
Mating Cycles≥750
-
StandardsISO/IEC 11801, EN 50173-1, TIA/EIA-568B, IEC 60603-7-51
-
RoHS ComplianceYes
-
Typical Product Weight~2600 g
-
Typical Package Weight~2800 g
