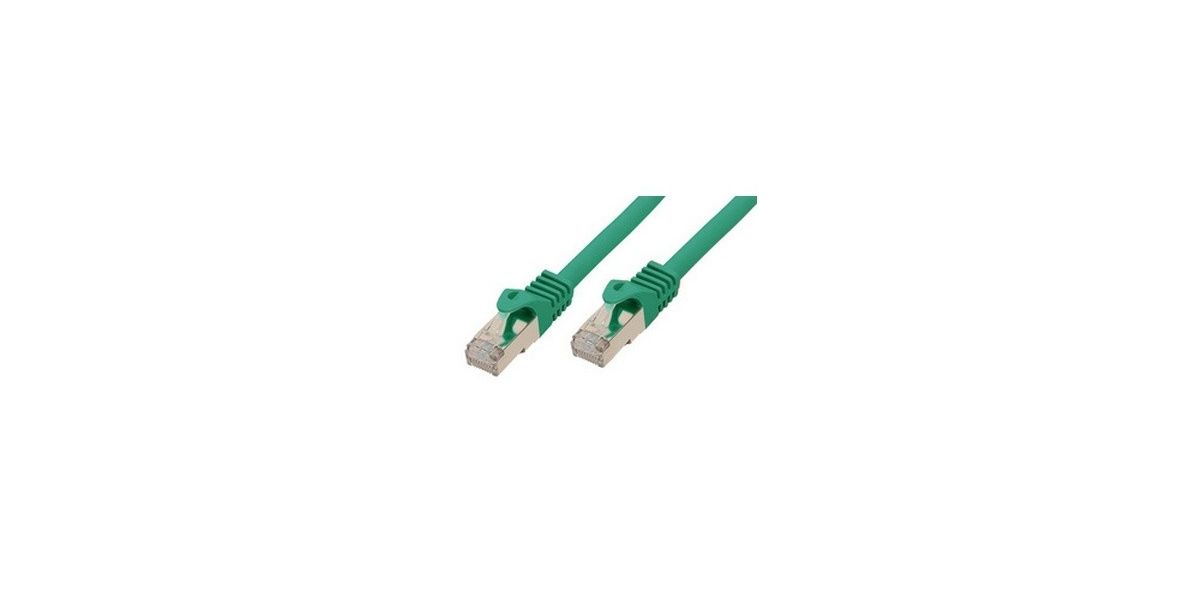

Shiverpeaks RJ45 Patch Cable S/FTP Cat7 LSZH 2.0m Green

Description

Technical Specifications

• Brand
  Shiverpeaks
• Model/MPN
  BS75512-G
• SKU
  581108
• EAN/Barcode
  4017538007100
• Product Type
  RJ45 to RJ45 Patch Cable (Patchcord)
• Category
  Cat7
• Shielding Type
  S/FTP (overall braided shield + foil per pair, PiMF)
• Jacket Material
  LSZH (Low Smoke Zero Halogen)
• Cable Length
  2.0 m
• Connectors
  RJ45 male – 8P8C (gold-plated contacts)
• Conductor Material
  Pure copper (stranded)
• Conductor Gauge
  ~26 AWG (typical for Cat7 patch cords)
• Bandwidth/Frequency
  ~500–600 MHz
• Data Rate
  Up to 10 Gbit/s (10GBASE-T)
• Impedance
  100 Ω
• Cable Diameter
  ~6.0 mm (typical)
• Jacket Color
  Green
• Return Loss / NEXT Performance
  Optimized for Cat7 patch performance (low NEXT/ACR)
• Mating Cycles
  ≥750 (typical RJ45 specification)
• Temperature Range (operation)
  -20 °C to +75 °C (typical)
• Bending Radius
  >=4x diameter (fixed), >=8x diameter (flexible)
• Standards Compliance
  Meets Cat7 S/FTP norms (ISO/IEC 11801 family / IEC standards typical)
• RoHS / Halogen-free
  Yes (LSZH = halogen-free)
• Use Cases
  High-speed LAN, 10GbE short links, gaming, streaming, office and data center patching
• Accessories / Features
  Moulded boot / strain relief, color-coded green for easy identification
