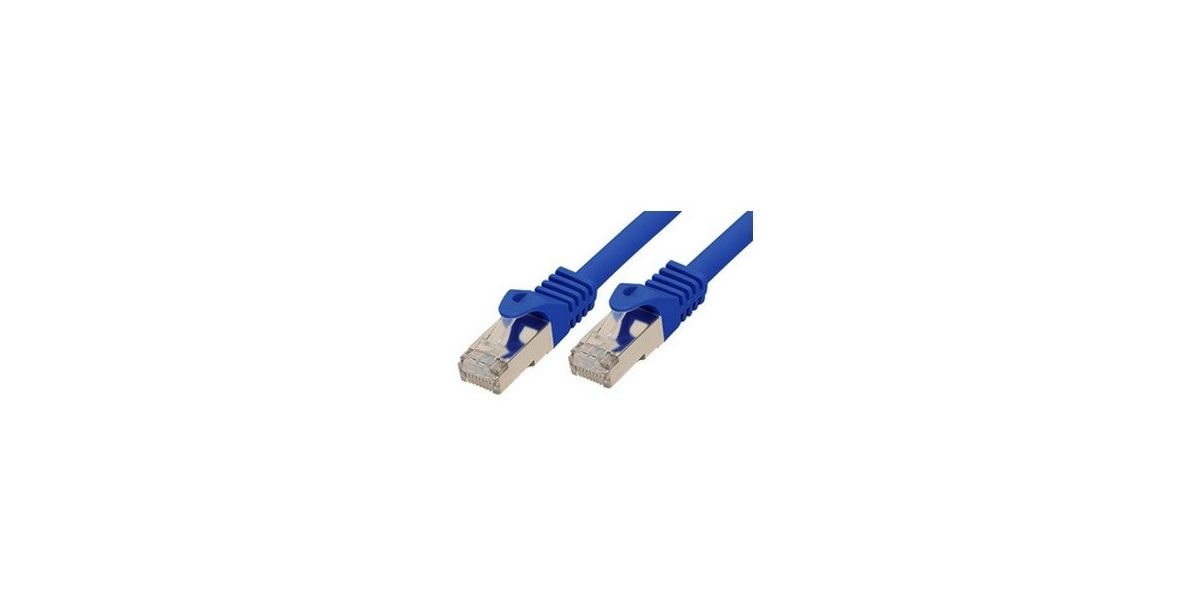

Shiverpeaks RJ45 Cat7 S/FTP patch cable, 15 m, LSZH jacket, blue. Double-shielded (individually foil-shielded pairs + overall braid) with stranded pure copper conductors (4 x 2 x AWG26). Designed for up to 10 Gbps and 600 MHz bandwidth. Molded RJ45 plugs with gold-plated contacts, snagless boot and...
More
Shiverpeaks RJ45 Patch Cable S/FTP Cat7 LSZH 15m Blue (MPN: BS75525-B)
Product Code: 1117581204
Available in 1 - 3 days
34,13 €
or
1,07€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Shiverpeaks RJ45 Cat7 S/FTP patch cable, 15 m, LSZH jacket, blue. Double-shielded (individually foil-shielded pairs + overall braid) with stranded pure copper conductors (4 x 2 x AWG26). Designed for up to 10 Gbps and 600 MHz bandwidth. Molded RJ45 plugs with gold-plated contacts, snagless boot and strain relief. Suitable for data centers, server rooms, enterprise networks and PoE applications. MPN: BS75525-B, SKU: 581204, EAN: 4017538008244.
-
BrandShiverpeaks
-
MPNBS75525-B
-
SKU581204
-
EAN4017538008244
-
Product CategoryNetwork cable / RJ45 patch cable
-
Cable CategoryCAT 7
-
Shielding TypeS/FTP (individually foil-shielded pairs + overall braided shield - PiMF)
-
Conductor Configuration4 x 2 x AWG 26 (stranded)
-
Conductor MaterialPure copper (full copper)
-
Outer JacketLSZH (Low Smoke Zero Halogen)
-
Cable Diameter~6 mm ± 0.2 mm
-
Length15 m
-
ColorBlue
-
Bandwidth600 MHz
-
Maximum Data RateUp to 10 Gbps
-
Characteristic Impedance100 ± 15 Ω
-
DC Conductor Resistance~145 Ω/km
-
Maximum Delay Skew≤45 ns/100 m
-
Insulation Resistance≥100 MΩ
-
Connector TypeRJ45 (8P8C) plugs on both ends
-
Pin AssignmentTIA/EIA 568B (1:1 wiring)
-
Contact PlatingGold-plated (50 µm specified in vendor data)
-
Connector StandardIEC 60603-7-51
-
Design FeaturesSnagless/molded boot, strain relief, anti-kink sleeve, locking lever
-
Mating Cycles≥750
-
Minimum Bend Radius>32.5 mm
-
Operating Temperature Range-20°C to +75°C
-
Standards & ComplianceISO/IEC 11801, IEC family standards, RoHS compliant, LSZH (halogen-free)
-
Suitable Applications10GBASE-T, 10/5/2.5/1 GBASE-T, Gigabit Ethernet, data centers, server rooms, telecom closets, PoE/PoE+
-
Backward CompatibilityCompatible with Cat5/Cat5e/Cat6/Cat6a installations
-
PackagingCoiled cable with molded connectors in retail packaging
Ratings
Description
Shiverpeaks RJ45 Cat7 S/FTP patch cable, 15 m, LSZH jacket, blue. Double-shielded (individually foil-shielded pairs + overall braid) with stranded pure copper conductors (4 x 2 x AWG26). Designed for up to 10 Gbps and 600 MHz bandwidth. Molded RJ45 plugs with gold-plated contacts, snagless boot and strain relief. Suitable for data centers, server rooms, enterprise networks and PoE applications. MPN: BS75525-B, SKU: 581204, EAN: 4017538008244.
Technical Specifications
-
BrandShiverpeaks
-
MPNBS75525-B
-
SKU581204
-
EAN4017538008244
-
Product CategoryNetwork cable / RJ45 patch cable
-
Cable CategoryCAT 7
-
Shielding TypeS/FTP (individually foil-shielded pairs + overall braided shield - PiMF)
-
Conductor Configuration4 x 2 x AWG 26 (stranded)
-
Conductor MaterialPure copper (full copper)
-
Outer JacketLSZH (Low Smoke Zero Halogen)
-
Cable Diameter~6 mm ± 0.2 mm
-
Length15 m
-
ColorBlue
-
Bandwidth600 MHz
-
Maximum Data RateUp to 10 Gbps
-
Characteristic Impedance100 ± 15 Ω
-
DC Conductor Resistance~145 Ω/km
-
Maximum Delay Skew≤45 ns/100 m
-
Insulation Resistance≥100 MΩ
-
Connector TypeRJ45 (8P8C) plugs on both ends
-
Pin AssignmentTIA/EIA 568B (1:1 wiring)
-
Contact PlatingGold-plated (50 µm specified in vendor data)
-
Connector StandardIEC 60603-7-51
-
Design FeaturesSnagless/molded boot, strain relief, anti-kink sleeve, locking lever
-
Mating Cycles≥750
-
Minimum Bend Radius>32.5 mm
-
Operating Temperature Range-20°C to +75°C
-
Standards & ComplianceISO/IEC 11801, IEC family standards, RoHS compliant, LSZH (halogen-free)
-
Suitable Applications10GBASE-T, 10/5/2.5/1 GBASE-T, Gigabit Ethernet, data centers, server rooms, telecom closets, PoE/PoE+
-
Backward CompatibilityCompatible with Cat5/Cat5e/Cat6/Cat6a installations
-
PackagingCoiled cable with molded connectors in retail packaging
