Shiverpeaks RJ45 patch cable S/FTP (PiMF), Category 7 raw cable, 1.5 m length, LSZH jacket, orange. Shielded design (overall braid + foil per pair) for reduced EMI and crosstalk. Supports up to 10 Gbps (10GBASE-T) and frequencies to 600 MHz (raw cable), compatible with Gigabit and multi-gigabit...
More

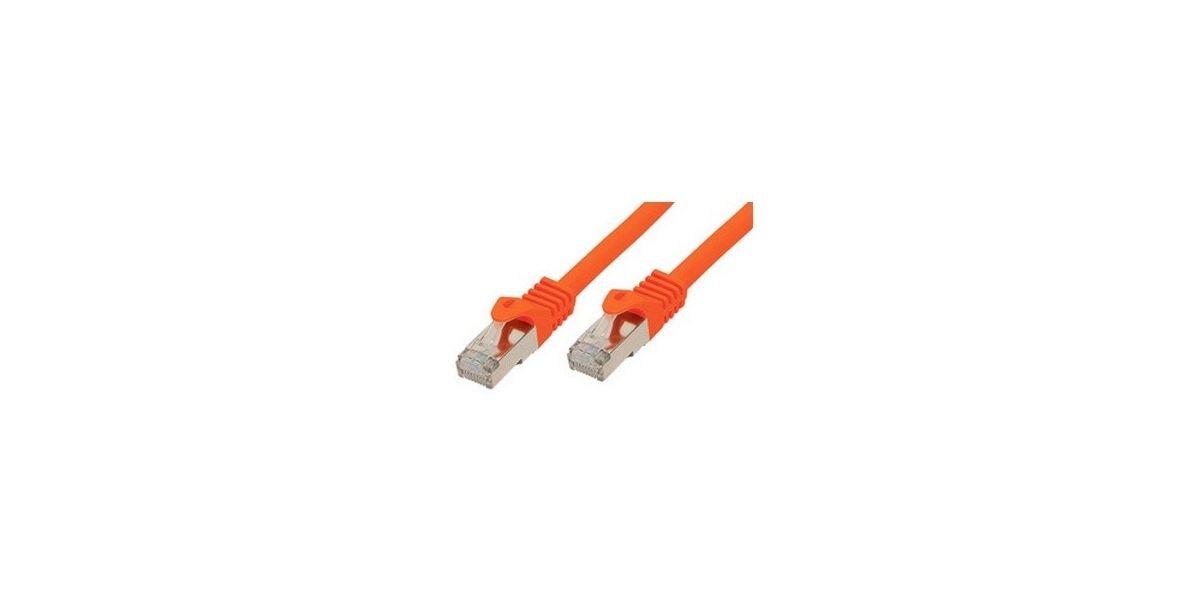

Shiverpeaks RJ45 Patch Cable S/FTP Cat7 LSZH 1.5 m Orange
Product Code: 1117581094
Available in 1 - 3 days
12,01 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Shiverpeaks RJ45 patch cable S/FTP (PiMF), Category 7 raw cable, 1.5 m length, LSZH jacket, orange. Shielded design (overall braid + foil per pair) for reduced EMI and crosstalk. Supports up to 10 Gbps (10GBASE-T) and frequencies to 600 MHz (raw cable), compatible with Gigabit and multi-gigabit Ethernet, PoE/PoE+. RJ45 8P8C male to male, gold-plated contacts, 1:1 wiring (TIA/EIA 568B). Suitable for patch panels, switches and workstation connections.
-
BrandShiverpeaks
-
Model/MPNBS75511-1.5O
-
SKU581094
-
EAN4017538006110
-
Cable CategoryCat7 (raw cable), CAT6A RJ45 connectors
-
Length1.5 m
-
ColorOrange
-
Shielding TypeS/FTP (PiMF) – overall braided shield + foil per twisted pair
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Conductor MaterialPure copper (Cu)
-
Conductor GaugeAWG 26 (stranded, typical 26/7)
-
Cable DiameterApprox. Ø 6 mm ±0.2 mm
-
Impedance100 Ω ±15 Ω
-
Frequency/BandwidthUp to 600 MHz (raw cable), CAT6A RJ45 rated to 500 MHz
-
Data Rates Supported10/100/1000/10,000 Mbps (10GBASE-T), backward compatible with 2.5G/5G and legacy standards
-
Connector TypeRJ45 (8P8C) male to male
-
Pinout1:1 (TIA/EIA 568B)
-
Contact PlatingGold-plated contacts (typical 50 µ")
-
Contact Resistance≤30 mΩ
-
Test Voltage1000 V DC (1 min core-to-core/screen)
-
Bending Radius>32.5 mm (typical series spec)
-
Mating Cycles≥750
-
Operating Temperature-20 °C to +75 °C
-
Flammability/HalogenLSZH - halogen-free, low smoke
-
ApplicationsPatch panels, switches, data centers, office/home LANs, PoE
-
CertificationsCE, RoHS (component/series typical)
-
PackageSingle piece in PE bag (retail/bulk variants)
Ratings
Description
Shiverpeaks RJ45 patch cable S/FTP (PiMF), Category 7 raw cable, 1.5 m length, LSZH jacket, orange. Shielded design (overall braid + foil per pair) for reduced EMI and crosstalk. Supports up to 10 Gbps (10GBASE-T) and frequencies to 600 MHz (raw cable), compatible with Gigabit and multi-gigabit Ethernet, PoE/PoE+. RJ45 8P8C male to male, gold-plated contacts, 1:1 wiring (TIA/EIA 568B). Suitable for patch panels, switches and workstation connections.
Technical Specifications
-
BrandShiverpeaks
-
Model/MPNBS75511-1.5O
-
SKU581094
-
EAN4017538006110
-
Cable CategoryCat7 (raw cable), CAT6A RJ45 connectors
-
Length1.5 m
-
ColorOrange
-
Shielding TypeS/FTP (PiMF) – overall braided shield + foil per twisted pair
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Conductor MaterialPure copper (Cu)
-
Conductor GaugeAWG 26 (stranded, typical 26/7)
-
Cable DiameterApprox. Ø 6 mm ±0.2 mm
-
Impedance100 Ω ±15 Ω
-
Frequency/BandwidthUp to 600 MHz (raw cable), CAT6A RJ45 rated to 500 MHz
-
Data Rates Supported10/100/1000/10,000 Mbps (10GBASE-T), backward compatible with 2.5G/5G and legacy standards
-
Connector TypeRJ45 (8P8C) male to male
-
Pinout1:1 (TIA/EIA 568B)
-
Contact PlatingGold-plated contacts (typical 50 µ")
-
Contact Resistance≤30 mΩ
-
Test Voltage1000 V DC (1 min core-to-core/screen)
-
Bending Radius>32.5 mm (typical series spec)
-
Mating Cycles≥750
-
Operating Temperature-20 °C to +75 °C
-
Flammability/HalogenLSZH - halogen-free, low smoke
-
ApplicationsPatch panels, switches, data centers, office/home LANs, PoE
-
CertificationsCE, RoHS (component/series typical)
-
PackageSingle piece in PE bag (retail/bulk variants)
