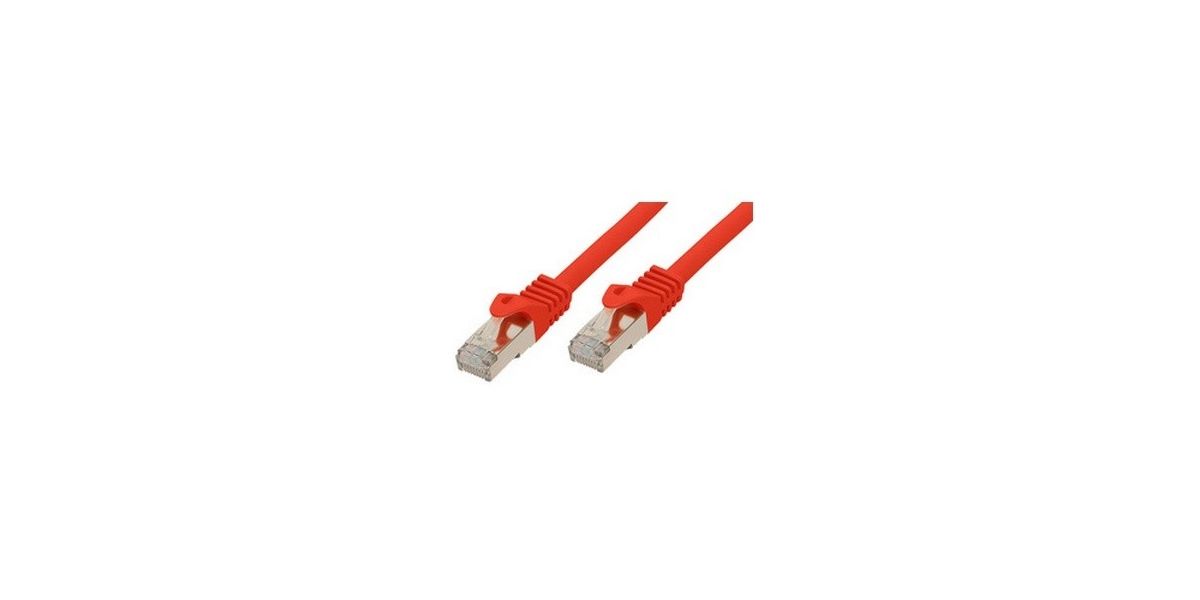

Shiverpeaks Cat7 RJ45 patch cable (MPN BS75520-R / SKU 581197). 10 meters length, red jacket. S/FTP shielding (foil per pair + overall braid) with LSZH (Low Smoke Zero Halogen) outer jacket. Supports up to 10 Gbps Ethernet and frequencies up to approx. 600 MHz. Terminated with RJ45 male connectors...
More
Shiverpeaks RJ45 Patch Cable S/FTP Cat7 LSZH 10m Red (BS75520-R)
Product Code: 1117581197
Available in 1 - 3 days
34,25 €
or
1,07€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Shiverpeaks Cat7 RJ45 patch cable (MPN BS75520-R / SKU 581197). 10 meters length, red jacket. S/FTP shielding (foil per pair + overall braid) with LSZH (Low Smoke Zero Halogen) outer jacket. Supports up to 10 Gbps Ethernet and frequencies up to approx. 600 MHz. Terminated with RJ45 male connectors (TIA/EIA 568B wiring). Typical conductor: stranded pure copper (commonly 23 AWG for Cat7 patch cables). Backwards compatible with Cat6/Cat6A/Cat5e. Ideal for data centers, switches/routers, servers, PoE/PoE++ systems and EMI-prone environments. Certifications/Compliance commonly met: ISO/IEC 11801, RoHS, CE.
-
BrandShiverpeaks
-
Model / MPNBS75520-R
-
SKU581197
-
EAN / Barcode4017538007049
-
Product TypeRJ45 Patch Cable
-
Category / ClassCat7 (Class F) S/FTP
-
ShieldingS/FTP (foil per pair + overall braided shield)
-
Length10 meters
-
ColorRed
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Connector TypeRJ45 male to RJ45 male (EIA/TIA 568B)
-
Conductor MaterialPure copper (stranded, typical)
-
Conductor Gauge (AWG)23 AWG (typical for Cat7 patch cables)
-
BandwidthUp to ~600 MHz
-
Data RateSupports 10 Gbps (10GBase-T) up to standard cable distances
-
Backward CompatibilityCat6A, Cat6, Cat5e
-
Typical OD (approx.)~7.5 - 8.3 mm (round cable, typical for 23AWG S/FTP Cat7)
-
PoE SupportCompatible with PoE / PoE++ (IEEE 802.3at / 802.3bt) applications
-
Standards / ComplianceISO/IEC 11801, IEC, EIA/TIA, RoHS, CE (typical)
-
Operating Temperature RangeApprox. -20 °C to +70 °C
-
Bend Radius (approx.)Fixed: 4× OD, Flexible: 8× OD
-
Typical Max DC Resistance≤9.5 Ω/100m (characteristic for 23AWG copper)
-
Impedance100 Ω nominal
-
Shield Drain WireTinned copper (common)
-
Jacket Color CodeRed (rot)
-
Typical Use Cases10 Gigabit Ethernet, structured cabling, data centers, industrial/noisy environments
Ratings
Description
Shiverpeaks Cat7 RJ45 patch cable (MPN BS75520-R / SKU 581197). 10 meters length, red jacket. S/FTP shielding (foil per pair + overall braid) with LSZH (Low Smoke Zero Halogen) outer jacket. Supports up to 10 Gbps Ethernet and frequencies up to approx. 600 MHz. Terminated with RJ45 male connectors (TIA/EIA 568B wiring). Typical conductor: stranded pure copper (commonly 23 AWG for Cat7 patch cables). Backwards compatible with Cat6/Cat6A/Cat5e. Ideal for data centers, switches/routers, servers, PoE/PoE++ systems and EMI-prone environments. Certifications/Compliance commonly met: ISO/IEC 11801, RoHS, CE.
Technical Specifications
-
BrandShiverpeaks
-
Model / MPNBS75520-R
-
SKU581197
-
EAN / Barcode4017538007049
-
Product TypeRJ45 Patch Cable
-
Category / ClassCat7 (Class F) S/FTP
-
ShieldingS/FTP (foil per pair + overall braided shield)
-
Length10 meters
-
ColorRed
-
Jacket MaterialLSZH (Low Smoke Zero Halogen)
-
Connector TypeRJ45 male to RJ45 male (EIA/TIA 568B)
-
Conductor MaterialPure copper (stranded, typical)
-
Conductor Gauge (AWG)23 AWG (typical for Cat7 patch cables)
-
BandwidthUp to ~600 MHz
-
Data RateSupports 10 Gbps (10GBase-T) up to standard cable distances
-
Backward CompatibilityCat6A, Cat6, Cat5e
-
Typical OD (approx.)~7.5 - 8.3 mm (round cable, typical for 23AWG S/FTP Cat7)
-
PoE SupportCompatible with PoE / PoE++ (IEEE 802.3at / 802.3bt) applications
-
Standards / ComplianceISO/IEC 11801, IEC, EIA/TIA, RoHS, CE (typical)
-
Operating Temperature RangeApprox. -20 °C to +70 °C
-
Bend Radius (approx.)Fixed: 4× OD, Flexible: 8× OD
-
Typical Max DC Resistance≤9.5 Ω/100m (characteristic for 23AWG copper)
-
Impedance100 Ω nominal
-
Shield Drain WireTinned copper (common)
-
Jacket Color CodeRed (rot)
-
Typical Use Cases10 Gigabit Ethernet, structured cabling, data centers, industrial/noisy environments
