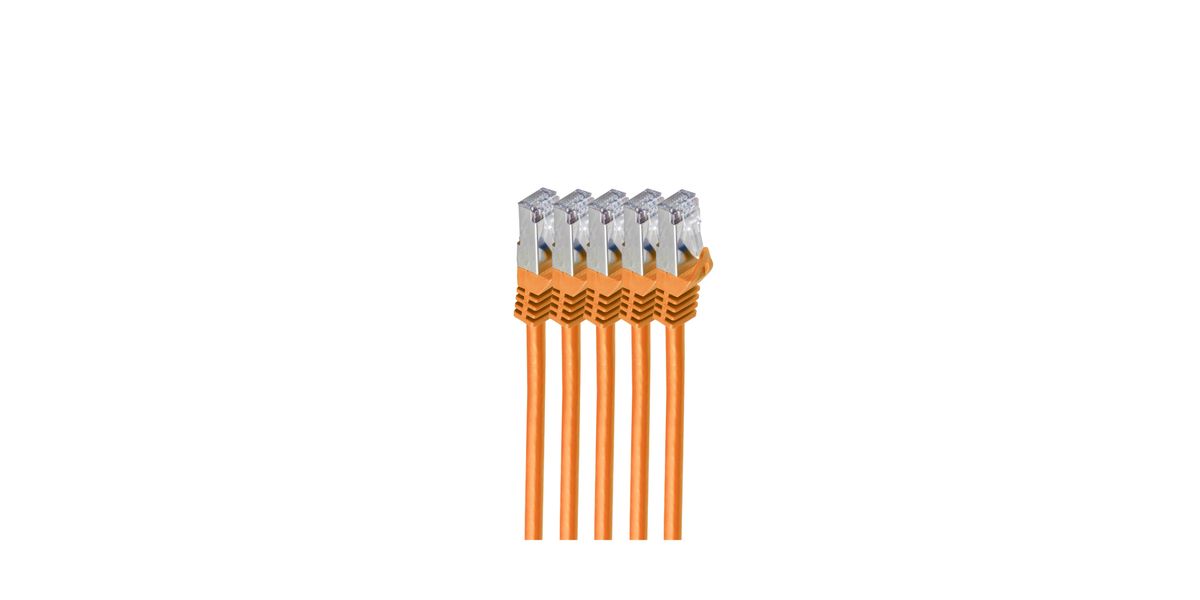

Shiverpeaks RJ45 Patch Cable S/FTP Cat7, 5 m, orange (MPN: BS75515-O-SET5, EAN: 4017538081605)

Description

Technical Specifications

• Brand
  Shiverpeaks
• Model / MPN
  BS75515-O-SET5
• EAN / Barcode
  4017538081605
• Type
  RJ45 to RJ45 patch cable (straight-through)
• Category / Class
  Cat7 (ISO/IEC 11801 Class F)
• Shielding
  S/FTP (foil per pair PiMF + overall braid)
• Length
  5 m
• Color
  Orange
• Conductor
  Stranded bare copper (flexible, typical 26 AWG stranded)
• Contacts
  Gold-plated RJ45 contacts (typical 30-50 µ")
• Connector count
  8(8) on both ends (RJ45)
• Wiring standard
  TIA/EIA 568B (1:1 pinout)
• Bandwidth / Frequency
  ~500-600 MHz (typical Cat7 patch cable)
• Data Rate
  Up to 10 Gbps (10GBase-T over 100 m)
• Impedance
  100 Ω (nominal)
• Support for PoE
  Yes (PoE, PoE+ and higher depending on infrastructure)
• Outer diameter
  Approx. 5.0–6.0 mm (typical for Cat7 S/FTP patch cords)
• Bending radius
  Recommended >32.5 mm
• Mating cycles
  ≥750 (typical for quality RJ45 plugs)
• Jacket material
  PVC, LSZH or TPE variants commonly available (this SKU shown in PVC/LSZH options)
• Operating temperature
  Approx. -20 °C to +75 °C (typical specification)
• Standards / Compliance
  ISO/IEC 11801 Class F, IEC 60603-7-51 (connector compatibility), TIA/EIA wiring
• Applications
  Data centers, offices, patch panels, high-interference environments, installations requiring shielded cabling
• Packaging note
  VE5 in product title may indicate a set/variant designation (5 m length or pack/set code)
