shiverpeaks BASIC-S Cat.7 S/FTP RJ45 patch cable, 5 m, black. S/FTP shielding (foil per pair + overall braid), 23 AWG stranded copper conductors, PUR halogen-free jacket, cable diameter ~6.0 mm. Rated for 500 MHz bandwidth (Cat.7/Class F), supports 10GBASE-T, Gigabit Ethernet, PoE. RJ45 8P8C...
More

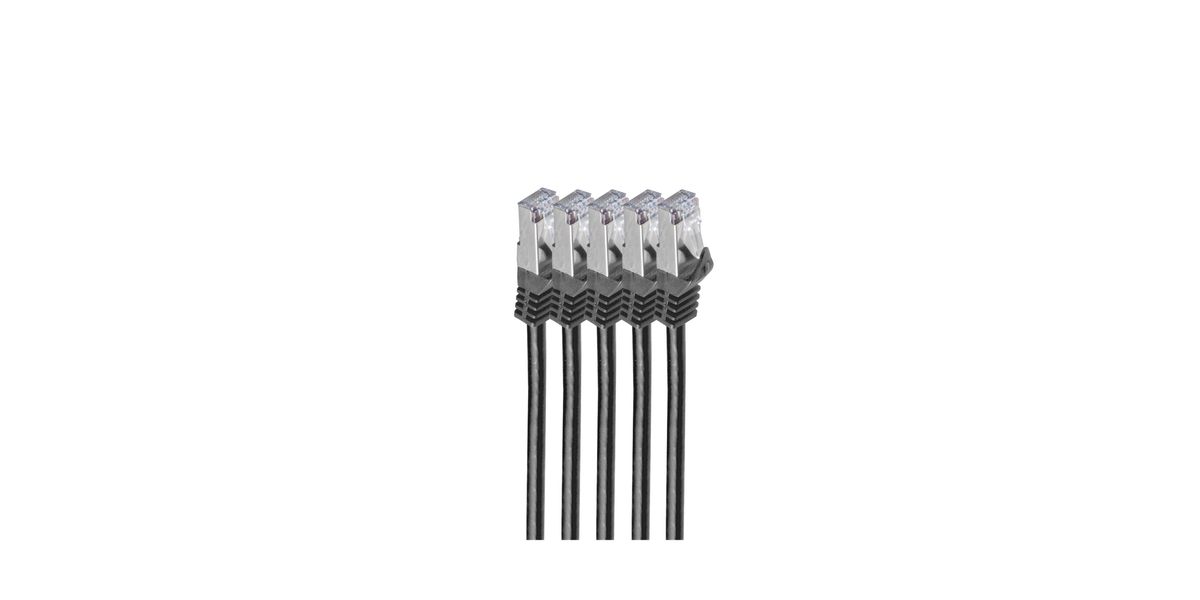

shiverpeaks RJ45 Patch Cable S/FTP Cat7, 5 m, black (BS75515-S-SET5)
Product Code: 1117581588
Available in 1 - 3 days
61,46 €
or
1,92€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
shiverpeaks BASIC-S Cat.7 S/FTP RJ45 patch cable, 5 m, black. S/FTP shielding (foil per pair + overall braid), 23 AWG stranded copper conductors, PUR halogen-free jacket, cable diameter ~6.0 mm. Rated for 500 MHz bandwidth (Cat.7/Class F), supports 10GBASE-T, Gigabit Ethernet, PoE. RJ45 8P8C connectors with gold-plated contacts, Cat.6a compatible wiring (TIA/EIA 568B), molded anti-kink sleeve and strain relief.
-
Brandshiverpeaks
-
Model / MPNBS75515-S-SET5
-
SKU581588
-
EAN4017538081803
-
Cable CategoryCat.7 (Class F / ISO/IEC 11801)
-
ShieldingS/FTP (foil per pair + overall braid)
-
Length5 m
-
ColorBlack
-
Conductor23 AWG stranded copper
-
Conductor Count4 twisted pairs
-
Cable Diameter~6.0 mm
-
Outer Jacket MaterialPUR (thermoplastic polyurethane), halogen-free
-
Impedance100 ±15 Ω
-
Bandwidth500 MHz (Cat.7 typical; supports up to 600 MHz per standard)
-
Data Rates Supported10GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T
-
PoE SupportYes
-
Connector TypeRJ45 (8P8C)
-
Connector CompatibilityCat.6a compatible
-
Contact PlatingGold-plated contacts (approx. 50 µ")
-
Pin Assignment1:1 straight-through (TIA/EIA 568B)
-
Contact Resistance~30 mΩ
-
Insulation Resistance≥100 MΩ
-
Test Voltage1000 V DC (1 min, core to core and core to screen)
-
Loop / Conductor ResistanceConductor DC Resistance ~142 Ω/km, Loop ~284 Ω/km
-
Mating Cycles≥750
-
Bending Radius>32.5 mm
-
Anti-kink / Strain ReliefMoulded anti-kink sleeve, locking lever present
-
Operating Temperature Range-20 °C to +75 °C
-
Material ComplianceHalogen-free, industrial-suitable PUR jacket
-
MarkersLength imprint on jacket
-
Typical ApplicationsStructured horizontal/backbone cabling, industrial environments, switch-to-device patching, environments with EMI concerns
Ratings
Description
shiverpeaks BASIC-S Cat.7 S/FTP RJ45 patch cable, 5 m, black. S/FTP shielding (foil per pair + overall braid), 23 AWG stranded copper conductors, PUR halogen-free jacket, cable diameter ~6.0 mm. Rated for 500 MHz bandwidth (Cat.7/Class F), supports 10GBASE-T, Gigabit Ethernet, PoE. RJ45 8P8C connectors with gold-plated contacts, Cat.6a compatible wiring (TIA/EIA 568B), molded anti-kink sleeve and strain relief.
Technical Specifications
-
Brandshiverpeaks
-
Model / MPNBS75515-S-SET5
-
SKU581588
-
EAN4017538081803
-
Cable CategoryCat.7 (Class F / ISO/IEC 11801)
-
ShieldingS/FTP (foil per pair + overall braid)
-
Length5 m
-
ColorBlack
-
Conductor23 AWG stranded copper
-
Conductor Count4 twisted pairs
-
Cable Diameter~6.0 mm
-
Outer Jacket MaterialPUR (thermoplastic polyurethane), halogen-free
-
Impedance100 ±15 Ω
-
Bandwidth500 MHz (Cat.7 typical; supports up to 600 MHz per standard)
-
Data Rates Supported10GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T
-
PoE SupportYes
-
Connector TypeRJ45 (8P8C)
-
Connector CompatibilityCat.6a compatible
-
Contact PlatingGold-plated contacts (approx. 50 µ")
-
Pin Assignment1:1 straight-through (TIA/EIA 568B)
-
Contact Resistance~30 mΩ
-
Insulation Resistance≥100 MΩ
-
Test Voltage1000 V DC (1 min, core to core and core to screen)
-
Loop / Conductor ResistanceConductor DC Resistance ~142 Ω/km, Loop ~284 Ω/km
-
Mating Cycles≥750
-
Bending Radius>32.5 mm
-
Anti-kink / Strain ReliefMoulded anti-kink sleeve, locking lever present
-
Operating Temperature Range-20 °C to +75 °C
-
Material ComplianceHalogen-free, industrial-suitable PUR jacket
-
MarkersLength imprint on jacket
-
Typical ApplicationsStructured horizontal/backbone cabling, industrial environments, switch-to-device patching, environments with EMI concerns
