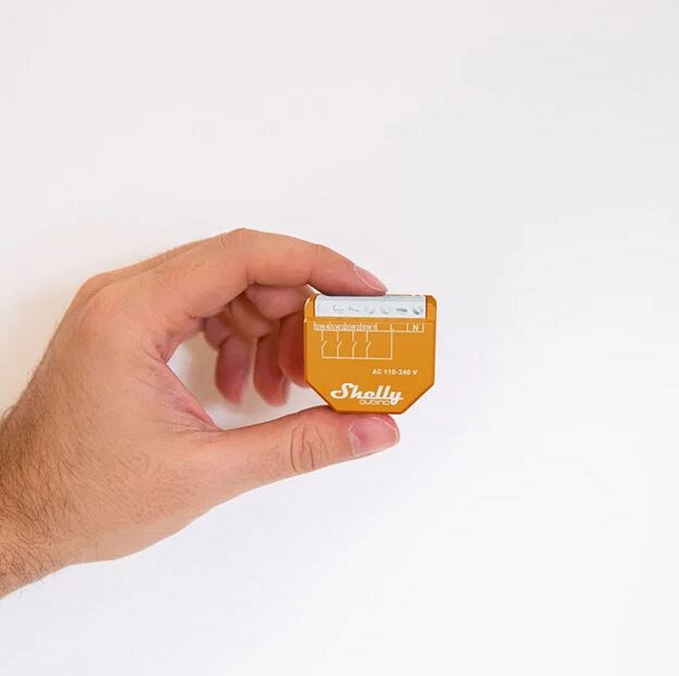

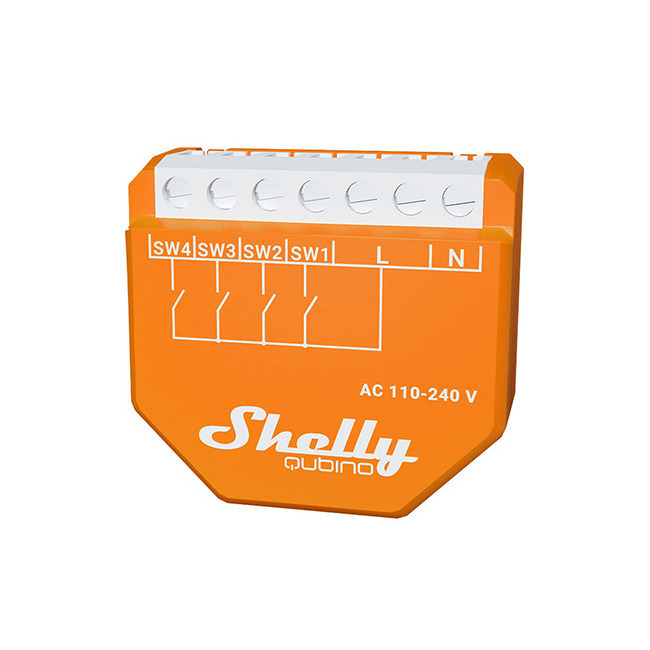

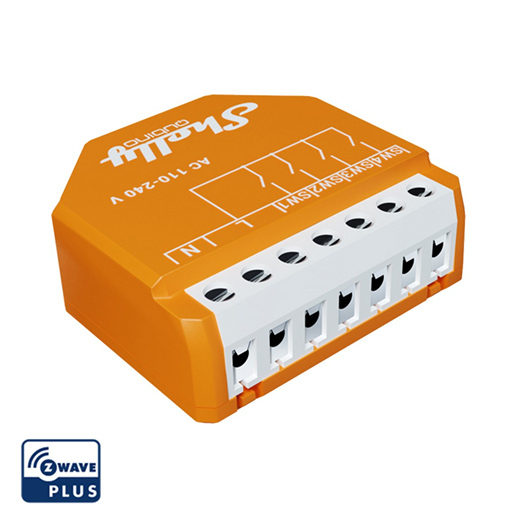

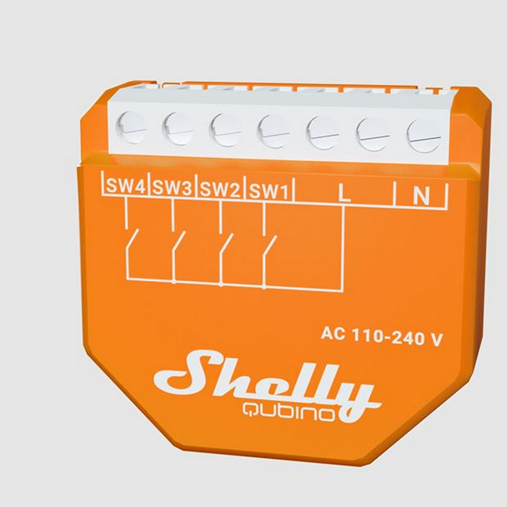

Shelly Wave i4 LR is a flush-mounted Z-Wave smart switch / controller with 4 digital inputs. It operates on Z-Wave 868.4 MHz (Z-Wave S800) and supports SmartStart and over-the-air firmware updates. The Wave i4 supports multi-click events (up to 12) and can be used to control Z-Wave devices and...
More
Shelly Wave i4 LR Z-Wave Flush-mounted Smart Switch (4 digital inputs)
Product Code: 1173704186
Available in 4 - 6 days
45,93 €
or
1,43€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 138 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Shelly Wave i4 LR is a flush-mounted Z-Wave smart switch / controller with 4 digital inputs. It operates on Z-Wave 868.4 MHz (Z-Wave S800) and supports SmartStart and over-the-air firmware updates. The Wave i4 supports multi-click events (up to 12) and can be used to control Z-Wave devices and scenes. Electrical: 110–240 V AC ±10% supply, maximum AC voltage 240 V, maximum AC current 10 A. Wiring: recommended wire cross-section 0.5–1.5 mm²; screw torque 0.4 Nm. Device dimensions: 37 x 42 x 16 mm (±0.5 mm). Weight: 29 g. Operating temperature: -20°C to 40°C; humidity: 30%–70% RH. Material: plastic. Color: black. Designed for flush (unterputz) installation.
-
BrandShelly
-
Model / MPNShelly_W_i4_LR
-
SKU21328721
-
EAN3800238072049
-
Product TypeFlush-mounted Z-Wave Smart Switch / Controller
-
Function4 digital inputs (controller for relays / lights), multi-click support
-
Wireless ProtocolZ-Wave (868.4 MHz CEPT)
-
Z-Wave SeriesZ-Wave 800 (S800)
-
SmartStartYes
-
Over-the-air (OTA) UpdatesYes
-
Multi-click EventsUp to 12 events
-
Dry ContactYes
-
Dimmer SupportNo (not a dimmer output)
-
Supply Voltage110–240 V AC ±10%
-
Maximum AC Voltage240 V
-
Maximum AC Current (per output)10 A
-
Recommended Wire Cross-section0.5–1.5 mm²
-
Screw Torque0.4 Nm
-
Mounting TypeFlush-mounted (Unterputz)
-
MaterialPlastic
-
ColorBlack
-
Dimensions (W x L x H)37 mm x 42 mm x 16 mm ±0.5 mm
-
Weight29 g
-
Operating Temperature-20°C to 40°C
-
Operating Humidity30% to 70% RH
-
Wireless Range2000 m (line of sight)
-
Package Quantity1
Ratings
Description
Shelly Wave i4 LR is a flush-mounted Z-Wave smart switch / controller with 4 digital inputs. It operates on Z-Wave 868.4 MHz (Z-Wave S800) and supports SmartStart and over-the-air firmware updates. The Wave i4 supports multi-click events (up to 12) and can be used to control Z-Wave devices and scenes. Electrical: 110–240 V AC ±10% supply, maximum AC voltage 240 V, maximum AC current 10 A. Wiring: recommended wire cross-section 0.5–1.5 mm²; screw torque 0.4 Nm. Device dimensions: 37 x 42 x 16 mm (±0.5 mm). Weight: 29 g. Operating temperature: -20°C to 40°C; humidity: 30%–70% RH. Material: plastic. Color: black. Designed for flush (unterputz) installation.
Technical Specifications
-
BrandShelly
-
Model / MPNShelly_W_i4_LR
-
SKU21328721
-
EAN3800238072049
-
Product TypeFlush-mounted Z-Wave Smart Switch / Controller
-
Function4 digital inputs (controller for relays / lights), multi-click support
-
Wireless ProtocolZ-Wave (868.4 MHz CEPT)
-
Z-Wave SeriesZ-Wave 800 (S800)
-
SmartStartYes
-
Over-the-air (OTA) UpdatesYes
-
Multi-click EventsUp to 12 events
-
Dry ContactYes
-
Dimmer SupportNo (not a dimmer output)
-
Supply Voltage110–240 V AC ±10%
-
Maximum AC Voltage240 V
-
Maximum AC Current (per output)10 A
-
Recommended Wire Cross-section0.5–1.5 mm²
-
Screw Torque0.4 Nm
-
Mounting TypeFlush-mounted (Unterputz)
-
MaterialPlastic
-
ColorBlack
-
Dimensions (W x L x H)37 mm x 42 mm x 16 mm ±0.5 mm
-
Weight29 g
-
Operating Temperature-20°C to 40°C
-
Operating Humidity30% to 70% RH
-
Wireless Range2000 m (line of sight)
-
Package Quantity1
