The Shelly Analog 0-30V Add-on is an analog input accessory designed for the Shelly The Pill (5-Terminal Add-on compatible) to measure DC voltages up to 30 V. It supports common battery voltages (4.2 V, 12 V, 24 V) and analog signals in the 0–5 V range. Connects to IO2 and IO3 on Shelly The Pill...
More

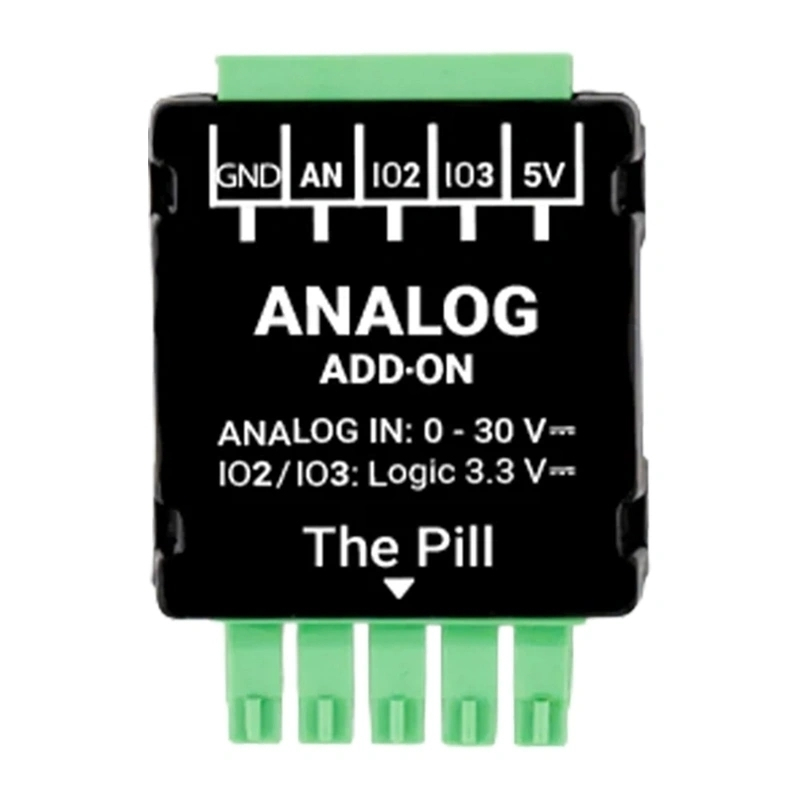

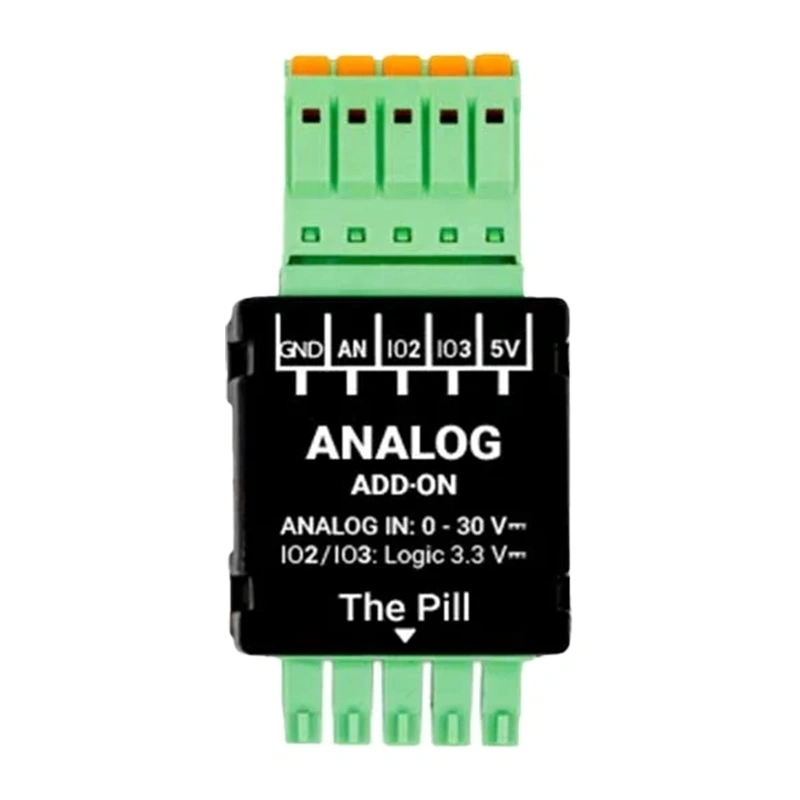

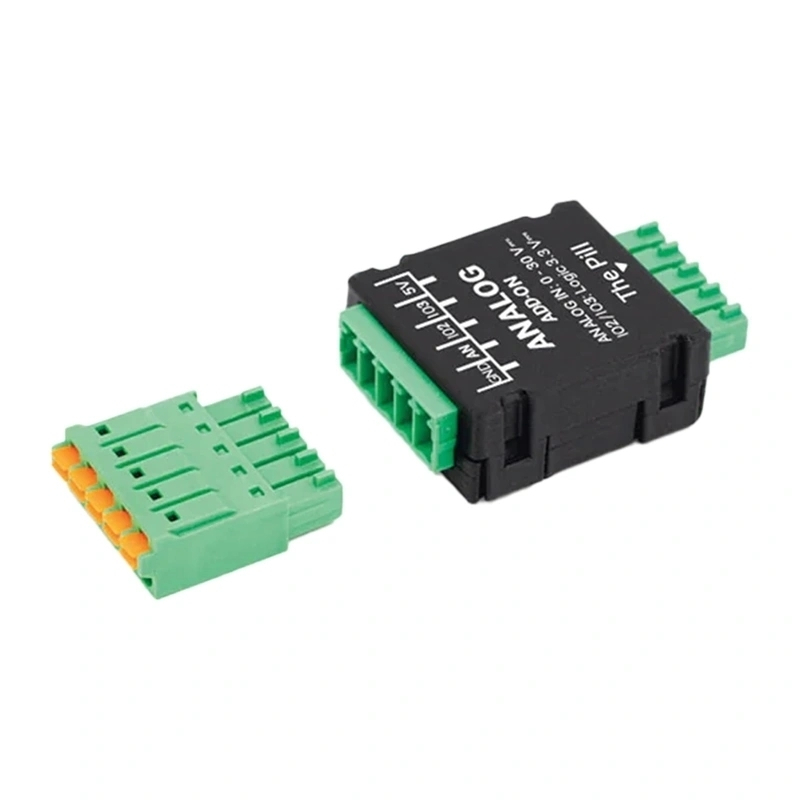

Shelly Analog 0-30V Add-on (for Shelly The Pill)
Product Code: 1167724504
Available in 4 - 6 days
13,25 €
With the purchase of this product you earn 40 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Shelly Analog 0-30V Add-on is an analog input accessory designed for the Shelly The Pill (5-Terminal Add-on compatible) to measure DC voltages up to 30 V. It supports common battery voltages (4.2 V, 12 V, 24 V) and analog signals in the 0–5 V range. Connects to IO2 and IO3 on Shelly The Pill and uses 3.3 V logic levels. Measurement accuracy is ±(2% + 5 digits). Operating current is approximately 20 mA and the module measurement/supply voltage is 3.3 V. Physical dimensions are 36.5 × 26.5 × 11.5 mm, weight ~8 g. Operating temperature range: 0°C to 40°C; storage: -20°C to 40°C; humidity 30–70% RH; maximum operating altitude 2000 m.
-
BrandShelly
-
Model / MPNAnalog 0 - 30V Add-on
-
Compatible deviceShelly The Pill (5-Terminal Add-on)
-
Measurement range (DC)0–30 V
-
Supported battery voltages4.2 V, 12 V, 24 V
-
Analog input range0–5 V (for external analog signals)
-
Measurement accuracy±(2% + 5 digits)
-
Logic level (GPIO)3.3 V
-
Low threshold (digital input)2.48 V (LOW)
-
Measurement / supply voltage3.3 V
-
Quiescent / operating current20 mA
-
Operating temperature0°C to 40°C
-
Storage temperature-20°C to 40°C
-
Operating humidity30% to 70% RH
-
Maximum operating altitude2000 m
-
Dimensions (L×W×H)36.5 × 26.5 × 11.5 mm
-
Weight8 g
-
CategoryΡελέ Ράγας / Analog Add-on
Ratings
Description
The Shelly Analog 0-30V Add-on is an analog input accessory designed for the Shelly The Pill (5-Terminal Add-on compatible) to measure DC voltages up to 30 V. It supports common battery voltages (4.2 V, 12 V, 24 V) and analog signals in the 0–5 V range. Connects to IO2 and IO3 on Shelly The Pill and uses 3.3 V logic levels. Measurement accuracy is ±(2% + 5 digits). Operating current is approximately 20 mA and the module measurement/supply voltage is 3.3 V. Physical dimensions are 36.5 × 26.5 × 11.5 mm, weight ~8 g. Operating temperature range: 0°C to 40°C; storage: -20°C to 40°C; humidity 30–70% RH; maximum operating altitude 2000 m.
Technical Specifications
-
BrandShelly
-
Model / MPNAnalog 0 - 30V Add-on
-
Compatible deviceShelly The Pill (5-Terminal Add-on)
-
Measurement range (DC)0–30 V
-
Supported battery voltages4.2 V, 12 V, 24 V
-
Analog input range0–5 V (for external analog signals)
-
Measurement accuracy±(2% + 5 digits)
-
Logic level (GPIO)3.3 V
-
Low threshold (digital input)2.48 V (LOW)
-
Measurement / supply voltage3.3 V
-
Quiescent / operating current20 mA
-
Operating temperature0°C to 40°C
-
Storage temperature-20°C to 40°C
-
Operating humidity30% to 70% RH
-
Maximum operating altitude2000 m
-
Dimensions (L×W×H)36.5 × 26.5 × 11.5 mm
-
Weight8 g
-
CategoryΡελέ Ράγας / Analog Add-on
